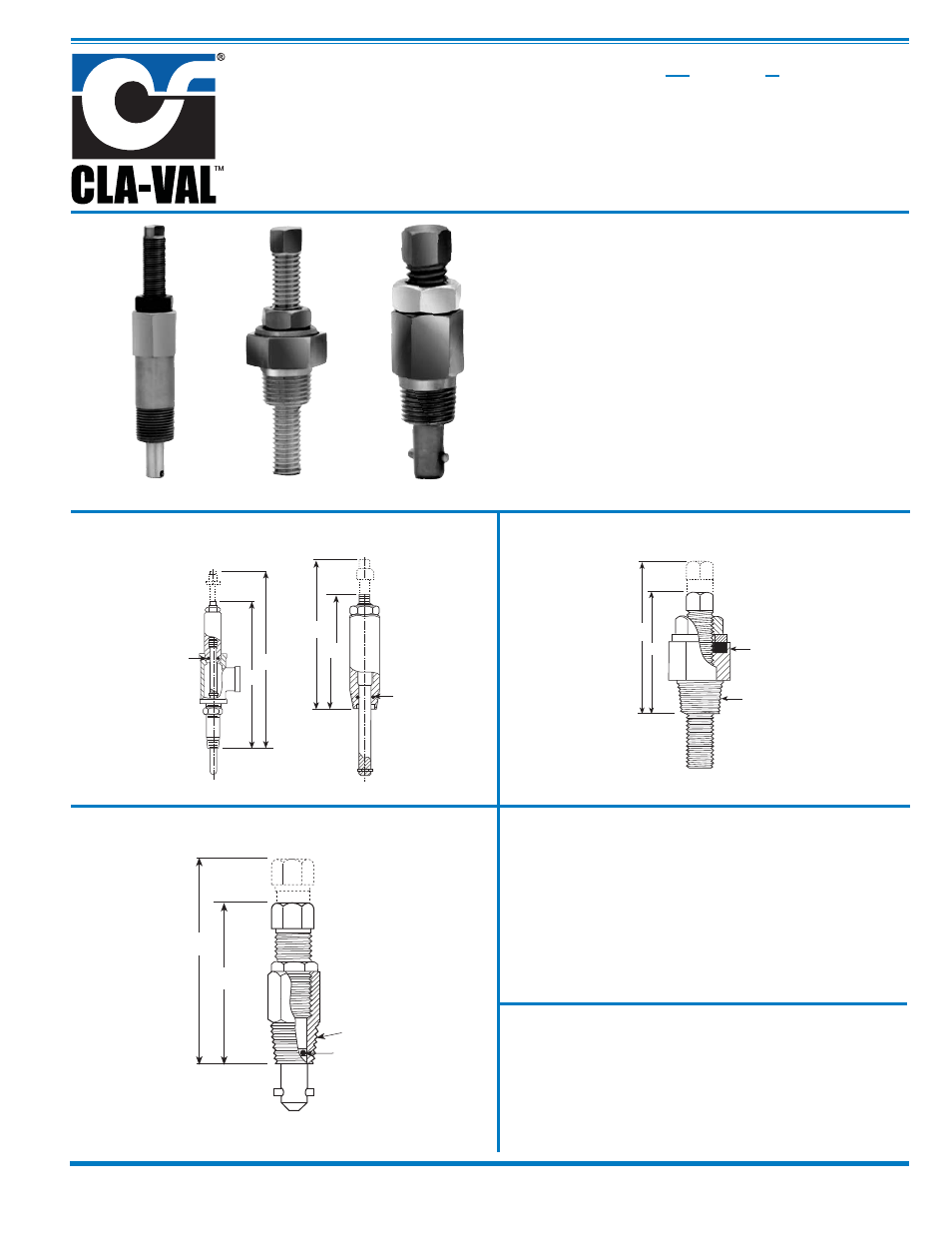

Cla-Val X102 - Manual

Specifications
X102A
X102A X102B
When Ordering, Please Specify
• Automatic Operation
• Corrosion Resistant
• No Lubrication
• Easy Adjustment
• Easy Maintenance
The Cla-Val Model X102 Flow Limiting Assemblies regulate
flow through Cla-Val Automatic Valves from full flow to shut-off.
These adjustable assemblies control flow by limiting the
amount of the valve opening.
The X102A and X102D maintain a pressure seal during adjust-
ment by means of an internal “O” Ring.
The X102B is pressure sealed by means of an external
resilient washer, compressed when the Jam Nut is tightened,
after adjustment.
Maximum
Minimum
3.56
4.69
"O" Ring
Seal
Maximum
Minimum
8.22
11.84
"O" Ring
Seal
1/2”, 3/4”, 1” Sizes 1-1/4” - 10” Sizes
X102D
X102D
Maximum
2.56"
"O" Ring
Seal
Minimum
2.19"
3/8" NPT
1" 7100 Series Valves
Maximum
Minimum
4"
2"
Buna-N
Washer
Seal
1/2" NPT
1 1/4" - 3" 7100 Series Valves
Pressure Ratings:
Valves 1/2" through 3" ................................150 psi maximum
Valves 4" and 6" ...........................................100 psi maximum
Valves 8" .........................................................30 psi maximum
Valves 10" .......................................................20 psi maximum
Materials:
Body (all models) .............................................................Brass
Stem X102A ...............................................303 Stainless Steel
X102B .....................................................................Brass
X102D.....................................................................Brass
When ordering please specify the following
information:
1. Flow Limiting Assembly Catalog Number
2. Valve Catalog Number
3. Valve Size
Flow Limiting Assembly
& Pilot System Components
X102B
X102
MODEL
CLA-VAL
Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice.
P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: 949-722-4800 • Fax: 949-548-5441 • E-mail: [email protected] • Website cla-val.com
©
E-X102 (R-3/2011)
