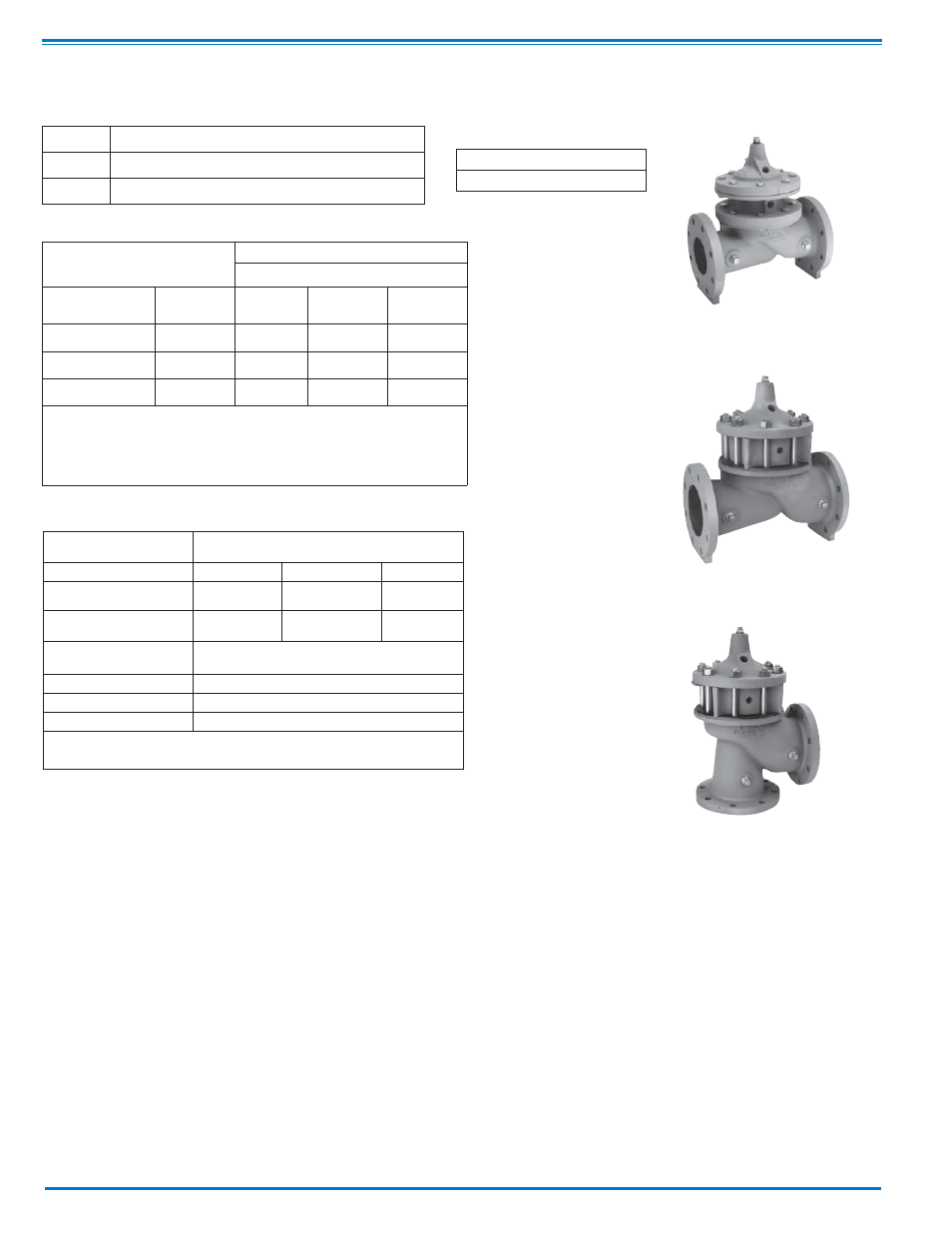

Specifications
4" Globe, Flanged
6" Globe, Flanged
6" Angle, Flanged
Options
Epoxy Coating - suffix KC
An FDA approved fusion bonded epoxy
coating for use with cast iron, ductile iron
or steel valves. This coating is resistant to
various water conditions, certain acids,
chemicals, solvents and alkalies. Epoxy
coatings are applied in accordance with
AWWA coating specifications C116-03.
Do not use with temperatures above 175°F.
Viton ® Rubber Parts - suffix KB
Optional diaphragm, disc and o-ring
fabricated with Viton
® synthetic rubber.
Viton ® is well suited for use with mineral
acids, salt solutions, chlorinated
hydrocarbons, and petroleum oils; and is
primarily used in high temperature
applications up to 250° F. Do not use with
epoxy coating above 175°F.
Heavy Spring - suffix KH
The heavy spring option is used in
applications where there is low differential
pressure across the valve, and the
additional spring force is needed to help
the valve close. This option is best suited
for valves used in on-off (non-modulating)
service.
For assistance in selecting appropriate
valve options or valves manufactured
with special design requirements,
please contact our Regional Sales
Office or Factory.
Model 100 -21
Operating Temp. Range
Fluids
-40° to 180° F
Component Standard Material Combinations
Body & Cover Ductile Iron Cast Steel Bronze
Available Sizes 3" - 30" 3" - 16" 3" - 16"
Disc Retainer &
Diaphragm Washer
Cast Iron Cast Steel Bronze
Trim: Disc Guide,
Seat & Cover Bearing Bronze is Standard
Stainless Steel is optional
Disc Buna-N ® Rubber
Diaphragm Nylon Reinforced Buna-N ® Rubber
Stem, Nut & Spring Stainless Steel
For material options on sizes not listed, consult factory.
Cla-Val manufactures valves in more than 50 different alloys.
Materials
Available Sizes
Pattern Flanged
Globe 3", 4", 6", 8", 10", 12", 14", 16", 18", 20", 24", 30"
Angle 4", 6", 8"
Pressure Ratings (Recommended Maximum Pressure - psi)
Valve Body & Cover
Pressure Class
Flanged
Grade Material
ANSI
Standards*
150
Class
300
Class
ASTM A536 Ductile Iron B16.42 250 400
ASTM A216-WCB Cast Steel B16.5 285 400
ASTM B62 Bronze B16.24 225 400
Note: * ANSI standards are for flange dimensions only.
Flanged valves are available faced but not drilled.
Valves for higher pressure are available; consult factory for details
