Cla-Val CF1-C1 - Manual (Page 2)

13
18
12
11
15
16
17
14
9
10
8
7
5
4
2
1
7
8
OPERATION
FLOAT POSITION PORT 1 PORT 2
Up Pressure To Drain
Down To Drain Pressure
Float Control
CF1-C1
19
4
5
6
8
3
Float
Rod
Assembly
Pilot &
Bracket
Assembly
7
9
10
7
8
CLA-VAL
Copyright Cla-Val 2013 Printed in USA Specifications subject to change without notice.
P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: 949-722-4800 • Fax: 949-548-5441 • E-mail: [email protected] • Website cla-val.com
©
PL-CF1-C1 (R-05/2013)

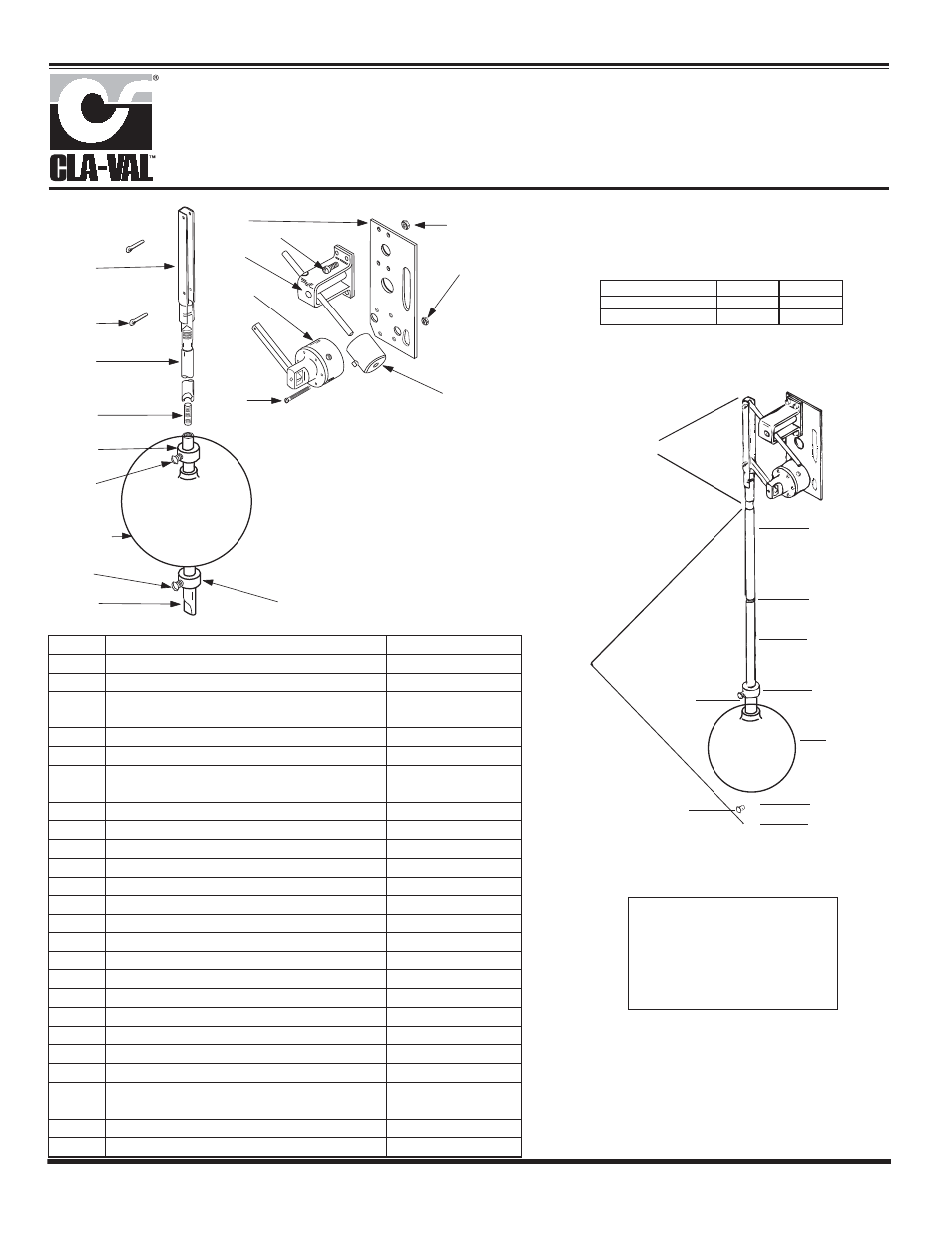

PARTS LIST
NOTE:
1. A stilling well (Min. 8" I.D.) must be provided
around the float.
2. Inspect float and float assembly periodically.
ITEM DESCRIPTION PART No.
1 Link Assembly, BRS V8316B
2 Cotter Pins (2 required) 20175227D
3
Float Rod Assembly (2 ft.)
(Item No. 4 thru 9), PVC
8829902K
4 Upper Float Rod (1 ft.), PVC 88298F
Upper Float Road (2 ft.) PVC Consult Factory
5
Stud (Required for connecting upper and lower
rods and on for each extension rod), BRS
88264H
6 Extension Float Rod (1 ft.), PVC 88297H
Extension Float Rod (2 ft.), PVC Consult Factory
7 Stop Collar (2 required), PVC 38097C
8 Set Screw (1 for ea Stop Collar), SS 6798837J
9 Lower Float Rod (1 ft.) 88292J
Lower Float Rod (2 ft.) Consult Factory
10 Float Ball Stainless Steel (Standard) C0648A
10 Float Ball, Plastic (Optional) Consult Factory C9253A
11 Base and Mounting Plate (316) V6369A
12 Pilot Valve Assembly CF1-C1 10529G
13 Machine Screw 6/32 x 1-1/2” (6 req’d) 6757530J
14 Hex Nut 6/32 (6 req’d) 678206K
15 Counter Balance Bracket Assembly, BRS 45569B
16 Machine Screw 10/32 x 9/16” (4 req’d) 6757822K
17 Hex Nut 10/32 (4 req’d) 6779506C
18
Counterweight (varies with rod length, includes
set screw), Steel, Zinc Plated - Consult Factory 1-5’ PVC Rod
20160501C
19 Pilot & Bracket Assembly CF1-C1, Std Material 89016A
(Less Ball, Rod & Counterweight)
When ordering parts,
please specify:
• All nameplate data
• Description
• Item Number
