Options
Heavy Spring - suffix KH
The heavy spring option is used in applications
where there is low differential pressure across the
valve, and the additional spring force is needed to
help the valve close. The option is best suited for
valves used in on-off (non-modulating) service.
For assistance in selecting appropriate valve
options or valves manufactured with special
design requirements, please contact our
Regional Sales Office or Factory.
Operating Temp. Range Available Sizes
Specifications Model 100-02
Epoxy Coating - suffix KC
This option NSF 61 Listed and FDA approved,
fusion bonded epoxy coating is for use with cast
iron, ductile iron or steel valves. This coating is
resistant to various water conditions, certain
acids, chemicals, solvents and alkalies. Epoxy
coatings are applied in accordance with AWWA
coating specifications C116-03.
Do not use with temperatures above 175° F
Viton® Rubber Parts - suffix KB
Optional diaphragm, disc and o-ring fabricated
with Viton
® synthetic rubber. Viton ® is well suited
for use with mineral acids, salt solutions,
chlorinated hydrocarbons, and petroleum oils;
and is primarily used in high temperature
applications up to 250° F. Do not use with epoxy
coating above 175°F.
Component Standard Material Combinations
Body & Cover Ductile Iron Cast Steel Bronze
Available Sizes 1 1 ⁄
4
" - 24" 1 1 ⁄
4
" - 16" 1 1 ⁄
4
" - 16"
Disc Retainer &
Diaphragm Washer
Cast Iron Cast Steel Bronze
Trim: Disc Guide,
Seat & Cover Bearing Bronze is Standard
Stainless Steel is Optional
Disc Buna-N ® Rubber
Diaphragm Nylon Reinforced Buna-N ® Rubber
Stem, Nut & Spring Stainless Steel
For material options not listed, consult factory.
Cla-Val manufactures valves in more than 50 different alloys.
Materials

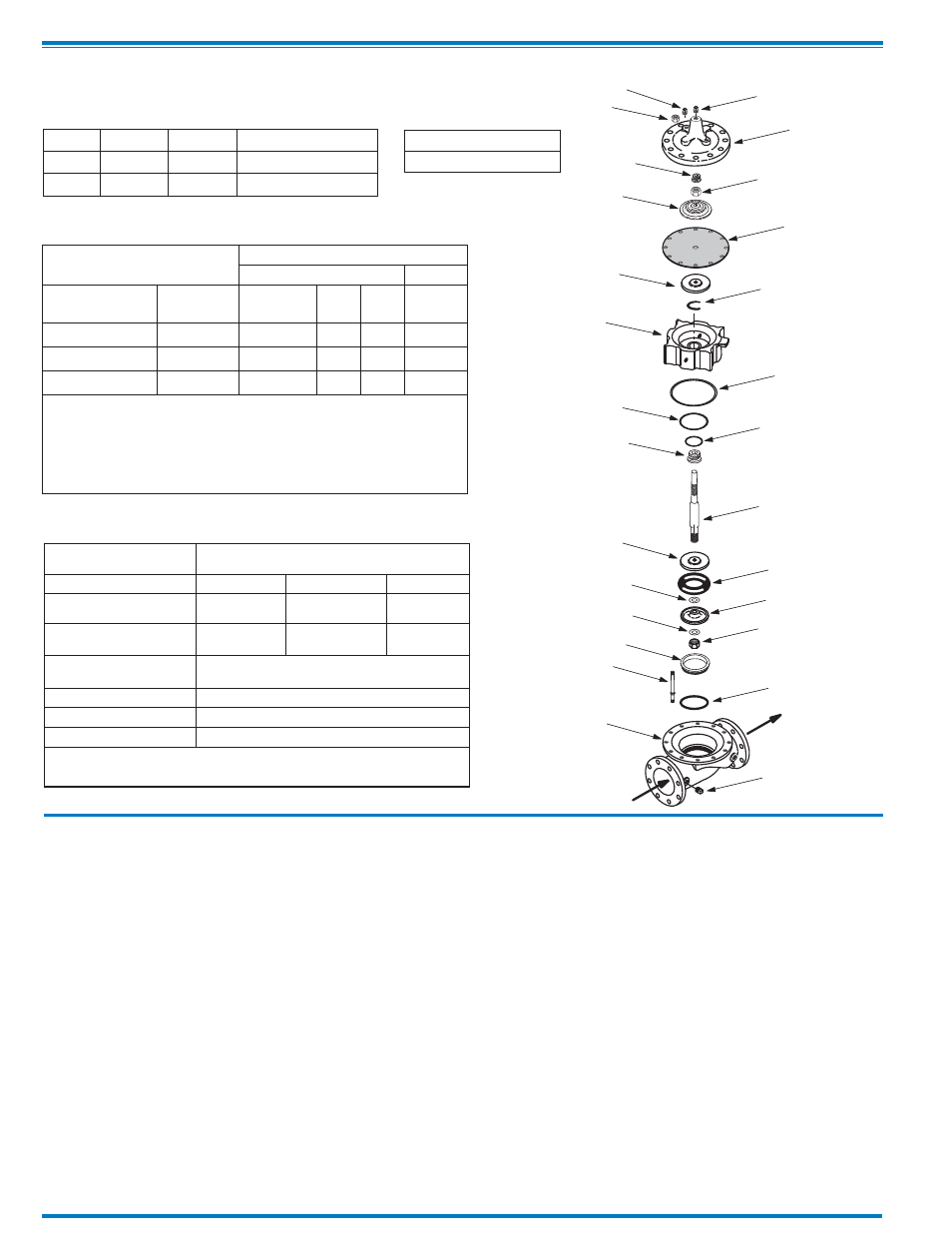

PIPE PLUG
OUTLET
SEAT-O-RING
LOWER STEM NUT
DISC GUIDE
STEM
DISC
DISC RETAINER
WASHER SPACER
LOCK WASHER
SEAT
STUD/BOLT
BODY
O-RING
SEAL GASKET
POWERUNIT BEARING
O-RING
POWERUNIT BODY
PIPE PLUG
HEX NUT
BEARING COVER
UPPER DIAPHRAGM
WASHER
LOWER DIAPHRAGM
WASHER
INLET
RETAINING RING
DIAPHRAGM
UPPER STEM NUT
COVER
PIPE PLUG
Pattern Threaded Flanged Grooved End
Globe 3 ⁄
8
" - 3" 1 1 ⁄
2
" - 24" 1 1 ⁄
2
"-2"- 2 1 ⁄
2
"- 3"- 4"- 6"- 8"
Angle 1 1 ⁄
2
" - 3" 2" - 16" 2" - 3" - 4"
Fluids
-40° to 180° F
For assistance in selecting appropriate valve options or valves manufactured with special design requirements, please contact
our Regional Sales Office or Factory.
Valve Body & Cover
Pressure Class
Flanged Threaded
Grade Material
ANSI
Standards*
150
Class
300†
Class
End‡
Details
ASTM A536 Ductile Iron B16.42 250 400 400
ASTM A216-WCB Cast Steel B16.5 285 400 400
ASTM B62 Bronze B16.24 225 400 400
Note: * ANSI standards are for flange dimensions only.
Flanged valves are available faced but not drilled.
‡ End Details machined to ANSI B2.1 specifications.
† Consult factory when Maximum Operating Pressure
Differential (MOPD) is greater than 400 PSID
“Valves for higher pressure are available; consult factory for details”
Pressure Ratings (Recommended Maximum Pressure - psi)
