When Ordering, Please Specify
1. Valve Size
2. Catalog No. X101
3. Valve Series No. (Appears on Valve Nameplate)
4. Optional Material
Stainless Steel
A
Vent Valve
Closed
B
NPT
Sight Tube
Stem
Gasket
Adapter
Bushing
Valve Cover
Stem Adapter
Valve Stem
Housing
Gasket
Vent Valve

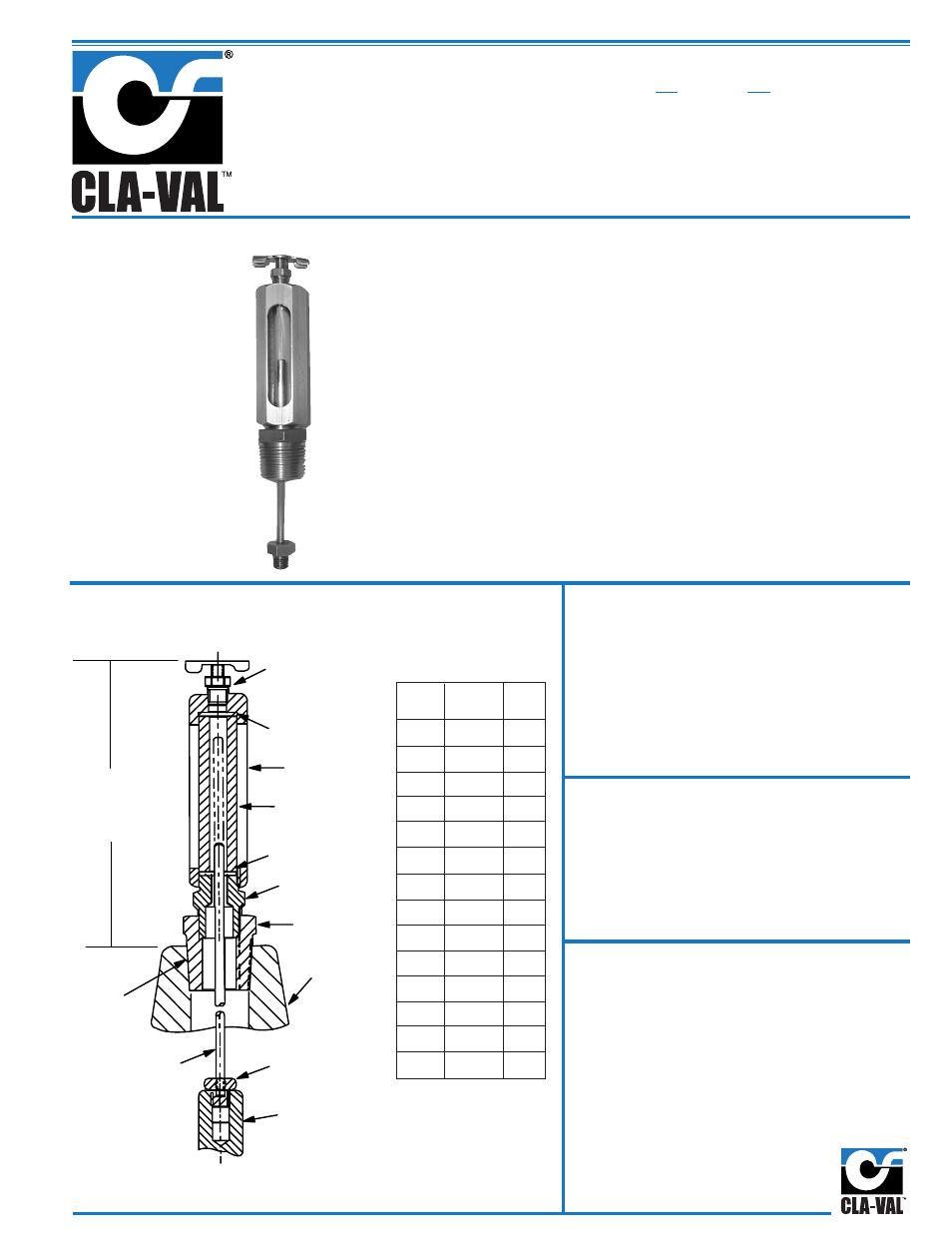

X101
MODEL
Valve Position Indicator
& Pilot System Components
Dimensions Specifications
Installation
Dimension "A" is height added to valve by indicator assembly
Can be installed on any Cla-Val basic main
valve in a few minutes. Simply replace the
fitting on top of the valve cover with the
indicator assembly.
Sizes: 1" thru 24"
Materials: Brass, Pyrex Tube
Pressure Rating: 400 psi
Optional Material: Stainless Steel
• Positive Visual Indicator
• Frictionless
• Leak Proof
• Easy Maintenance and Cleaning
• Protected Indicator Rod
The Cla-Val Model X101 Visual Position Indicator is designed to
display Cla-Val valve position quickly and easily. A solid brass
indicator rod fastened directly to the valve stem moves up and down
inside a pyrex tube. The tube is contained within a brass housing
which is open on two opposite sides to permit clear vision of the
indicator rod.
To purge air that may be trapped in the valve cover, a vent valve in the
top of the housing is provided. Model X101 valve position indicator is
furnished complete for installation on specified size Cla-Val Automatic
Control Valve.
VALVE A B
SIZE INCHES NPT
1" 5.88 1/4"
1 1/4 " 3.21 1/4"
1 1/2 " 3.21 1/4"
2" 3.33 1/2"
2 1/2 " 3.33 1/2"
3" 3.33 1/2"
4" 4.52 3⁄4"
6" 4.52 3⁄4"
8" 5.83 1 "
10" 7.70 1 "
12" 8.20 1 1/4"
14" 8.20 1 1/2"
16" 10.81 2 "
24" 12.04 1"
