When ordering parts,
please specify:
• All nameplate data
• Item Number
• Description

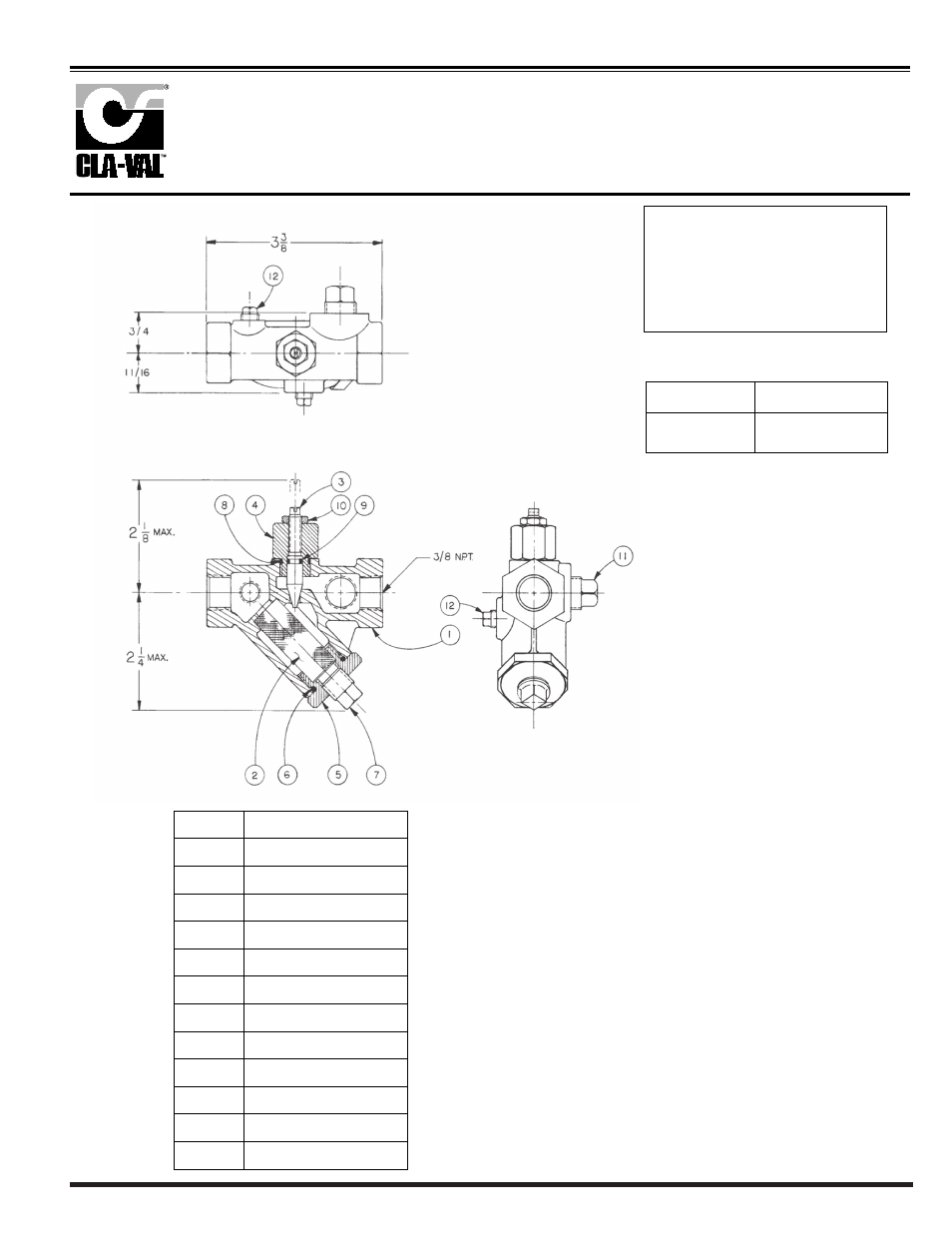

Strainer and Needle Valve Assembly
X42N-3
Size Material
3/8" x 3/8 Bronze
CLA-VAL
Copyright Cla-Val 2005 Printed in USA Specifications subject to change without notice.
P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: 949-722-4800 • Fax: 949-548-5441 • E-mail: [email protected] • Website cla-val.com
©
PL- X42N-3
PARTS LIST
ITEM DESCRIPTION
1 Body
2 Screen
3 Stem
4 Bonnet
5 Strainer Plug
6 "O" Ring - Plug
7 Plug - Pipe 1/4
8 "O" Ring - Bonnet
9 "O" Ring - Stem
10 Nut, Hex Jam
11 Plug - Pipe 3/8
12 Plug - Plpe 1/8
