Extron • VTG 150 & VTG 200 • User’s Manual
3
Chapter Three
Operating the Video Test Generator
Operating the Video Test Generator
Extron VTG 150 & VTG 200
User’s Manual
Connecting the VTG Output Cables
Page 2-5

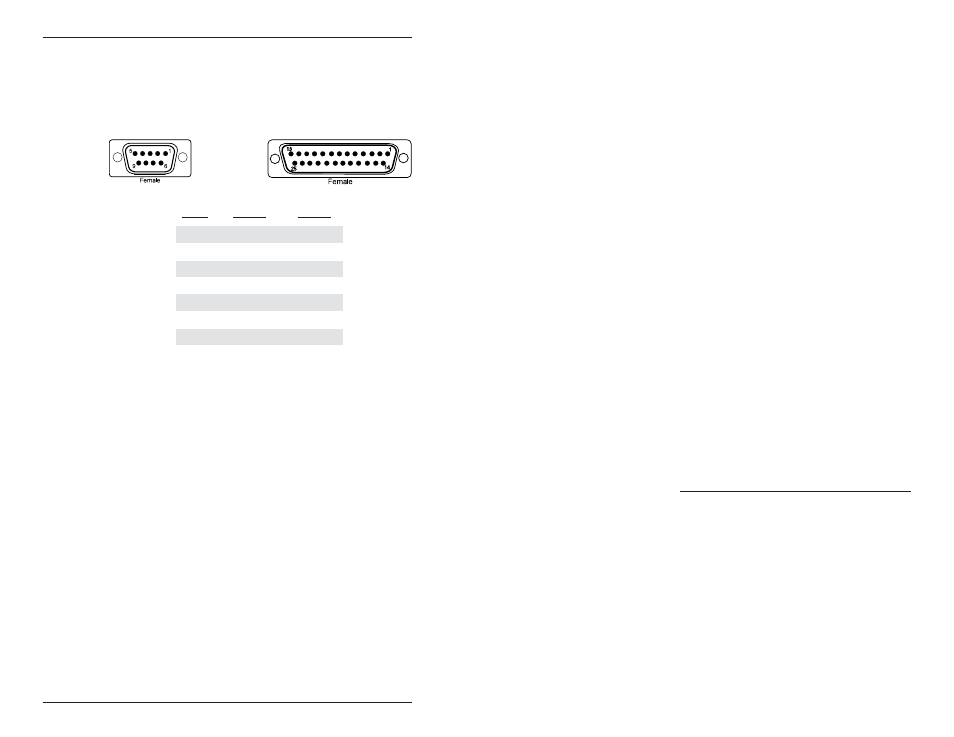

Connecting TTL Output to an AT&T 6300
When using the VTG 150 TTL output with an AT&T 6300
monitor, an adapter cable is needed with the following
configuration:
9-pin Signal 25-Pin
1 Ground 14 & 15
3 Red 4
4 Green 5
5 Blue 6
6 Intensity 7
8 H Sync 1
9 V Sync 3
