SW VGArs / Ars Series Switchers • Installation

Installation, cont’d

SW VGArs / Ars Series Switchers

3

Chapter Three

Operation

Front Panel Controls and Indicators

Front Panel Operations

Configuring the switcher

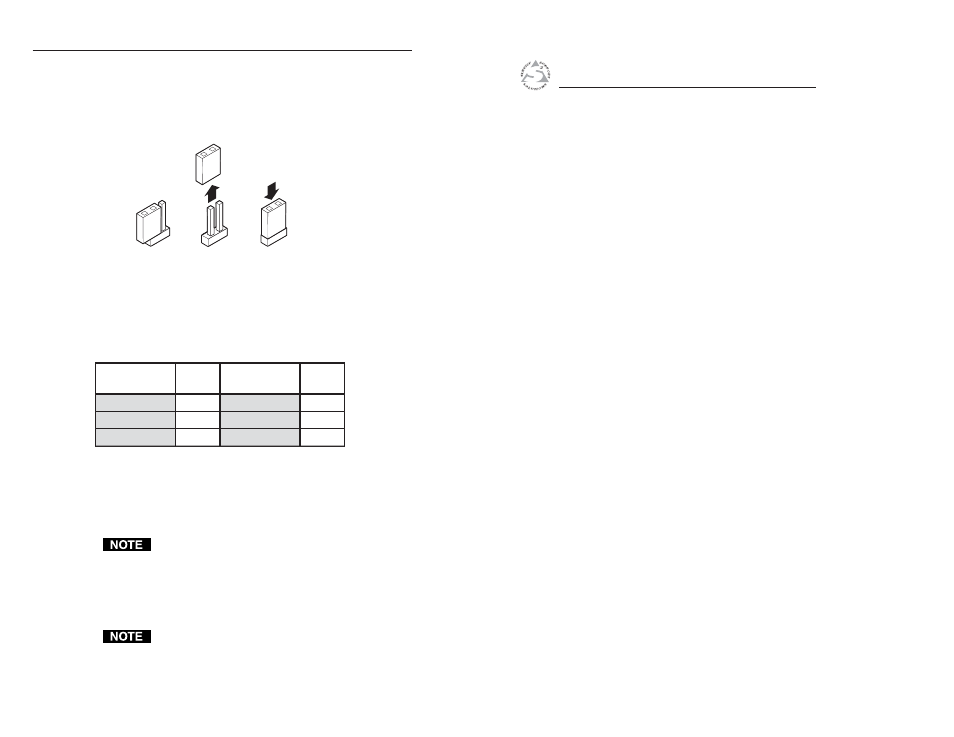

There are six jumpers on the circuit board, numbered JMP5,

JMP7, JMP9, JMP11, JMP 13, and JMP15, that control connection

with one or more VSW I AAP control panels (figure 2-9 and

figure 2-10).

OPEN

CLOSED

All jumpers are set open (removed) by default.
The jumpers in the table below must be set closed
(installed) when a VSW I AAP is connected to the
associated input.

Close the indicated jumpers in the table below
to adjust the appropriate settings.

Jumper

Input 1

Input 2

Input 3

JMP5

JMP7

JMP9

Jumper

VSW I AAP

connected to:

VSW I AAP

connected to:

Input 4

Input 5

Input 6

JMP11

JMP13

JMP15

Figure 2-10 — Jumper positions vs. VSW I AAP
input connections

These jumpers enable/disable VGA connector pin 5 (control) for

each input. Close (install) the jumper for a specific VGA input

to allow the VSW I AAP’s “show me” signal to select that input.

When an input is not connected via a VSW I AAP, that
input’s jumper should be in the default (open) position.

Each jumper, when closed (installed) allows the switcher to

receive the “show me” signal from the VSW I AAP on that

input’s VGA connector. When a jumper is open (removed) that

input cannot receive the signal.

Auto switch mode must be disabled when using the
switcher with one or more VSW I AAP remote controls.
If the auto switch mode is enabled, the input cannot be
selected using the “show me” function.

2-12
