Operation, cont’d
CrossPoint 300 Matrix Switchers • Operation 3-22
4 . Press and release the Enter button (figure 3-36). The current configuration is
now stored in memory location 17.
ENTER PRESET VIEW ESC
CONTROL
The Enter and Preset LEDs
return to the unlit state.
Press the Enter button to
save the preset.
All input LEDs
return to the
unlit state.

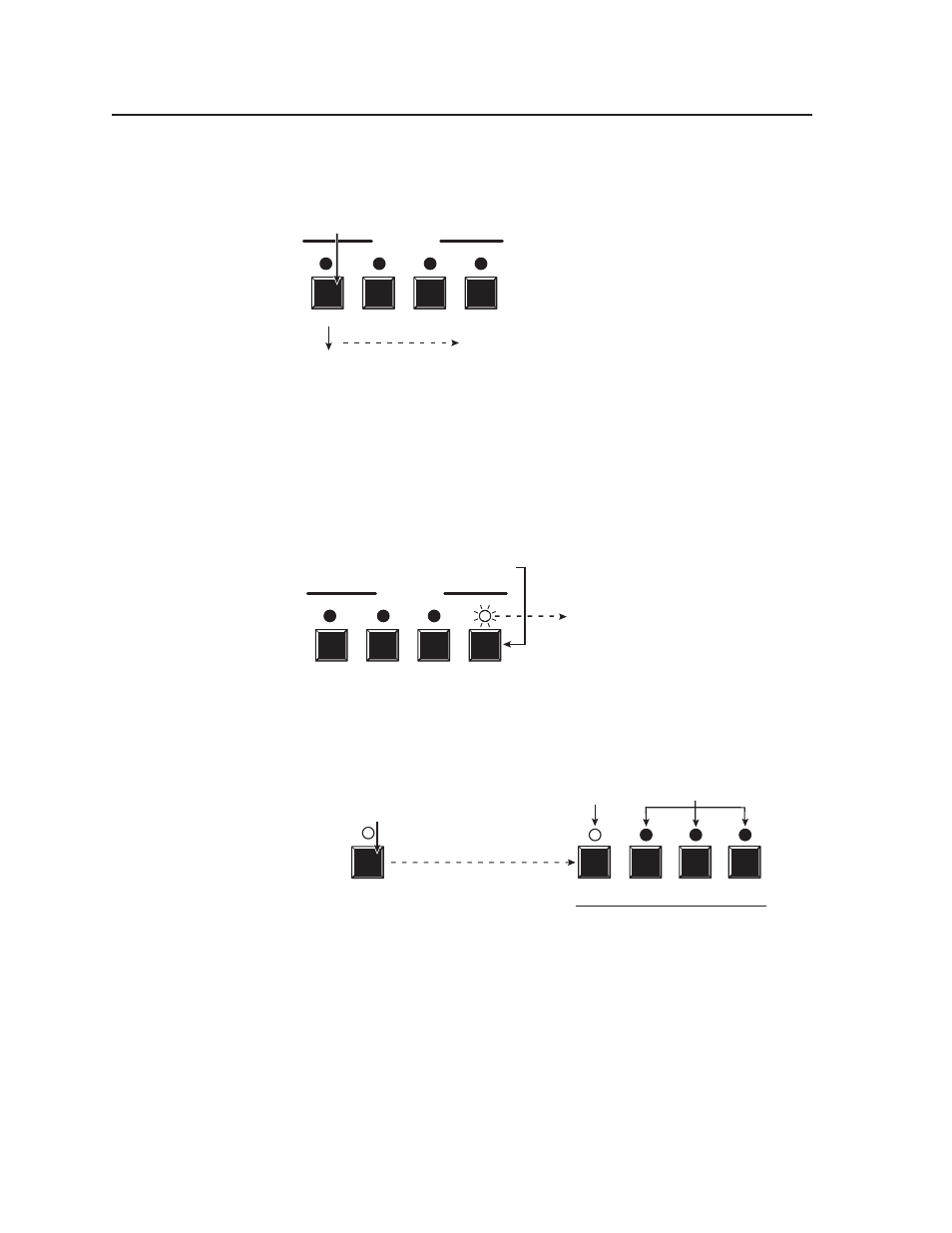

Figure 3-36 — Press the Enter button
Example 7: Recalling a preset
The following steps show an example in which a preset is recalled to become the
current configuration in a CrossPoint 300 84. The steps show the front panel
indications that result from your actions.
1 . Press and release the Esc button (figure 3-37).
ENTER PRESET VIEW ESC
CONTROL
Press the Esc button to clear all selections.
The LED
blinks once.
Figure 3-37 — Clear all selections
2 . Press and release the Preset button (figure 3-38).
Preset 13 Preset 14 Preset 16 Preset 15
PRESET 1 2 3 4
Press and release the Preset button.
The Preset LED lights.
All input and output LEDs with
assigned presets light.
Lit
(Preset Assigned)
Unlit
(Preset Unassigned)
Figure 3-38 — Enter Recall Preset mode
