Page 12: Front panel operation
CrossPoint / MAV Matrix Switchers • Front Panel Operation
Front Panel Operation
CrossPoint / MAV Matrix Switchers • Front Panel Operation
3-3
3-2
Refer also to the CrossPoint 450 Plus / CrossPoint Ultra / MAV Plus User’s Manual at www.extron.com.
Refer also to the CrossPoint 450 Plus / CrossPoint Ultra / MAV Plus User’s Manual at www.extron.com.
N
The video selection button is labeled “RGBHV” on the
CrossPoint switchers and “Video” on the MAV Plus
switchers. The two labels are used interchangeably in this
guide.

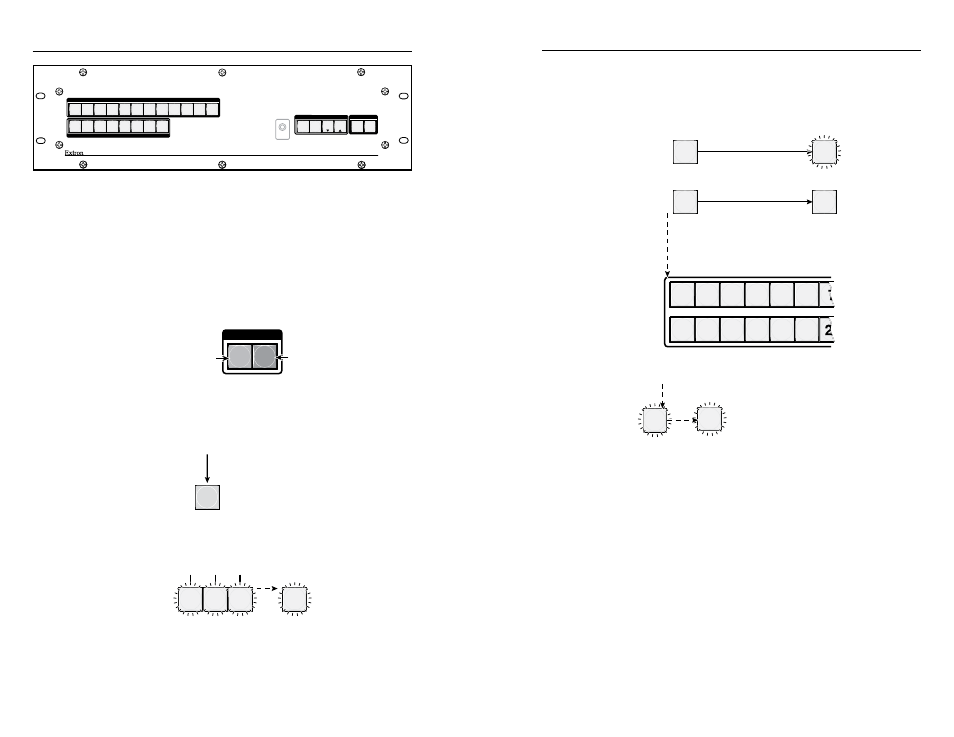

Creating a Tie
1
.
Press and release the Esc button to clear any input button,
output button, or control button indicators that may be lit.
2
.
Press and release the Video and/or Audio I/O button(s) to
select or deselect video and/or audio as desired.
Green when selected.
Off when deselected.
Red when selected.
Off when deselected.
I / O
RGBHV
AUDIO
N
Audio or video can be broken away (tied by itself) by
selecting only the Video button or only the Audio button.
3
.
Press and release the desired input button.
The button lights to indicate the selection.
5
4
.
Press and release the desired output button(s).
3
4
ENTER
8
Amber indicates RGBHV/video and audio tie.
Green indicates RGBHV/video only tie.
Red indicates audio only tie.
Green indicates the
need to confirm the
change.
5
.
Press and release the Enter button. All button indicators
turn off.
Saving or Recalling a Preset
1
.
Save
a preset — Press and hold the Preset button until it
flashes.
Recall
a preset — Press and release the Preset button.
PRESET
PRESET
PRESET
PRESET
Preset button blinks.
Press and hold.
2 seconds
Save a
preset
Recall a
preset
Preset button lights.
Press and release.
1 2 3 4 5 6
17 18 19 20 21 22
•
All input and output buttons with
assigned presets light red.
•
The configuration data at assigned
preset locations will be overwritten.
2
.
Press and release the desired input or output button.
1
ENTER
The button blinks red to indicate that
this preset is selected to save or recall.
The Enter button blinks
red to indicate the need to
activate the save or recall.
3
.
Press and release the Enter button.
AUDIO
VIDEO
I/O
CONTROL
ENTER
PRESET
VIEW
ESC
INPUTS
1 2 3 4 5 6 7 8 9 10 11 12
OUTPUTS
1 2 3 4 5 6 7 8
CONFIG
ULTRA-WIDEBAND MATRIX SWITCHER
WITH
ADSP
™
CROSSPOINT
ULTRA
SERIES
