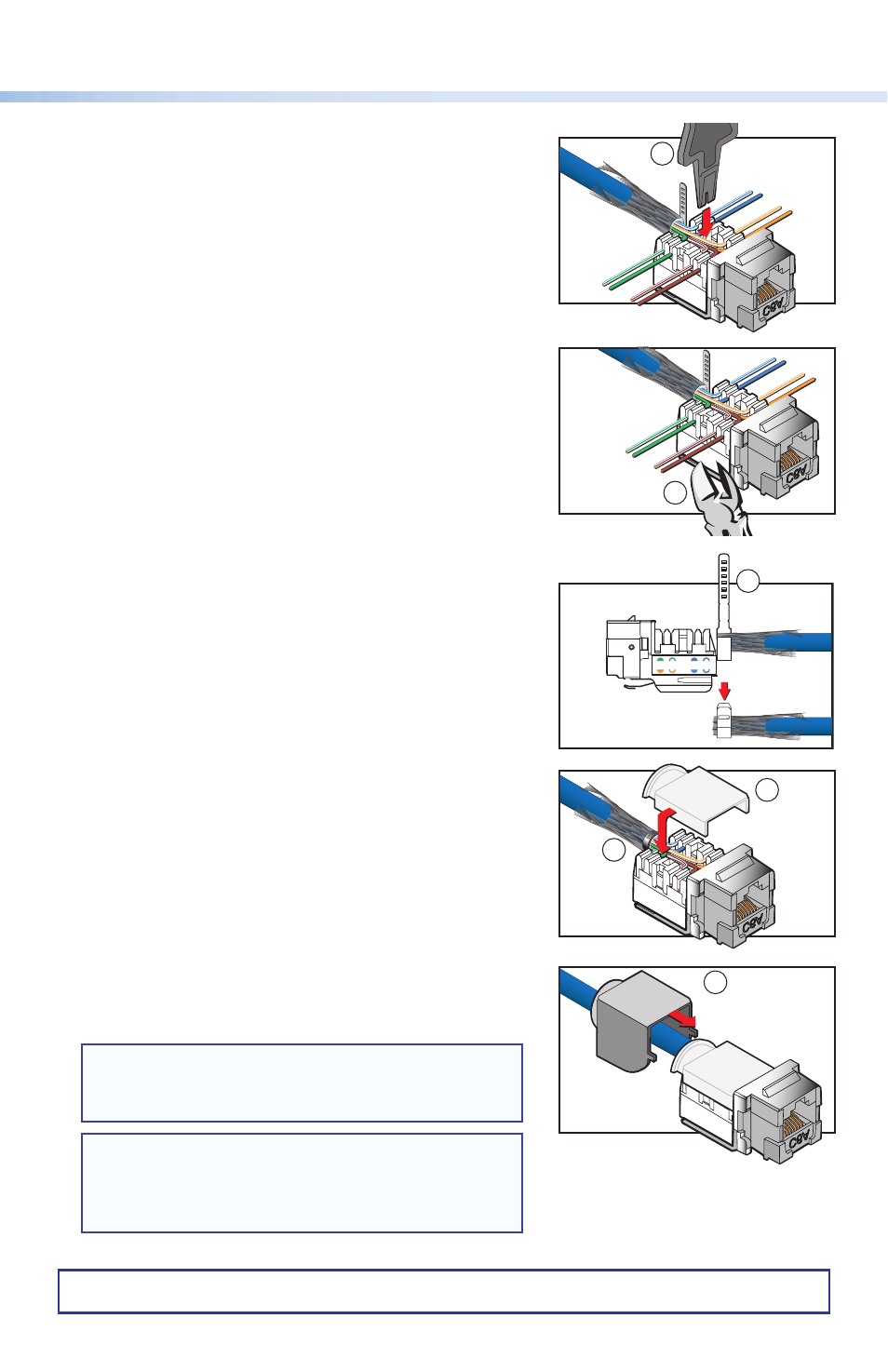

7. Use the 110-style punchdown tool to push down
each wire into the IDC slot. Push the punchdown
tool until the wire is firmly secured at the bottom
of the slot.
8. Trim the excess wire flush with the body of the
connector.
9. Tighten the grounding tie around the braid.
10. Remove the excess braid at the grounding tie.
11. Place the plastic cover over the termination wires
for secure connection and added strain relief.
12. Push the rear case forward until it clicks into
position over the terminated connector.
13. Test both ends of the cable for conductivity.
NOTE: If there is a need to re-terminate the
connector, insert a tweeker on the bottom of the
rear case and slide it back to access the wires.
NOTE: The wire retention mechanism in these
connectors is very secure. If a terminated cable
must be separated from its connector, separate
it one wire at a time.
