WPB Series • Quick Start

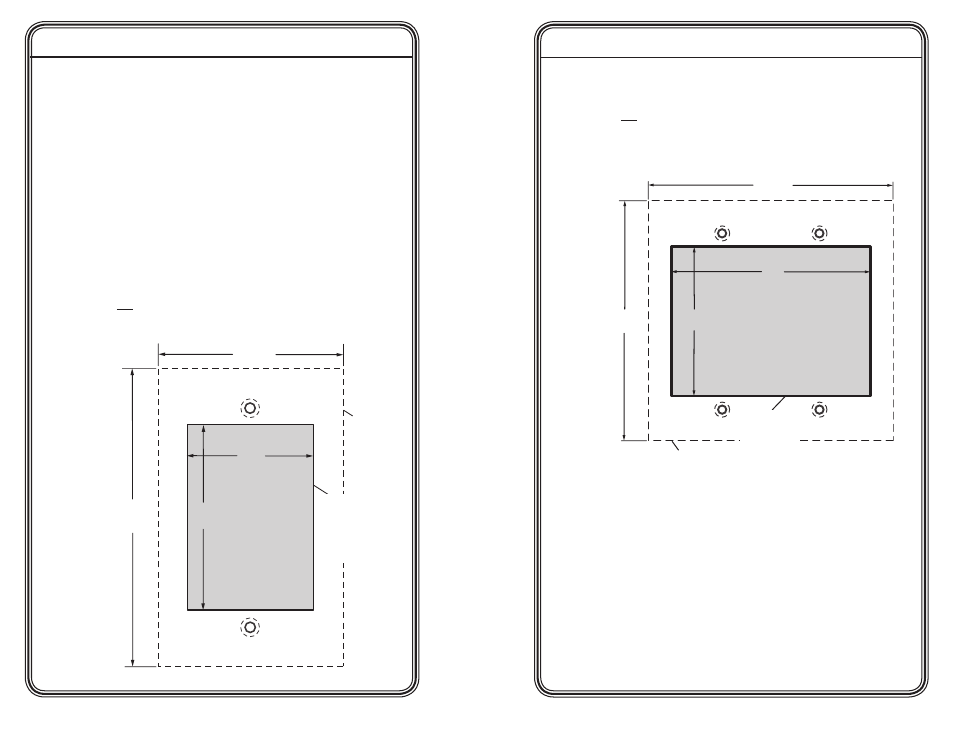

2-Gang Template (WPB 201 and WPB 202)
Use the dimensions in the 2-gang cut-out template below as a
guide for cutting a hole in the wall or furniture. The template
is not to scale. Full scale templates are available online at
www.extron.com.
4.5"
(11.4 cm)
Top
Panel
SURFACE CUT-OUT AREA
FOR FURNITURE MOUNT
4.6"
(11.7 cm)
3.7"
(9.4 cm)
2.8"
(7.1 cm)
To install a
2-gang WPB
directly into
furniture or
wall, cut
along this
line.
Quick Start Guide — WPB Series, cont’d
WPB Series (2-gang) cut-out template
5 WPB Series • Quick Start
1-Gang Template (WPB 101 - WPB 108)
Use the dimensions in the 1-gang cut-out template below as a
guide for cutting a hole in the wall or furniture. The template
is not to scale. Full scale templates are available online, at
www.extron.com .
WPB 101 - 108
4.50"
(11.4 cm)
Top
Panel
SURFACE CUT-OUT
AREA FOR
FURNITURE MOUNT
2.79"
(7.1 cm)
1.9"
(4.8 cm)
2.8"
(7.1 cm)
To install
1-gang WPB
directly into
furniture or
wall, cut along
this line.
Step 6
Disconnect all the devices from the power source, and correct any
cabling errors .
Step 7
Mount the wall plate to the wall or furniture. Being careful not to
damage the cables, place the wall plate onto or against the wall or
furniture, and secure it with the supplied screws.
Step 8
Reconnect the input cables to the front panel connectors.
N For full installation details, consult the WPB Series
Installation Manual online at www.extron.com
Quick Start Guide — WPB Series, cont’d
WPB Series (1-gang) cut-out template
