Quick Start Guide — WPB Series
C Installation and service must be performed by authorized
personnel only. These units must be installed in
accordance with the National Electrical Code and with
local electrical codes.
N These wall plates are passive devices and do not provide
buffering or other processing.
To install the WPB wall plates do the following:
Step 1
Select the site and run cables through the wall or furniture where the
wall plate will be installed.
Step 2
Prepare the site.
a. Cut a hole (see pages 4-6 for templates), and install an electrical
box or mud ring/mounting bracket. Cable clamps should be
used to hold the cables in place for strain relief.
b. Trim back and/or insulate exposed cable shields with heat
shrink to reduce the chance of short circuits.
Step 3
Temporarily attach the input cables to the front panel connectors.
Step 4
Connect the terminated output cables to the wall plate rear panel
connectors or to the BNC pigtails, as appropriate.
• Unbalanced computer audio input from a miniature 3.5 mm
stereo plug (tip-ring-sleeve connector) is output on a 3.5 mm
mini jack (WPB 103-107, WPB 201-202, WPB 301).
• Computer video input on 15-pin HD connectors is output on five
female BNC connectors (WPB 103-107, WPB 201-202,
WPB 301-302).
• Composite video input on a RCA connector is output on one
BNC connector (WPB 101-102, WPB 107-108, WPB 201-202,
WPB 301-302).
• S-video input on a 4-pin mini-DIN connector is output on a 4-pin
mini-DIN connector (WPB 101, WPB 102, WPB 106, WPB 201,
WPB 301-302).
• Unbalanced audio input from RCA connectors is output on
female RCA connectors (WPB 101-102, WPB 106-108,
WPB 201-202, WPB 301-302).
• USB A input is output on a USB A connector (WPB 104).
• RF input is output on an RF connector (WPB 301-302).
N For further information refer to the WPB Series User’s
Manual at www.extron.com.
2 WPB Series • Quick Start 3
Quick Start Guide — WPB Series, cont’d
• RJ-45 female input is output on a punch down block for CAT 6
cable (WP-105, WPB 202).
To wire an RJ-45 do the following:
a. Strip the outer cable shielding no more than 40 mm, and the
wire shielding no more than 10 mm.
N Ensure that the untwisting of pairs does not exceed 13 mm.
b. Terminate the wires with the appropriate punch-down tool.

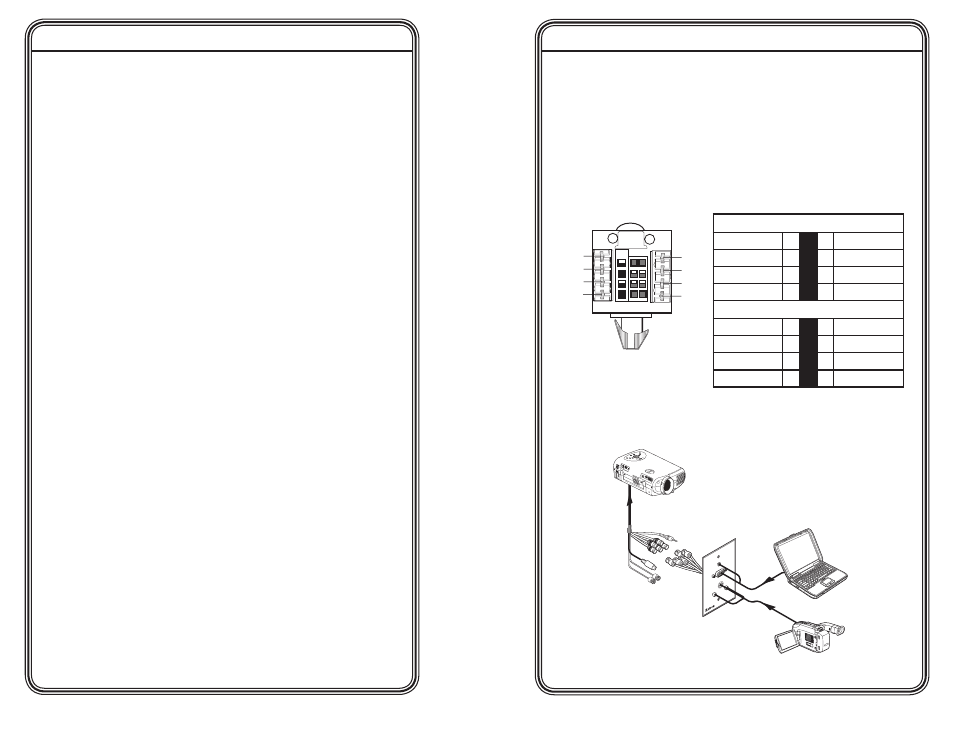

c. Connect the wires as shown below. Note the color
distinctions between TIA 568A and TIA 568B wiring standards.
A B A,B
568
2
1
3
6 7
6
5
4
Step 5
Verify that you have correctly wired the connectors and attached the
cables, and test the system: Connect the input and output devices to
a power source, turn them on, and check for the correct audio/video
output.
WP B 1 06
CO MP UT ER
AU DIO
R
L
S-V IDE O
Laptop
Output Device
Video Camera
Extron
WPB 106
VGA and Audio,
S-video with Audio
Wall Plate
Application example showing the WPB 106
T568A
White/Brown 7 2 Green
Brown 8 1 White/Green
White/Blue 5 3 White/Orange
Blue 4 6 Orange
T568B
White/Brown 7 2 Orange
Brown 8 1 White/Orange
White/Blue 5 3 White/Green
Blue 4 6 Green
