3
Product Category
Step 1 — Obtain Cut-out Dimensions
ATTENTION:
• The opening in the table for the Cable Cubby should be cut only by licensed and bonded craftspeople. Exercise care
to prevent scarring or damaging the furniture.
• L’ouverture dans la table pour le Cable Cubby devrait être coupée seulement par des artisans autorisés et qualifiés.
Faites attention à ne pas faire de marques sur le meuble et à ne pas l’endommager.
• Use the appropriate metal Extron routing template or refer to the surface cutout dimensions before cutting a hole in
the furniture or other surface. Pay special attention to the direction the unit will face. The connector access side is
underlined. Extron is not responsible for miscut mounting holes.
• Utilisez le gabarit de détourage métallique approprié ou reportez-vous aux dimensions de découpe de la surface
indiquées ci-après avant de découper le meuble ou la surface. Faites particulièrement attention à la directions dans
laquelle l’unité sera dirigée. Le côté pour accéder au connecteurs est souligné. Extron ne sera pas responsable des
erreurs de coupe.
• Ensure the table surface is at least 0.375 inches (0.95 cm) thick.
• Assurez vous que la surface de la table est au moins 0,95 cm (0,375") d’épaisseur.
If using a hand router, you should purchase the Extron TLP Pro 720C routing template.
If using a CNC wood router, use the exact cut-out dimensions (see
Using a CNC wood cutter below).
If using a reciprocating saw or jigsaw use the paper cut-out template (available under the Downloads tab on the TLP Pro 720C
page at
www.extron.com ).
Step 2 — Cut the Surface
CAUTION: Risk of personal injury: Wear safety glasses when operating power equipment.
ATTENTION: Risque de blessure: Portez des lunettes de sécurité lorsque vous utilisez l’équipement électrique.
Be certain the cut is laid out in exactly the desired location and the edge that opens on the lid is correctly oriented. After verifying
and checking dimensions, cut a hole in the surface of the furniture where the enclosure will be installed (see “Preparing the Table”
in the TLP Pro 720C User Guide). There are three methods for cutting the hole in the table:

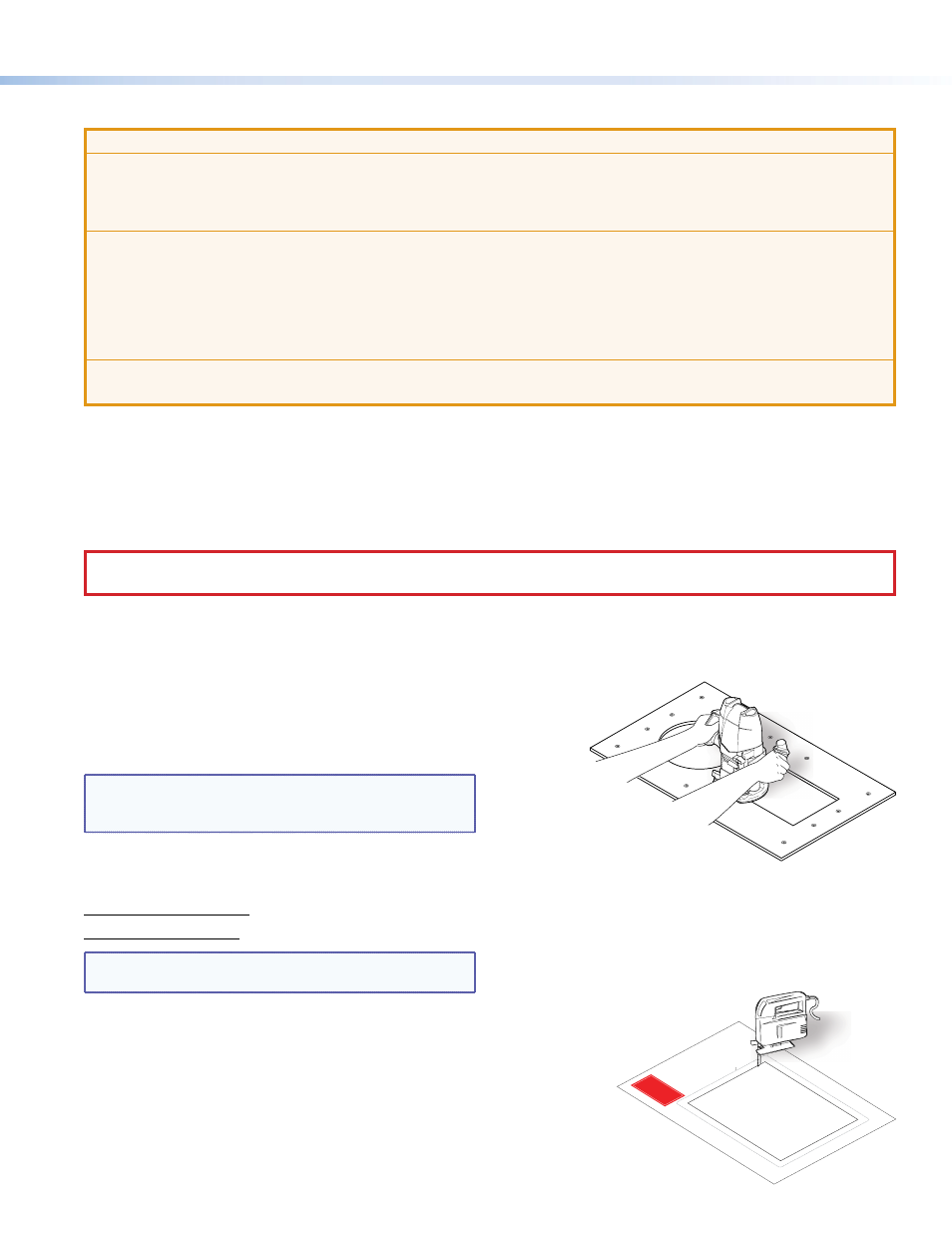

Using a hand router
Recommended method — Use the Extron TLP Pro 720C
routing template. Refer to the Routing Template User Guide,
available at
www.extron.com , to prepare the template and
use the template to cut the hole.
NOTE: The metal router guide must be purchased
separately. It is reusable and should not be discarded
when the installation is complete.
Using a CNC wood cutter
Recommended method — Use the exact cut-out dimensions:
8.90 +0.00/-0.02 inches W x 7.10 +0.00/-0.02 inches D
(22.61 +0.00/-0.05 cm W x 18.03 +0.00/-0.05 cm D)
NOTE: The underlined dimension is the connector or AAP
access side for the unit.
Using a reciprocating saw or jigsaw
Acceptable method — Use the paper cut-out template (available
under the Downloads tab on the TLP Pro 720C page at
www.extron.com ).
HS A 200 US ER ACCE SS
HS A 20 0
CA BLE CUB BY 30 0
CA BLE CUB BY 30 0
US ER A CCE SS
Cu t-O ut T em plate for th e E xtro n
TLP
Pr o 720C
Ou ter Edg e o f Tr im Rin g
(Do no t cu t th is l ine .)
1. Conf irm the
prod uct to be in
stall ed.
2. Rem ove the
su rfa ce cut-ou t ar ea
(g ray ) fr om th e te mp late .
3. Mark th e posit ion o n the wa ll or
furn itur e w her e th e TL P 71 0M V
is bein g ins tall ed.
4. Cu t the o
peni ng.
P/N 68- 204 6-0 1 Re v. B
Pag e s ize : 11" x 17
"
Pri nt s
cal e 1: 1
Do no t sh rink
.
P/N P/
