Step 3 — run all cables, Step 4 — install cable retractors (optional), Step 5 — install power module (optional) – Extron Electronics TLP Pro 720C Setup Guide User Manual

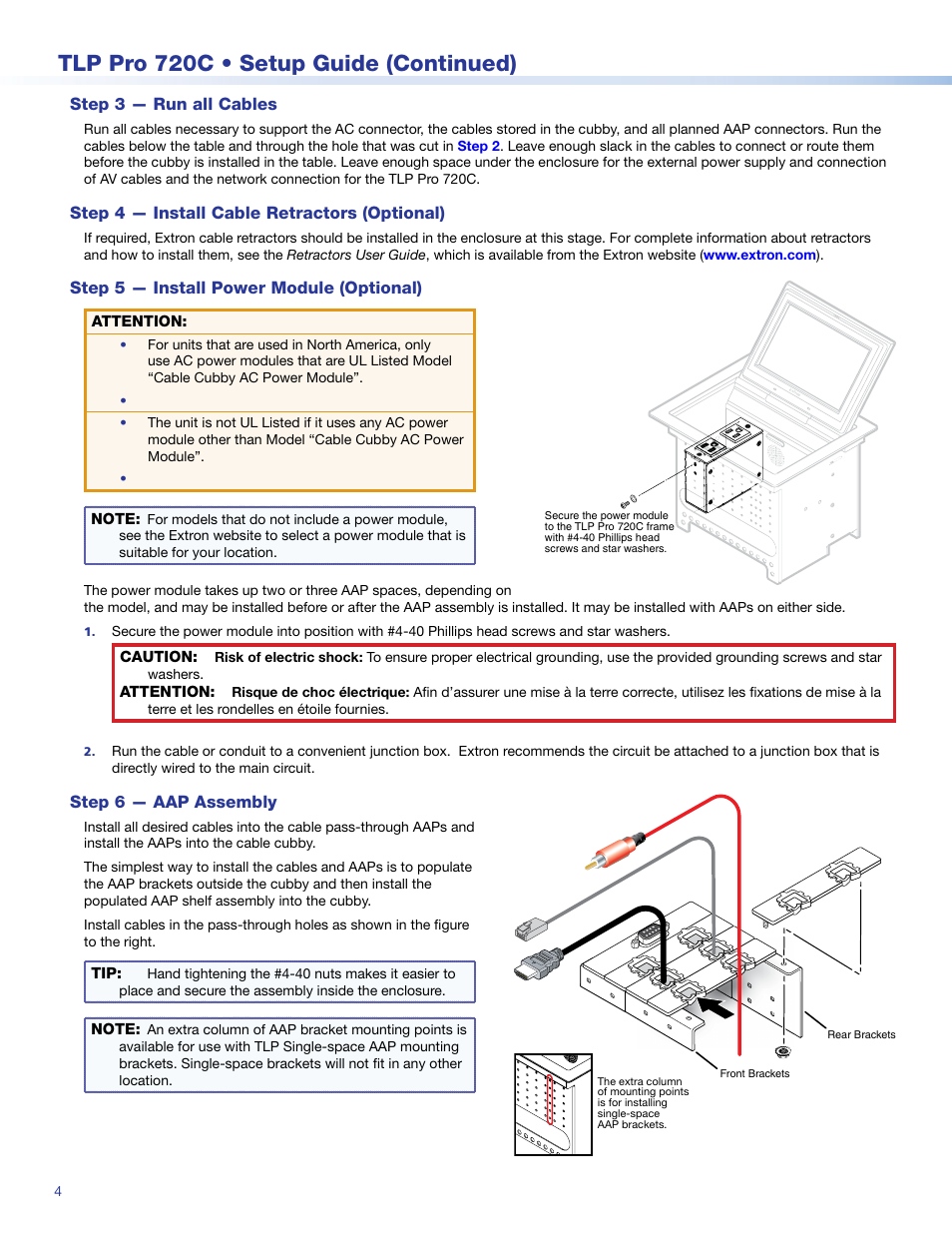

Page 4: Step 6 — aap assembly, Tlp pro 720c • setup guide (continued)
