1

IMPO

RTAN

T:

Refer to www

.extron.com

for the

complete user guide

, installation

instructions,

and specifications.

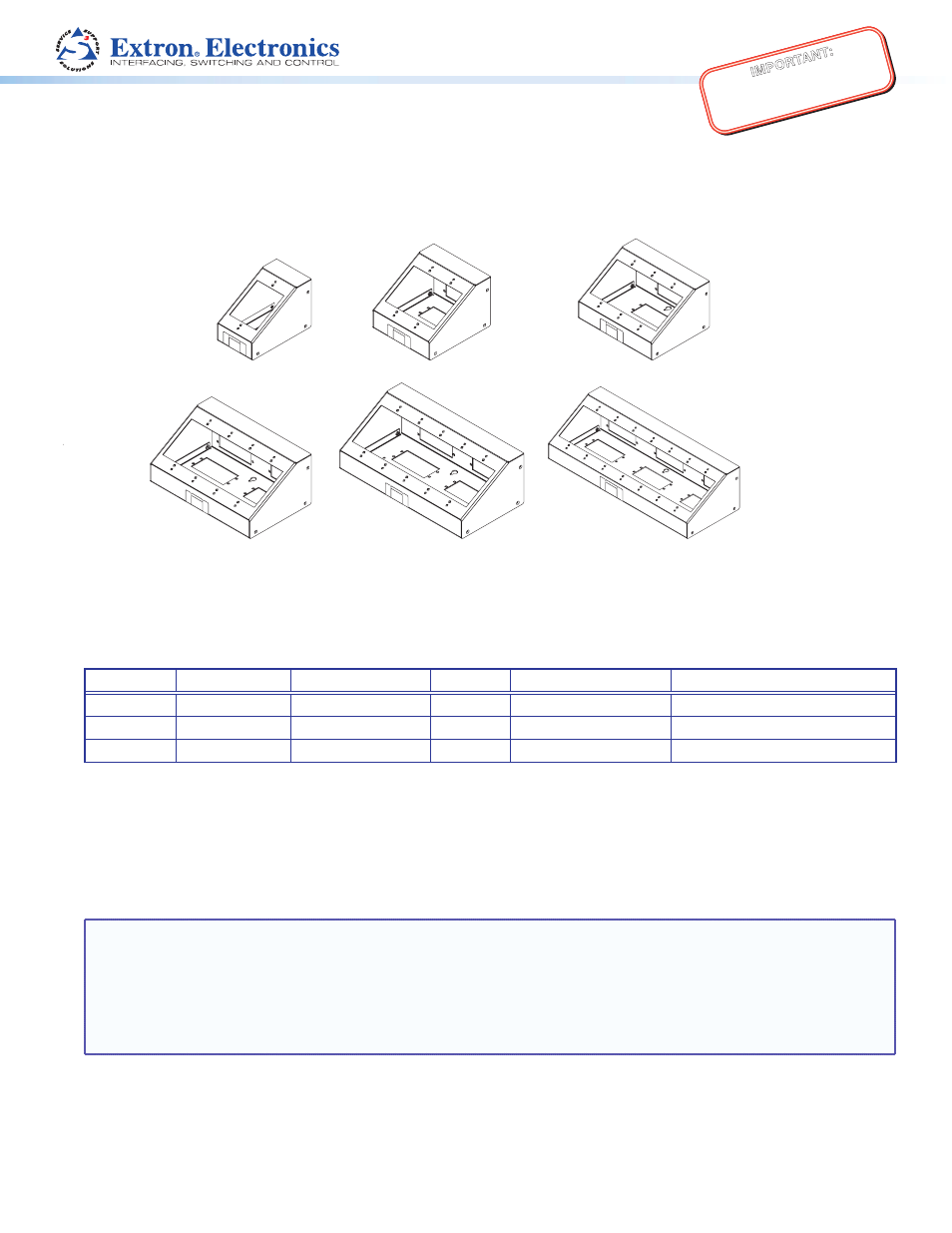

SMB 100 Series • Installation Guide

The Extron SMB Series Surface Mount Boxes are designed for mounting various Extron architectural products, including wall
plates, Architectural Adapter Plates (AAP), AAP Mounting Frames, and MediaLink® Controllers. Each box can be surface
mounted on a tabletop or wall for convenient access to connectors and controls.
The back and bottom of the boxes feature AAP openings. Blank AAP panels are included to fill unused openings.
This guide provides information for a qualified, experienced installer to install an SMB surface mount box.

SMB 104
Four-gang
Surface Mount Box

SMB 105
Five-gang
Surface Mount Box

SMB 103
Three-gang
Surface Mount Box

SMB 102
Two-gang
Surface Mount Box

SMB 101
Single-gang
Surface Mount Box

SMB 107
Seven-gang
Surface Mount Box

Recommended Fasteners

Choose the appropriate type of screw or bolt for the mounting surface (see the table below). The mounting holes in the bottom
panel of the SMB accommodate #6 or 1/4 inch screws.

Wall Type

Fasteners

Min. Size Fastener Quantity

Drill Bit Size

Notes

Drywall

Toggle bolts

3/16 inch

At least 3

1/2 inch

Min. 3/8 inch wall thickness

Solid wood

Wood screws

#6 with a washer

At least 3

3/32 inch

Min. 3/8 inch wall thickness

Masonry

Masonry screws 1/4 inch

At least 3

3/16 inch masonry bit

Do not mount to masonry joints.

Grounding

The bottom plate includes a #6‑32 stud insert for grounding; a grounding nut is included with each SMB.

Mounting the SMB

NOTES:

This unit must be installed in accordance with the National Electrical Code and with all local codes.

Ensure that the installation meets the local and state regulatory requirements, including building, electrical,
and safety codes, and ADA accessibility requirements.

Ensure that there are no utility cables or pipes at the intended location that might be damaged or cause injury
when installing the box.

The SMB can be mounted on any interior wall type or on a tabletop. Knockouts allow for raceways to be run from the top or
rear of the box. Install the cables into the wall or raceway before mounting the box or installing any devices in the SMB. The
installation instructions apply to all models.
