MTP T 15HD A Architectural Series • Setup Guide
5.
Mounting — Mount the MTP T 15HD model into the electrical box, device faceplate, or wall
PC INPU
T
AUDI
O
Wall opening
is flush with
edge of box.
Wall Box
Decora
Faceplate
MTP T 15HD A D
plate as required (see image at right).
Step 2 — Connect Input
Connect cables from input devices to the applicable inputs on the face of the MTP transmitter.
1.
High resolution video input — Connect to the 15-pin HD connector (for RGB, composite,
S-video, and component video signals).
NOTES:
•
Input only sync signals, no video signals, on the sync pins, 13 and 14.
•
For component video, use the R (R-Y) and R return pins
5
1
15
11
6
10
Female
(pins 1 and 6), G (Y) and G return pins (pins 2 and 7), and
B (B-Y) and B return pins (pins 3 and 8).
•
For S-video, use the R, R return (C-chroma), G, and G return
(Y-luma) pins.
•
For composite video, use the G pin and the associated return pin. For
additional genlocked video signals, use the R, B, and associated return pins
2.
Audio input — Plug a 3.5 mm stereo audio plug into this jack for unbalanced audio input. Wire the plug as shown.
Step 3 — Connect Outputs
Connect the TP cable from the MTP transmitter’s output RJ-45 to the input port of an MTP receiver.
Connect the audio output cables to the audio input connector, depending on the MTP U R model used.
Enhanced Skew Free
UTP Cable
RG
B
PEAKIN
G
LE
VE
L
M
TP
S
ER
IE
S
MTP 15HD A WM
PC INPUT
AUDIO
Projector
Laptop
w/ Audio
MTP 15HD A WM
Audio
MTP R 15HD A

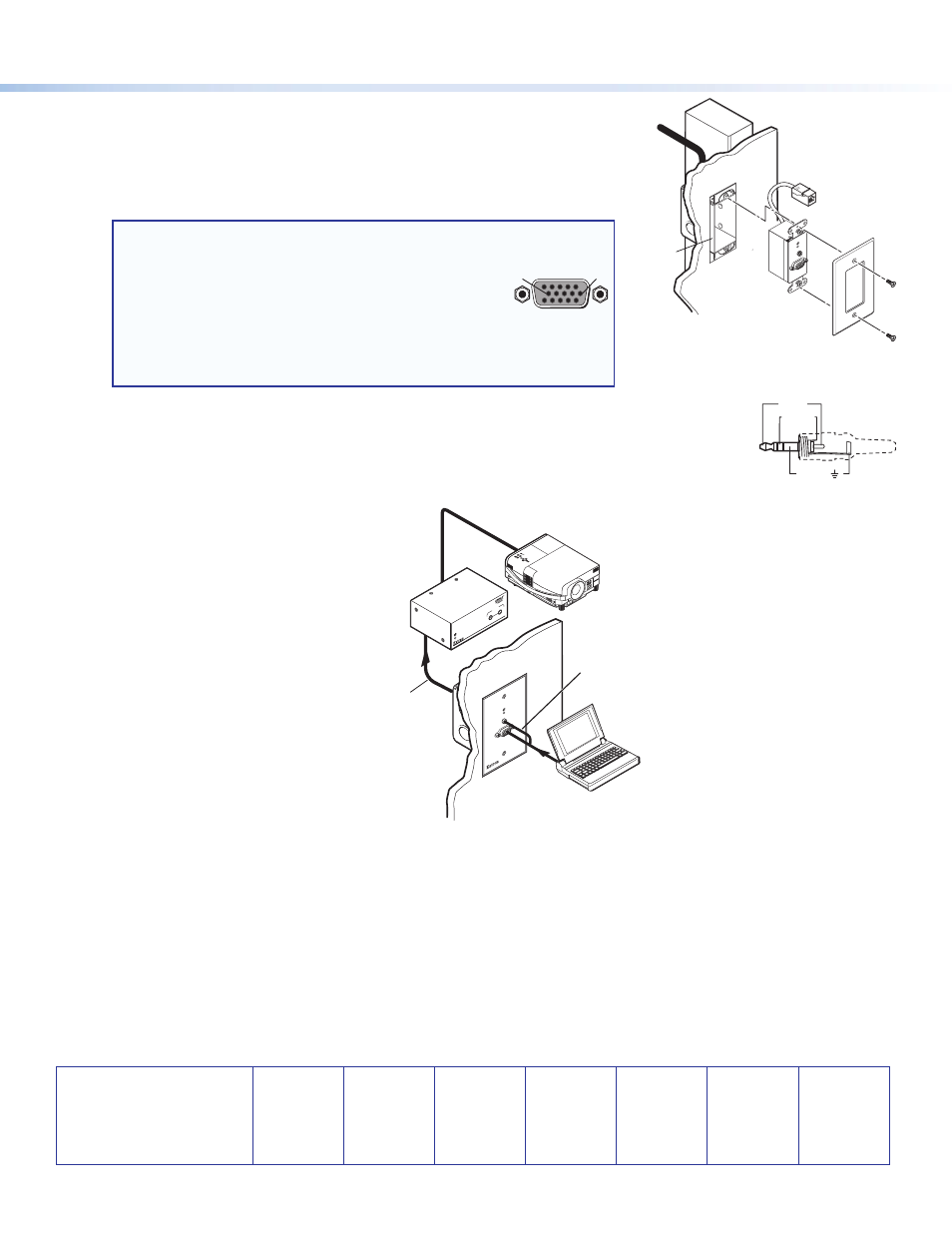

Figure 1.
Example of a Typical MTP T 15HD WM Application
Sleeve ( )
Ring (R)
Tip (L)
