4
MLC 104 IP Plus Series • Setup Guide (Continued)

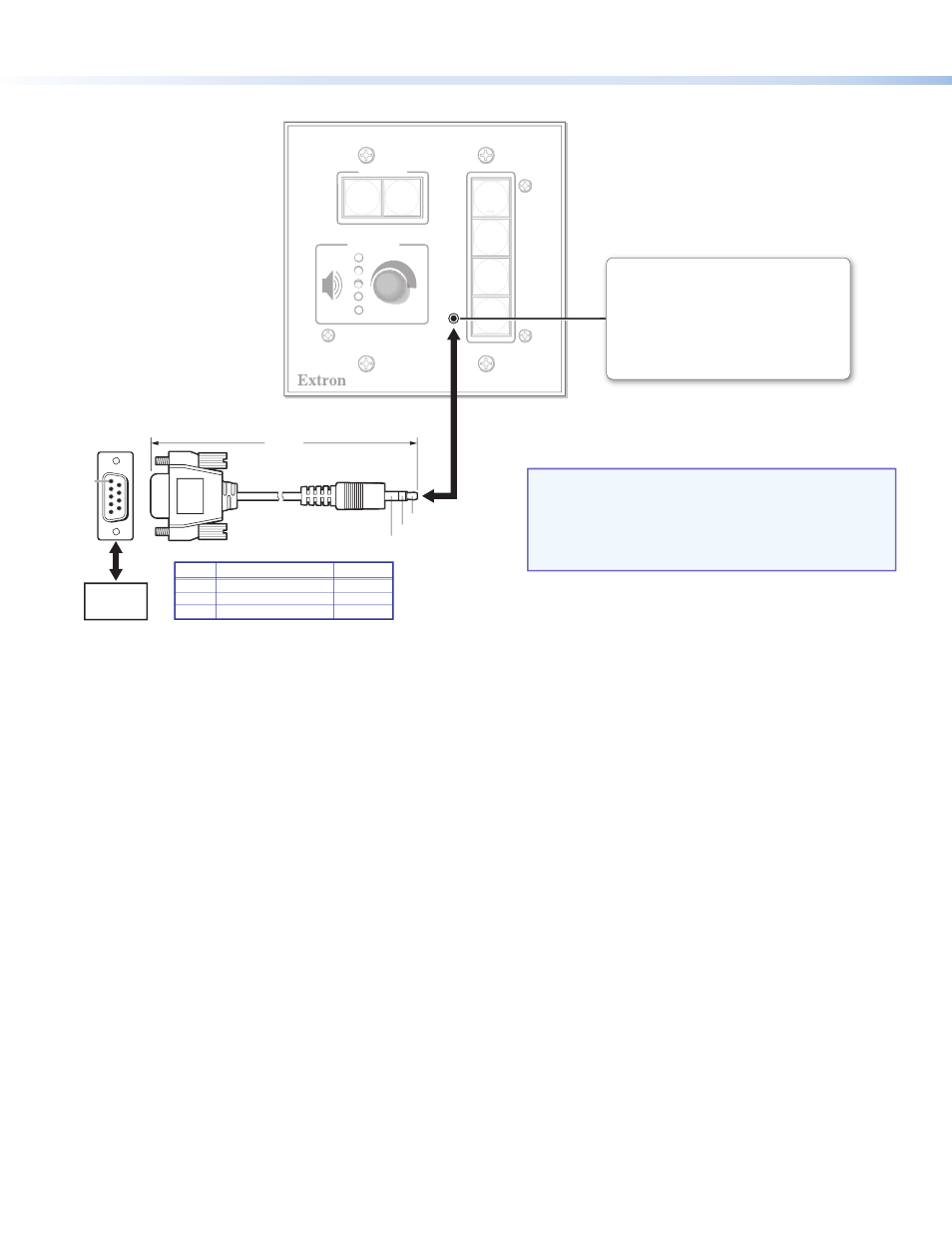

Control — Serial (Config)
CONFIG
DISPLAY
VOLUME
MLC 104 IP PLUS
ON VCR
DVD
PC
OFF
1
2
3
4
6 feet
(1.8 m)
Part #70-335-01
5
1
9
6
Sleeve (Gnd)
Ring
Tip
9-pin D Connection TRS Plug
Pin 2 Computer Rx line Tip
Pin 3 Computer Tx line Ring
Pin 5 Computer signal ground Sleeve
MLC104 IP Plus Front Panel
To/From the
RS-232 Port
on a PC
This port supports bidirectional RS-232 (-5 - +5 VDC)
communication.
Protocol:
• 38400 baud
• 8 data bits • 1 stop bit
• no parity • no flow control
Config Serial (RS-232) Port
Front panel Config port:
• RS-232 only (Tx, Rx, ground)
NOTES:
• Use the front panel Config port only for sending basic SIS
commands (such as those for IP setup and troubleshooting)
and checking unit information and responses.
• You must use the LAN port (not the Config port) to set up
the MLC and upload GC configuration files or firmware.
About Global Configurator (GC)
What It Does
Global Configurator is the software tool for setting up an MLC and the system it controls.
Global Configurator:
z Loads device drivers and uses commands from them for controlling other products
z Creates a single configuration file containing all the settings for the MLC and the products it interacts with in the AV system
z Generates a graphical user interface called GlobalViewer that is uploaded to the MLC (a GlobalViewer host device)
along with the completed configuration and can be accessed as a web page
By using GlobalViewer, users can manage, monitor, and control Extron and third-party equipment such as projectors,
displays, computer monitors, Blu-ray
™ players, and DVD players.
What To Set Up in GC
Use GC software to create a configuration that tells the MLC how its ports will function; how to control other products;
what to monitor; when to do things; and whom to notify, how, when, and under what circumstances.
