Page 14
MLM 52 Wall Mounting Kits • Templates and Dimensions
8

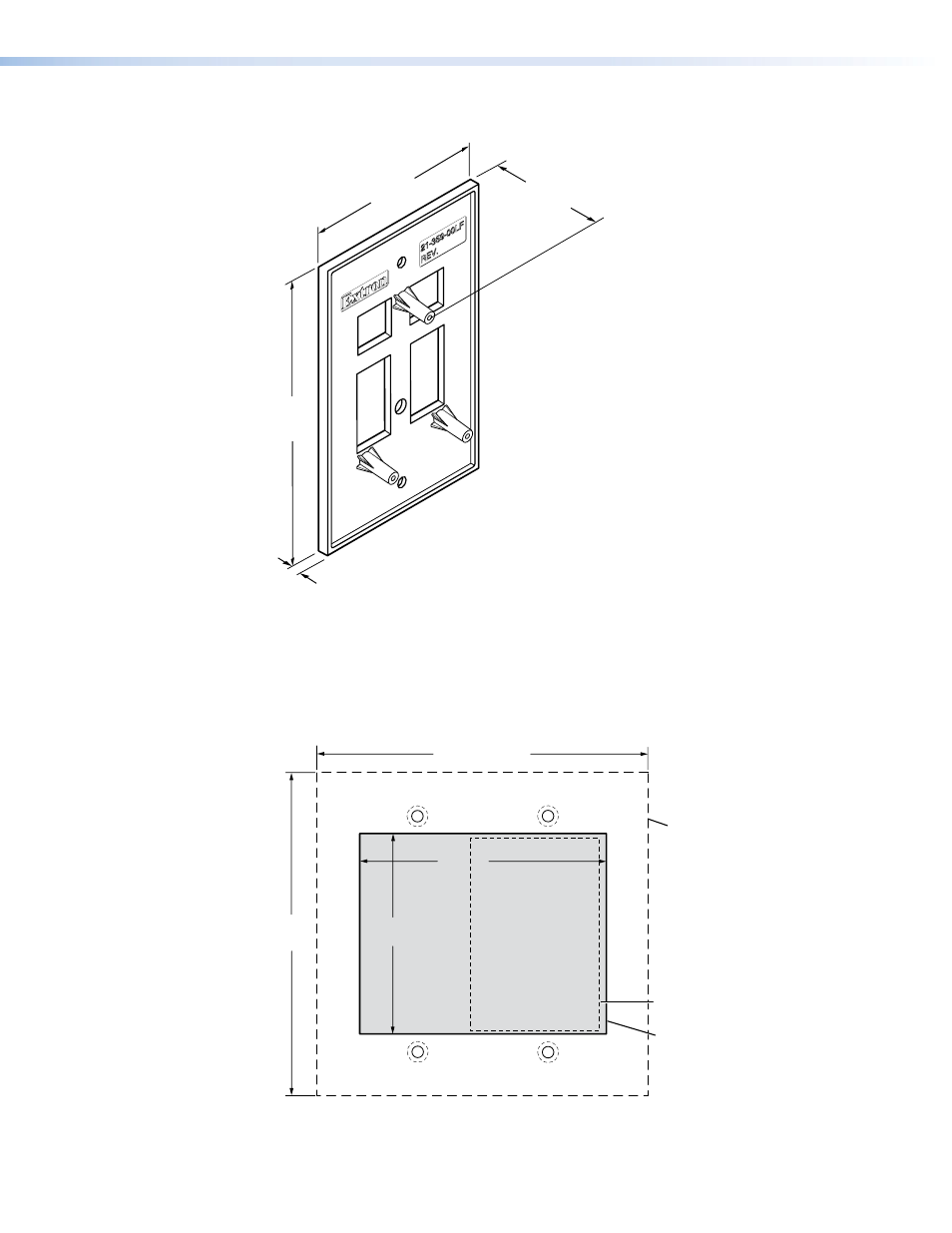

MLM 52 1GWP Dimensions
2.8”
(7.1 cm)
4.5”
(11.4 cm)
0.19"
(0.48 cm)
0.68”
(1.72 cm)
MLM 52 VC
(Front View)
Cut-Out Template for the Extron
4.60" (11.68 cm)
To install the MLM 52 VC
directly into
furniture or wall,
cut along this line.
Top Panel
2.83"
(7.19 cm)
3.50"
(8.90 cm)
SURFACE CUT-OUT
AREA FOR
FURNITURE MOUNT
Location of MLC 52
4.50"
(11.43 cm)
