MLM 52 Wall Mounting Kits • Installation
6
5.
Turn the two screws on the bracket so that the locking arms rotate behind the
mounting surface until they clamp securely to it. Do not overtighten.
Wall
Wall Mounting
Bracket
Wall Mounting
Bracket
Wall

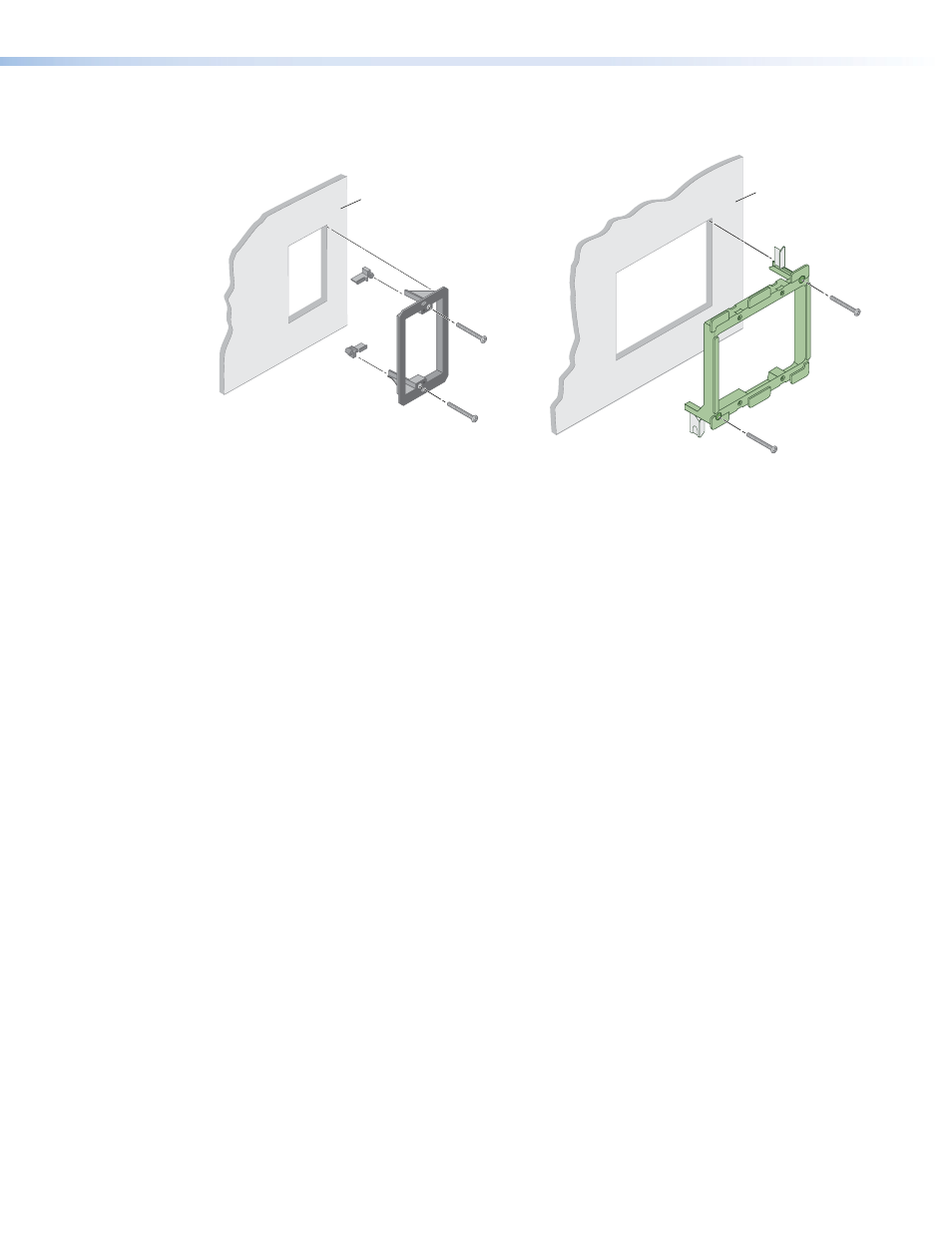

Figure 6.
Attaching a Mounting Bracket to the Mounting Surface
6.
Run the required cables from the wall or furniture through the mounting bracket to
the MLC 52 and attach them.
7.
Place the MLC controller onto the mounting bracket, lining up the screw holes at the
top and bottom of the MLC with the holes at the top and bottom of the bracket.
8.
Place the MLM faceplate onto the MLC 52 controller front panel, then attach both
to the bracket, using the provided screws in the holes at the top and bottom of the
faceplate.
