MTP AV Series • Installation 5
6. Locate the jumper blocks (see figure 3) on the video board. Shift the jumper to the
alternate location.
Transmitter Front Panel Receiver Front Panel
Receiver Rear Panel Transmitter
Rear Panel
Mono (default jumper position)
Compatible with new model transmitter/receivers.
Cannot remotely power transmitter/receiver.
Stereo
Compatible with old model transmitter/receivers.
Can remotely power transmitter/receiver.

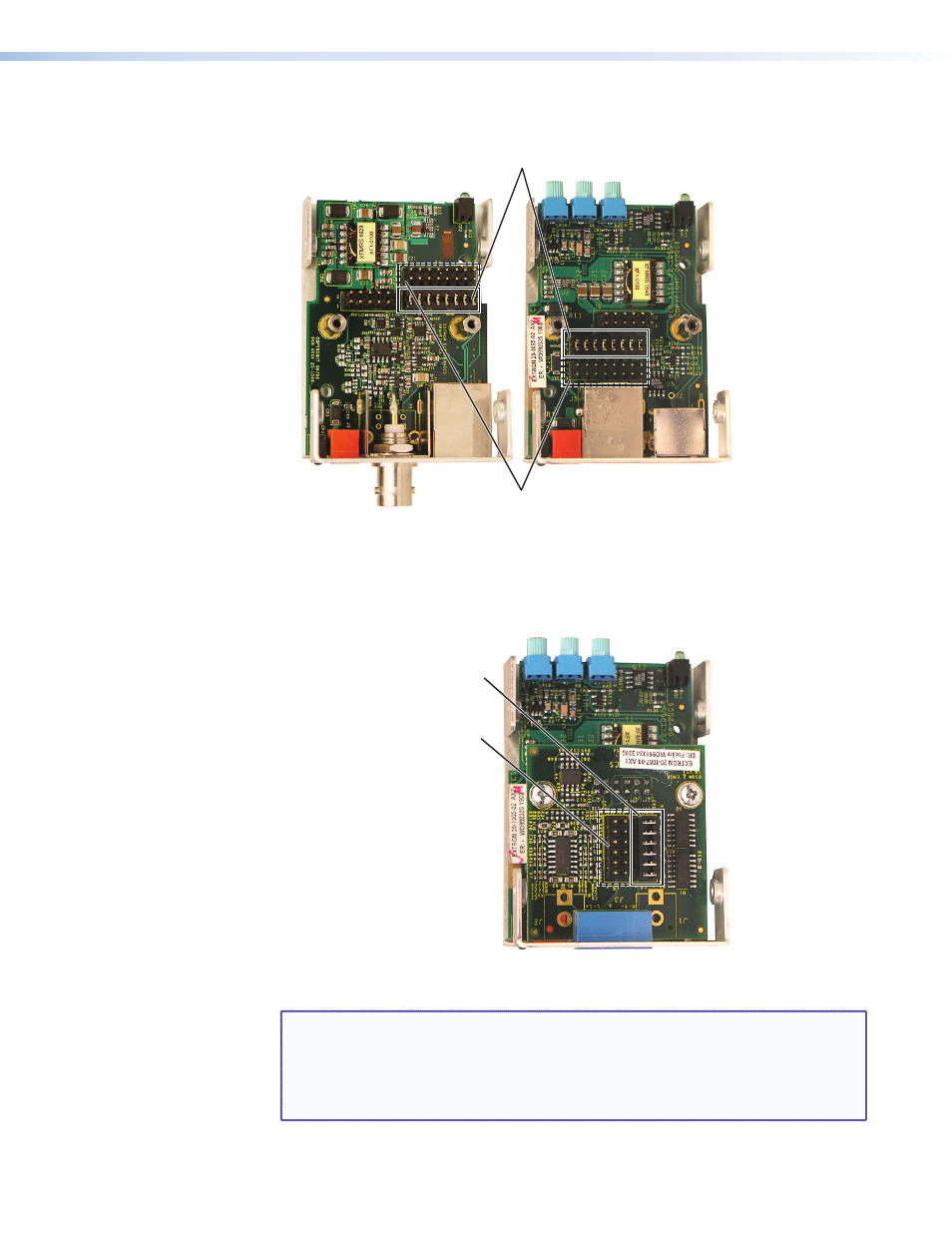

Figure 3. Video Board Jumper Locations
7. Reinstall the audio board and secure it in place with the screws (removed in step 4 ).
8. For the receiver, locate the jumper block on the audio board (see figure 4). Shift the
jumper to the alternate location.
Receiver Rear Panel
Mono (default jumper position)
Compatible with new model transmitters.
Mono audio.
Cannot remotely power transmitter
Stereo
Compatible with old model transmitters.
Stereo audio.
Can remotely power transmitter.
Receiver Front Panel
Figure 4. Receiver Audio Board Jumper Locations
NOTES:
• The jumper locations and functions are the same whether the receiver is
equipped with captive screw or RCA audio connectors.
• Both jumpers (video and audio) must be set to either mono or stereo for it to
pass audio and video successfully.
9. Replace the cover and the four screws (removed in step 1 ).
