MTP AV Series • Installation
4
Setting the Jumpers on New Generation Non AAP Models
1.
Remove and retain the four screws (two on each side of the unit) that secure the cover
to the MTP (see figure 1).
SHARP
GAIN

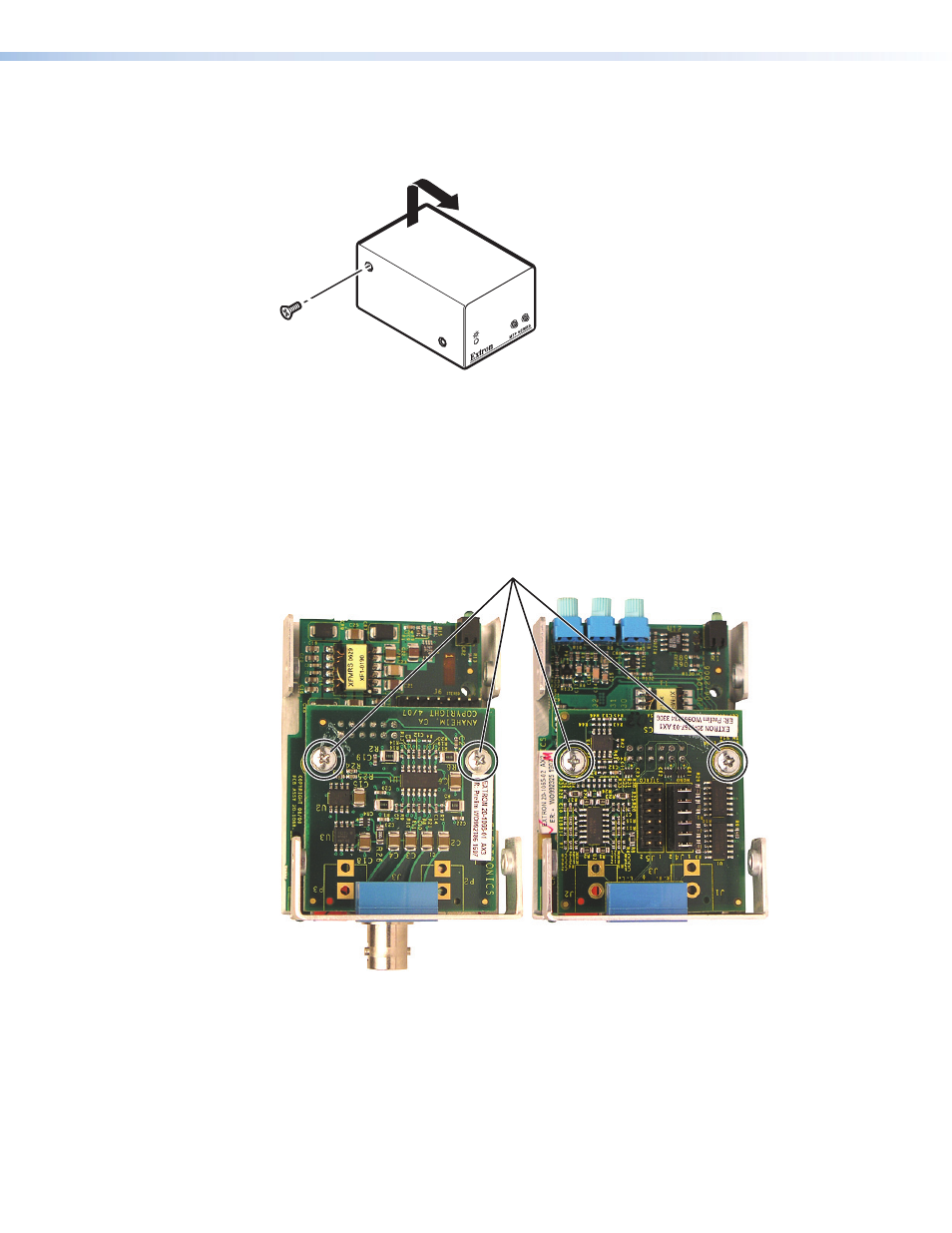

Figure 1.
Removing the MTP Cover
2.
For the receiver, slide the cover slightly forward to clear the front panel adjustment
knobs.
3.
Lift the cover straight up.
4.
Remove and retain the two screws that secure the audio board to the main (video)
board (see figure 2).
5.
Pull the audio board back until the audio connectors clear the back of the unit and lift
the board out of the way.
Transmitter Front Panel
Receiver Front Panel
Receiver Rear Panel
Transmitter Rear Panel
Remove and retain these screws.
Figure 2.
Removing the Audio Board
