MDA 4V HD-SDI and SDI User's Guide • Introduction

MDA 4V HD-SDI and SDI User's Guide

0

MDA 4V HD-SDI and SDI User's Guide • Introduction

MDA 4V HD-SDI and SDI User's Guide • Specifications

MDA 4V HD-SDI and SDI User's Guide • Indicators

Indicators

DISTRIBUTION AMPLIFIER

DISTRIBUTION AMPLIFIER

MDA 4V HD-SDI

RATE

UNKNOWN

2.97 Gbps

1.485 Gbps

270 Mbps

3

1

2

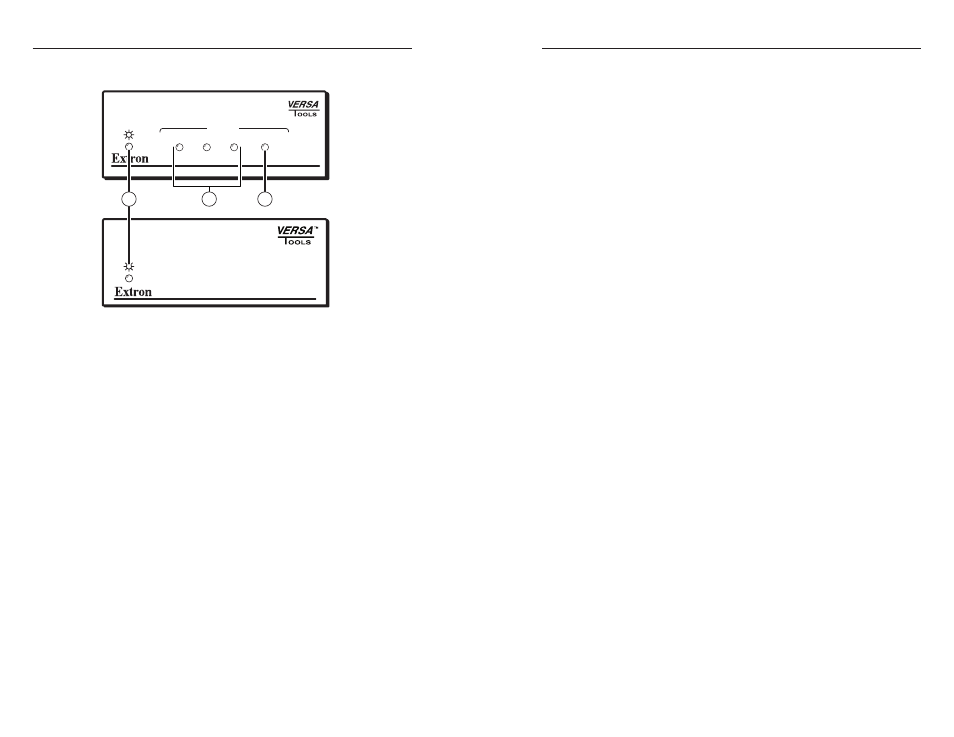

Figure 10 — MDA 4V HD-SDI and SDI front panels

a

Power LED — Indicates power is applied.

b

Rate indicators (MDA 4V HD-SDI only) — These indicators

light to indicate the detected input video rate on the HD-SDI

input BNC connector. The recognized rates are 270 Mbps,

1.485 Gbps, or 2.97 Gbps.

c

Unknown rate indicator (MDA 4V HD-SDI only) — When lit,

this LED indicates that an input is detected on the HD-SDI input

BNC connector but that the MDA did not recognize the rate.

N

The MDA equalizes and distributes the input regardless

of whether the rate is recognized or not.

System operation

After the MDA and all of its connected devices are powered up,

the system is fully operational. If any problems are encountered,

ensure all cables are routed and connected properly.

Specifications

Video

Gain ................................................. Unity
Resolution....................................... 8 or 10 bits, automatic
Operation standards

MDA 4V HD-SDI ............... SMPTE-259M

SMPTE 292M
SMPTE 424M
ITU-R BT.601
ITU-R BT.1120

MDA 4V SDI ...................... 143 Mb/s (4f

sc

NTSC)

177 Mb/s (4f

sc

PAL)

270 Mb/s (4:2:2 component video)
360 Mb/s (4:2:2 widescreen component
video), autoselected

Equalization and re-clocking ....... Automatic for up to -30 dB of cable loss
Auto data rate lock

(MDA 4V HD-SDI) ............ Yes

Video input

Number/signal type

MDA 4V HD-SDI ............... 1 SDI, HD-SDI, or 3G-SDI digital

component video

MDA 4V SDI ...................... 1 SMPTE-259M serial digital component

video

Connectors ..................................... 1 BNC female
Data rates ........................................ 19 Mbps to 2.97 Gbps
Input cable equalization ............... Automatic

HD-SDI ............................... 120 m (400') using Extron RG6 cable

60 m (200') using Extron RG59 cable

SDI ....................................... 150 m (500') using Extron RG6 cable

120 m (400') using Extron RG59 cable

Nominal level ................................ 0.8 Vp-p
Minimum/maximum levels ........ 0.5 V to 1 Vp-p with no offset
Impedance ...................................... 75 ohms
Return loss

MDA 4V HD-SDI ............... <-15 dB @ 5 MHz to 2.97 GHz
MDA 4V SDI ...................... <-15 dB @ 5 MHz to 270 MHz

Maximum DC offset ..................... 5 V
Input coupling ............................... AC

Specs file: MDA_4V_HD-SDI_D_000.PMD and MDA_4V_SDI_D_004.PMD
