VersaTools ® MDA EQ Series • Quick Start Guide
Quick Start Guide — MDA EQ Series
To install and set up an MDA EQ Series mini distribution
amplifier, follow these steps:
Step 1
Turn all of the equipment off and disconnect it from the power
source.
Step 2

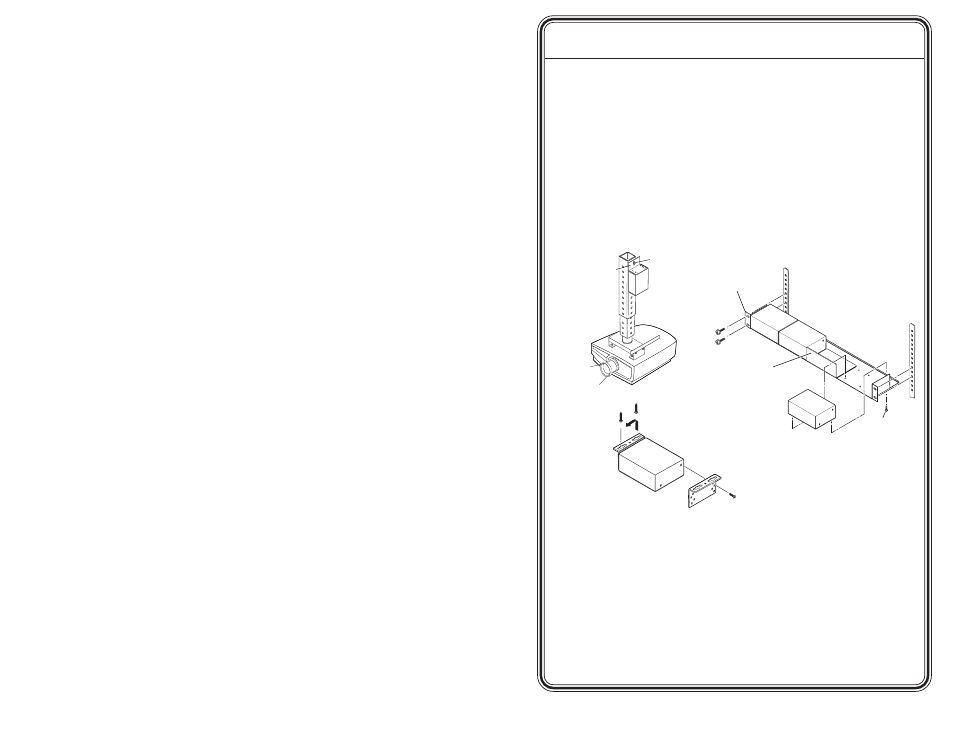

Mount the MDA EQ on a projector, under a desktop, or on a rack
shelf, as illustrated below. (The illustration shows a VersaTools ®
rack shelf; you can also use the 9-inch or 6-inch deep Universal or
basic 19-inch rack shelves. See Optional Accessories in appendix A.)
See Mounting the MDA EQ Series in chapter 2 for more options.
Step 3
Wire the MDA EQ power cord and connect it. To wire the power
cord, follow these steps, referring to the illustration on the next page.
a . Cut the DC output cord to the length needed.
b . Strip the jacket to expose 0.3 inches (7 mm) of the
conductors.
c . Slide the leads into the supplied captive screw plug and
lock them, using an Extron Tweeker (small screwdriver).
d . Use the supplied tie-wrap to strap the power cord to the
extended tail of the connector.
(2) 4-40 x 3/16"
Screws
Use 2 mounting holes on
opposite corners.
VersaTools Rack Shelf
1/4 Rack Width Front
False Faceplate
QS-1
Projector
Projector
Mounting
Bracket
Mounting
Bolt
