Installation and Operation, cont’d

VersaTools

®

MDA EQ Series • Installation and Operation

VersaTools

®

MDA EQ Series • Installation and Operation

2-4

2-5

6" Deep Rack Shelf

Front false
faceplate
uses 2
screws.

1/2 Rack Width Front False
Faceplate

Use 2 mounting holes on
opposite corners.

(2) 4-40 x 3/16"
Screws

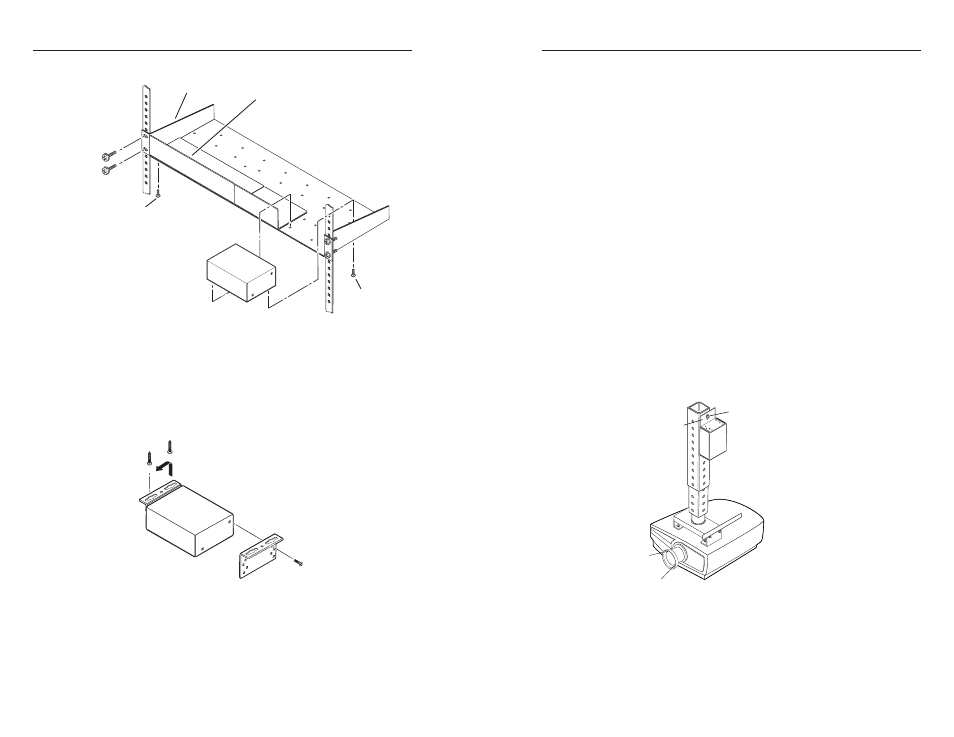

Mounting an MDA EQ on a 6-inch rack shelf

Furniture mounting

To furniture-mount the MDA EQ, use the optional MBU 123
mini under-desk mounting kit (part #70-212-01), as follows.

Preparing the MDA EQ for under-desk mounting

1

.

If rubber feet were previously attached to the bottom of the
unit, remove them.

2

Attach the mounting brackets to the MDA EQ with the
provided machine screws as shown in the previous figure.

3

.

Hold the unit with the attached brackets against the
underside of the table or other furniture. On the mounting
surface, mark the location of the bracket’s screw holes.

4

.

Drill 3/32" (2 mm) diameter pilot holes, ¼" (6.3 mm) deep
in the mounting surface at the marked screw locations.

5

.

Insert #8 wood screws into the four pilot holes. Tighten
each screw into the mounting surface until slightly less
than ¼" of the screw head protrudes.

6

.

Align the mounting screws with the slots in the brackets
and place the unit against the surface, with the screws
through the bracket slots.

7

.

Slide the unit slightly forward or back, then tighten all
four screws to secure it in place.

Projector mounting

To projector-mount the MDA EQ, use one of the optional
mounting kits described in the following sections.

PMK 100 Mini Projector Mounting Kit

The PMK 100 is a projector mounting kit (part #70-217-01)
designed for use with Extron 1U high, quarter-rack width
products like the VersaTools products. It allows them to be
mounted near or on a projector support.

Projector

Projector
Mounting
Bracket

Mounting
Bolt

Projector-mounting the MDA EQ using the
PMK 100 Projector Mounting Kit

Follow these steps to projector-mount the MDA EQ using the
PMK 100 kit:

1

.

If rubber feet are attached to the bottom of the MDA EQ,
remove them.
