ISM DVI Output Board Setup Guide, cont’d

ISM DVI configuration menu

Using the front panel menu buttons (Menu and Next), the ISM DVI configuration
menu can be accessed. From the Output Configuration screen, press Next until
reaching the #x Univ DVI menu (see the image below). Press Menu and Next to
navigate through the menus and use the front panel adjust knobs ({ [), to
change the settings as desired. For full menu details see the ISM 824 User’s
Manual
, online at

www.extron.com.

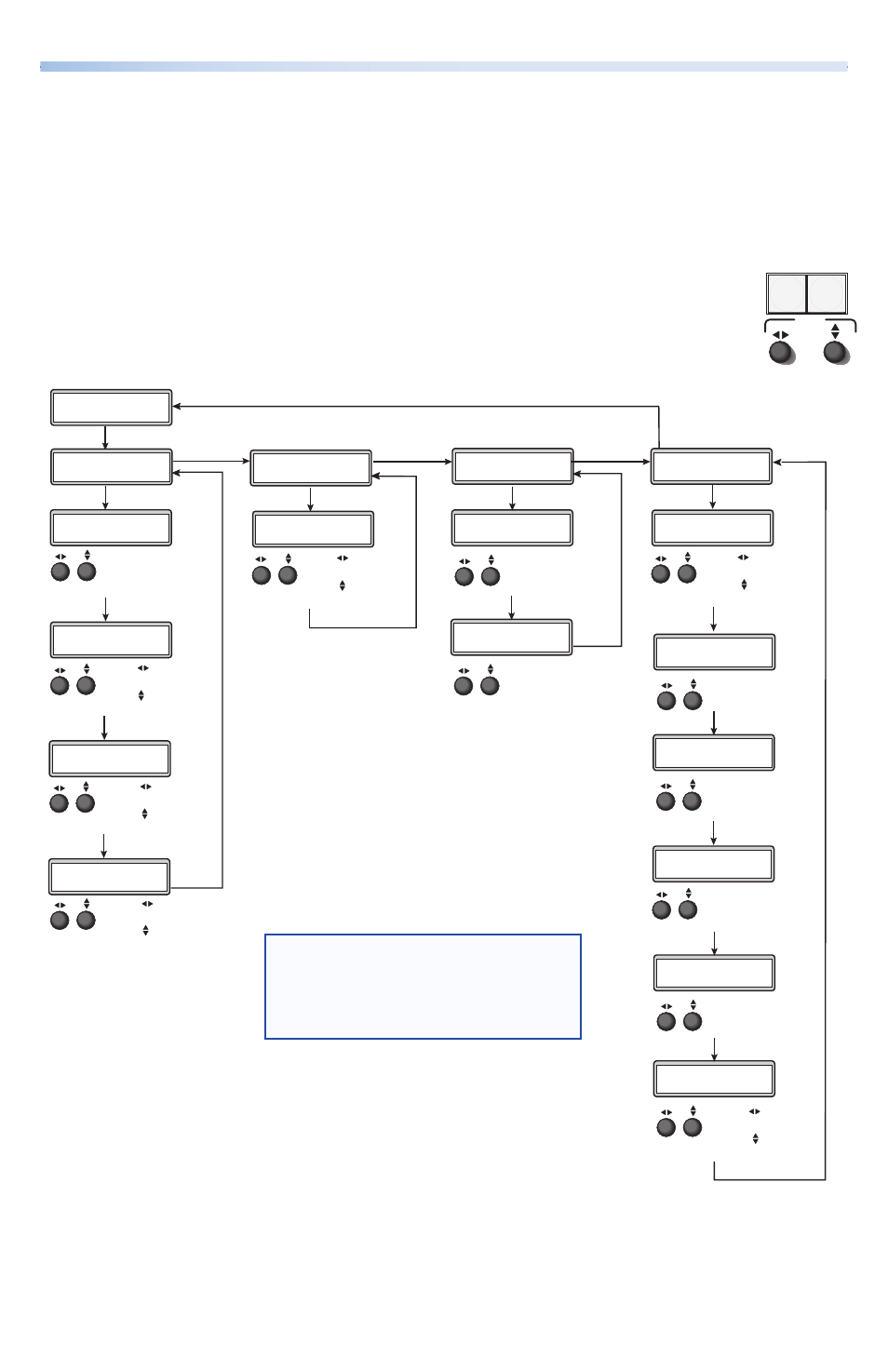

From the default cycle press Menu repeatedly to reach the Output
Configuration menu. Press Next (enters Select Output menu) and rotate
either Adjust knob to select the Univ DVI menu. Follow the figure below
to enter each menu and use the Adjust knobs to change value as desired.

Select Output

#7 Univ DVI

Next

Input Setup

#7 Univ DVI

Aspect Ratio

4:3

Next

Rotate either encoder
to select Aspect Ratio
(4:3 or 16:9)

Next

H

Start V

128

128

Rotate encoder to
adjust H(orizontal) start
Rotate encoder to
adjust V(ertical) start

Next

Total Pix

Phase

1728

00

Rotate encoder to
adjust Total Pix value
Rotate encoder to
adjust Phase value

Next

H

Active V

1283

1028

Rotate encoder to
adjust H active value
Rotate encoder to
adjust V active value

Menu

Next

Output Config

#7 Univ DVI

Rotate encoder
to adjust resolution
Rotate encoder
to adjust refresh rate

Next

1024x768

60

Resolution

Next

Menu

User Presets

#7 Univ DVI

1 2 3

Save Preset

Next

Rotate either encoder
to select a preset to
save current settings

1 2 3

Erase Preset

Next

Rotate either encoder
to select a preset
to erase

Advanced Config

#7 Univ DVI

Next

None

Test Pattern

Rotate either encoder
to select a test pattern

On

Blue Mode

Next

Rotate either encoder
to turn blue mode On
or Off

Off

Film Mode

Next

Rotate either encoder
to turn film mode On
or Off

Next

Menu

Next

Next

Rotate encoder to
select input
Rotate encoder to
turn On or Off

Input #2 Off

Auto Image

Auto Memories

Next

Rotate either encoder
to turn auto memories
On or Off

Off

Next

Input #2 Off

Full Screen

Rotate encoder to
select input
Rotate encoder to
turn On or Off

NOTE:

Within any submenu, press the Menu button
to go directly to the top level (Output Card
Configuration) menu. If, for 30 seconds, no
button is pressed or adjust knob is rotated,
the menu times out and reverts to the default
display cycle.

Input Setup

The Input Setup submenu allows configuration of aspect ratio, horizontal and
vertical start points, total pixels, phase value, horizontal and vertical area. Rotate
the Adjust knobs as required to change values.

MENU

NEXT

ADJUST

2
