Input cable lengths

The maximum input cable length is 250 feet (76 m) for a transmission rate of 165 MHz; a
cable length of up to 200 feet (61 m) can be used for a transmission rate of 225 MHz. Longer
cables may be used with a lower rate. High quality cable can increase the distance and rate of
transmission. Other factors affecting the maximum transmission distance and frequency include
the sensitivity of the input source and the display device.

NOTE: Avoid using couplers and adapters between cables, as this can result in signal

degradation.

This table shows the maximum cable lengths recommended for each resolution.

Video Resolution

Maximum Distance

(powered by source)

Maximum Distance (powered by

external power supply)

720p

150 feet (46 m)

250 feet (76 m)

1080i

150 feet (46 m)

250 feet (76 m)

1080p 8 bit

150 feet (46 m)

200 feet (61 m)

1080p 10 bit

150 feet (46 m)

175 feet (53 m)

1080p 12 bit

125 feet (38 m)

150 feet (46 m)

1024x768 (60 Hz)

150 feet (46 m)

250 feet (76 m)

1280x1024 (60 Hz)

150 feet (46 m)

250 feet (76 m)

1600x1200 (60 Hz)

125 feet (38 m)

200 feet (61 m)

1920x1200 (60 Hz)

125 feet (38 m)

200 feet (61 m)

NOTE: When the source is a PC, Extron recommends the HDMI 101 Plus be powered by

an external power supply.

Rear Panel Connections

HDMI INPUT

2

1

HDMI 101 Plus

POWER

12V
0.2A MAX

HDMI OUTPUT

4

3

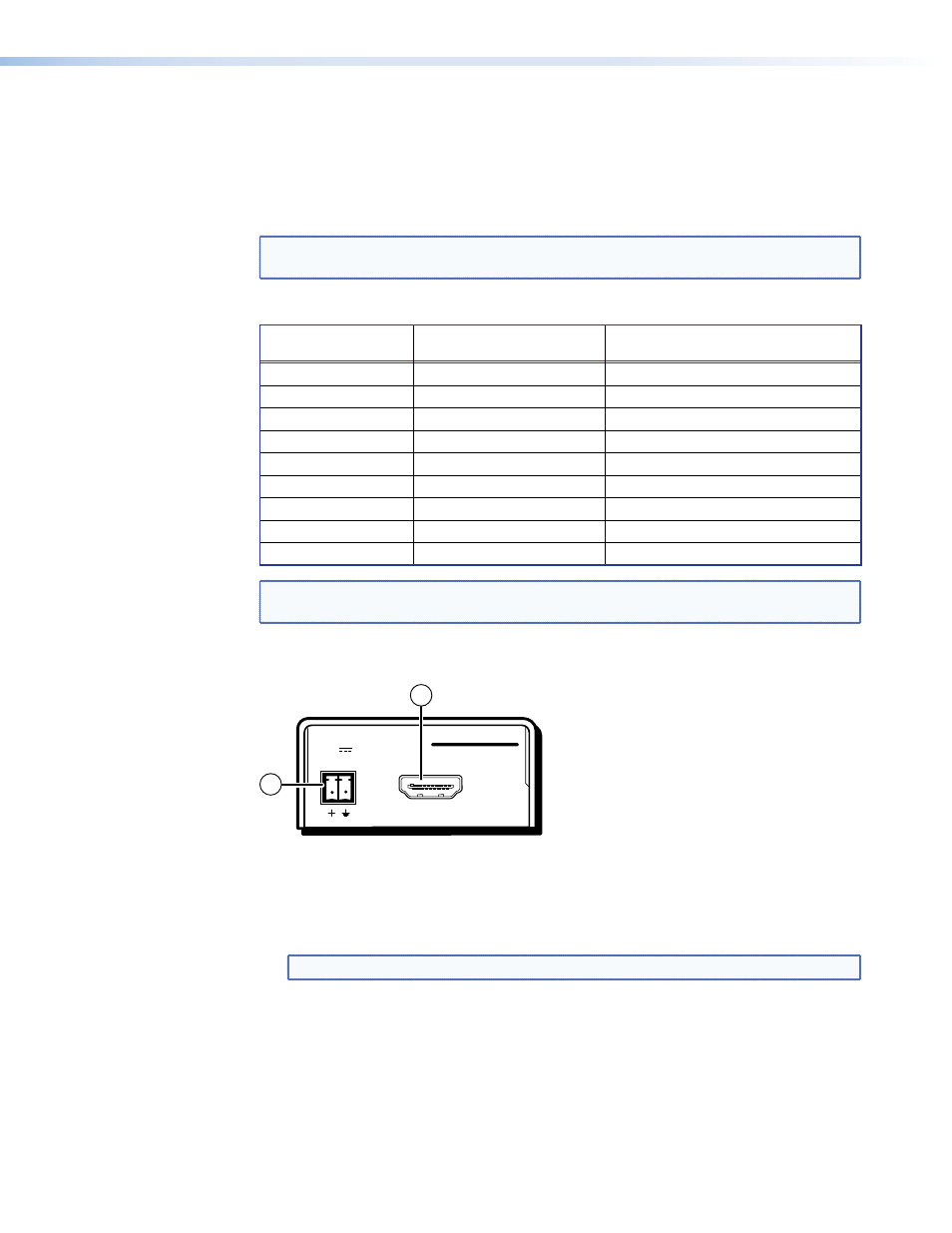

Figure 3.

HDMI 101 Plus Rear Panel

c

HDMI Output — Plug an HDMI cable from an output device into this female HDMI Type A

connector, following the pin configuration shown in the

table

on page 3.

Secure the HDMI connector to the HDMI 101 Plus with the LockIt

HDMI lacing bracket

provided (see the LockIt HDMI Lacing Bracket Installation Guide at

www.extron.com

).

NOTE: Use cables that are 15 feet (5 m) or less for the output.

HDMI 101 Plus • Panel Features

4
