GLI 1000 • Installation and Operation
5
GLI 1000 • Installation
Installation
4
Input
Ceiling
Mounting
Bolt
Projector
Mounting
Bracket
INPUT
OUTPUT
GLI 1000 15HD

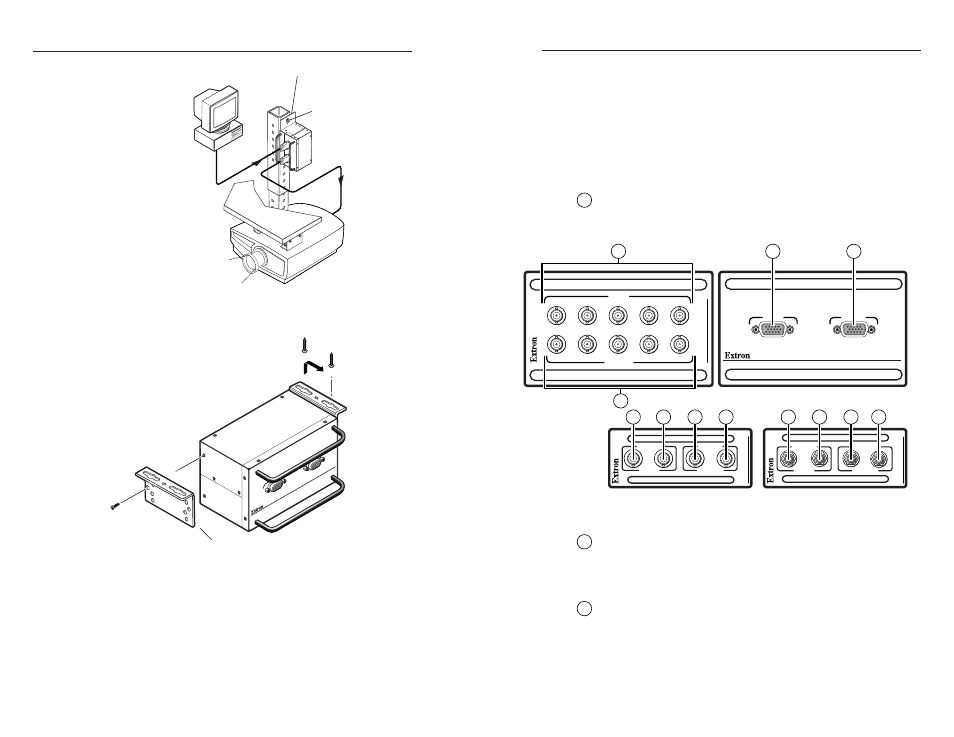

Figure 3 — Bracket mounting a GLI
IN
PU
T
OU
TP
UT
GL
I 1
00
0 15
HD
Table/
Wall-mount
Bracket
Mounting Screws (2 Plcs)
Each Side
#8 Screws (4 Plcs)
Each Side
Drill pilot holes
3/32" (2.4mm) diam.
1/4" (6.3mm) deep.
__
Figure 4 — Table mounting a GLI
2
.
Hold the GLI with the attached brackets against the underside of
the table or other furniture. Mark the location of the screw holes.
3
.
Drill 3/32” (2 mm) diameter pilot holes, 1/4” (6.3 mm) deep in the
mounting surface at the marked screw locations.
4
.
Insert #8 wood screws into the four pilot holes. Tighten each screw
into the surface until just less than 1/4” of the screw protrudes.
5
.
Align the mounting screws with the brackets’ slots and place the
GLI against the surface, with the screws through the bracket slots.
6
.
Slide the inhibitor slightly forward or back, then tighten all four
screws to secure the inhibitor in place.
Connections
Install the GLI near the display rather than near the source device.
GLI 1000 5BNC
1
Input connectors
— Connect an RGBHV, RGBS, RGsB, RsGsBs,
component video source, one or two S-video sources, or up to five
composite video sources to the five Input BNCs (figure 5).
GLI 1000 2BNC
GLI 1000 2RCA
GLI 1000 15HD
GLI 1000 5BNC
INPUT
INPUT
OUTPUT
R
G
B
H
V
R
G
B
H
V
OUTPUT
GLI 1000 15HD
GLI 1000 5BNC
VIDEO/Y
INPUT
VIDEO/C
OUTPUT
GLI 1000 2BNC
VIDEO/Y
INPUT
VIDEO/C
OUTPUT
GLI 1000 2RCA
1
2
3
4
5
5
6
6
7
7
8
8
Figure 5 — GLI 1000 connections
2
Output connectors
— Connect an RGBHV, RGBS, RGsB, RsGsBs,
or component video display, one or two S-video display, or up to
five composite video displays to the five Output BNCs.
GLI 1000 15HD
3
Input connectors
— Connect an RGBHV, RGBS, RGsB, RsGsBs, or
component video source to the Input 15HD connector or with an
optional SY-VGA cable, connect one or two S-video sources, or up
to five composite video sources.
