ECP 1000 • Operation ECP 1000 • Operation
Operation, cont’d
In the display of attached screens, a dot represents a
screen that is not attached.
Using the Menus
The ECP 1000 menus allow you to do the following:
• Change the backlight intensity (see below).
• Perform a system reset (see page 3-5).
• Program the ECP 1000 (see page 3-5).
Changing the backlight intensity
The buttons on the top panel of the ECP 1000 are backlit to
make them easier to see in rooms with low-level lighting. You
can control the amount of light the buttons emit by doing the
following:
1. From the default screen, press the Menu button. The Back
Light menu appears (figure 3-3).

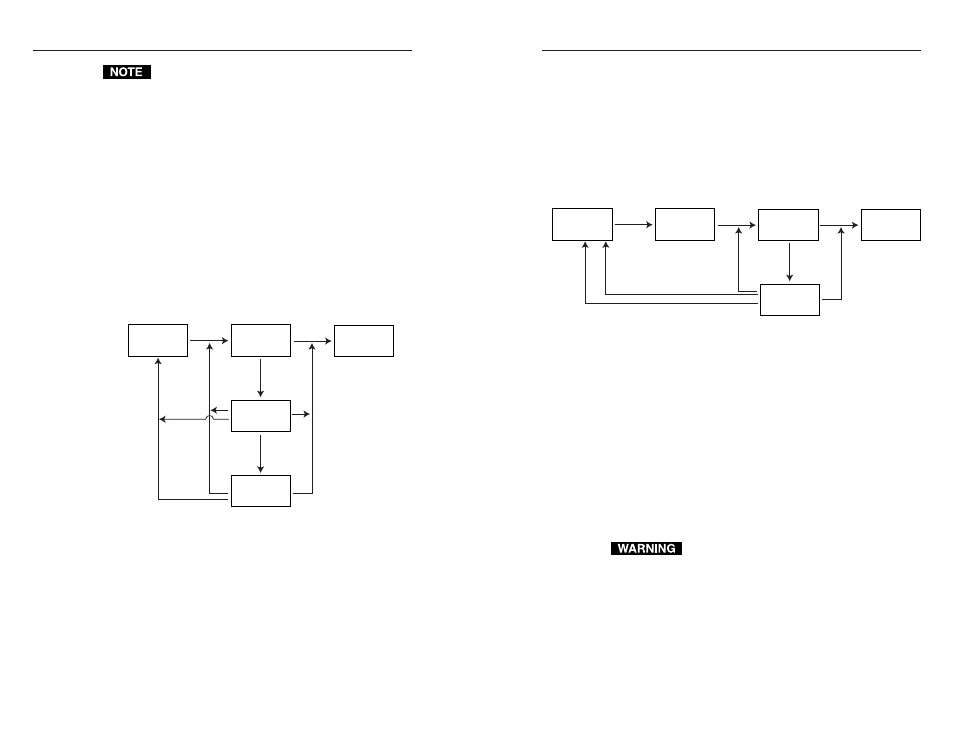

Figure 3-3 — Changing the backlight
2. Press the Next button. The Intensity screen appears.
3. Rotate the Adjust knob until the backlight is at the desired
intensity.
4. Do one of the following:
• To exit the LCD menu, press the Menu button three
times. The default screen appears.
• To proceed to the System Reset menu, press the
Menu button once.
• To return to the Back Light menu, press the Next
button once.
Performing a system reset
A system reset returns all settings to their factory defaults. It
removes all user-programmed effects, and returns pre-
programmed effect buttons to their original effects. It also
cancels the screen selection button settings.
To perform a system reset, do the following:
1. From the default screen, press the Menu button twice. The
System Reset menu appears (figure 3-4).
Figure 3-4 — Performing a system reset
2. Press the Next button. The Take to Confirm menu
appears.
3. Do one of the following:
• To confirm the system reset, press the Take button.
The system reset occurs, and the default screen
appears.
• To cancel the system reset and exit the LCD menu,
press the Menu button twice. The default screen
appears.
• To proceed to the Program Mode menu, press the
Menu button once.
Programming the ECP 1000
When the ECP 1000 is in program mode, it cannot
control effects on the SGS 408.
The SGS 408 Control Program allows you to program the
ECP 1000. Before the software can communicate with the
ECP 1000, the ECP 1000 must be in program mode. To enter
program mode, do the following:
1. From the default screen, press the Menu button three
times. The Program Mode menu appears (figure 3-5 on
the next page).
3-4 3-5
SGS 1 . 3
1.0 SEC
BACK
LIGHT
Press
Menu
button
TAKE TO
CONFIRM
Press
Next
button
Press Take button
Press Menu button twice
SYSTEM
RESET
Press
Menu
button PROGRAM
MODE
Press
Menu
button
Press
Next
button
Press
Menu
button (System
reset
occurs)
(System
reset
does
not
occur)
SGS 1 . 3
1.0 SEC
BACK
LIGHT
Press
Menu
button
INTENSITY
20%
INTENSITY
30%
Press
Next
button
Rotate
Adjust
knob
SYSTEM
RESET
Press
Menu
button
Press
Next
button
Press
Menu
button
Press
Menu
button
three
times
