Memory Preset area
The Memory Preset area provides tools to save and recall memory presets:

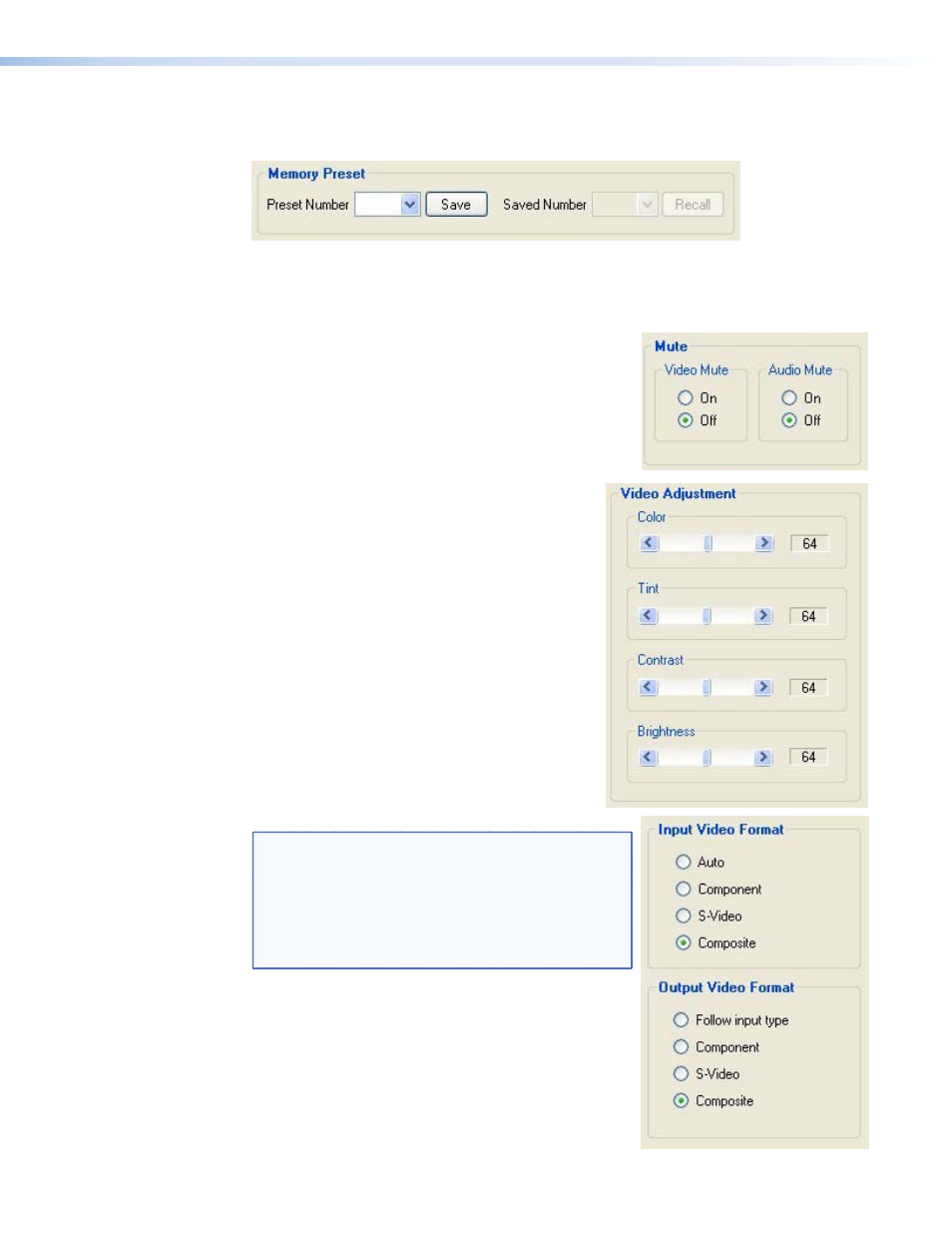

Figure 15. Memory Preset Area
Select a Preset Number from the dropdown menu and click Save . The current values of
color, tint, contrast, and brightness are saved as a Memory Preset. Previously saved memory
presets can be called by selecting a Saved Number from the dropdown menu and clicking on
Recall .
Mute area
Select either the On or Off radio buttons in the Mute area
to mute or unmute the video and audio signals.
Video Adjustment area
Use the sliders to adjustment the color, tint, contrast,
and brightness of the picture that is displayed. All
four of these variables can be adjusted between 0
and 127, with the current value displayed in the text
box to the right of the corresponding slider.
Video Format area
Clicking the radio buttons in the Video Format
area selects the input format (
Auto , Component ,
S-video , or Composite ) and output format
( Follow input type , Component , S-video , or
Composite ).
NOTE: The transmitter converts the input signal
into a proprietary signal type, which passes
through link 1 to the receiver. The receiver
converts the signal back to the required
signal type. This allows the input signal to be
transcoded to meet the requirements of the
output device.
When there are two video sources, S-video through the
4-pin mini DIN and another format through the BNC
connectors, the choice of button determines which
input format is transmitted. When Auto is selected, the
transmitter automatically detects the input format.
When follow input type is selected for the output format,
the output signal is in the same format as the original
input signal.
