EDID 101D/EDID 101V • Installation and Operation
Installation and Operation, cont’d
8
Panel Features
DVI OUTPUT (DISPLAY)
DVI INPUT (SOURCE)
POWER
12V
0.4A MAX
EDID
SELECT 60
Hz
50
RECORD
DIGITAL
SIGNAL
ANALOG
ON
1 2
VGA OUTPUT (DISPLAY)
CONFIG
VGA INPUT (SOURCE)
POWER
12V
0.4A MAX
EDID
SELECT 60
Hz
50
RECORD SPARE
ON
1 2
EDID 101D
EDID 101V
g a b c d e f

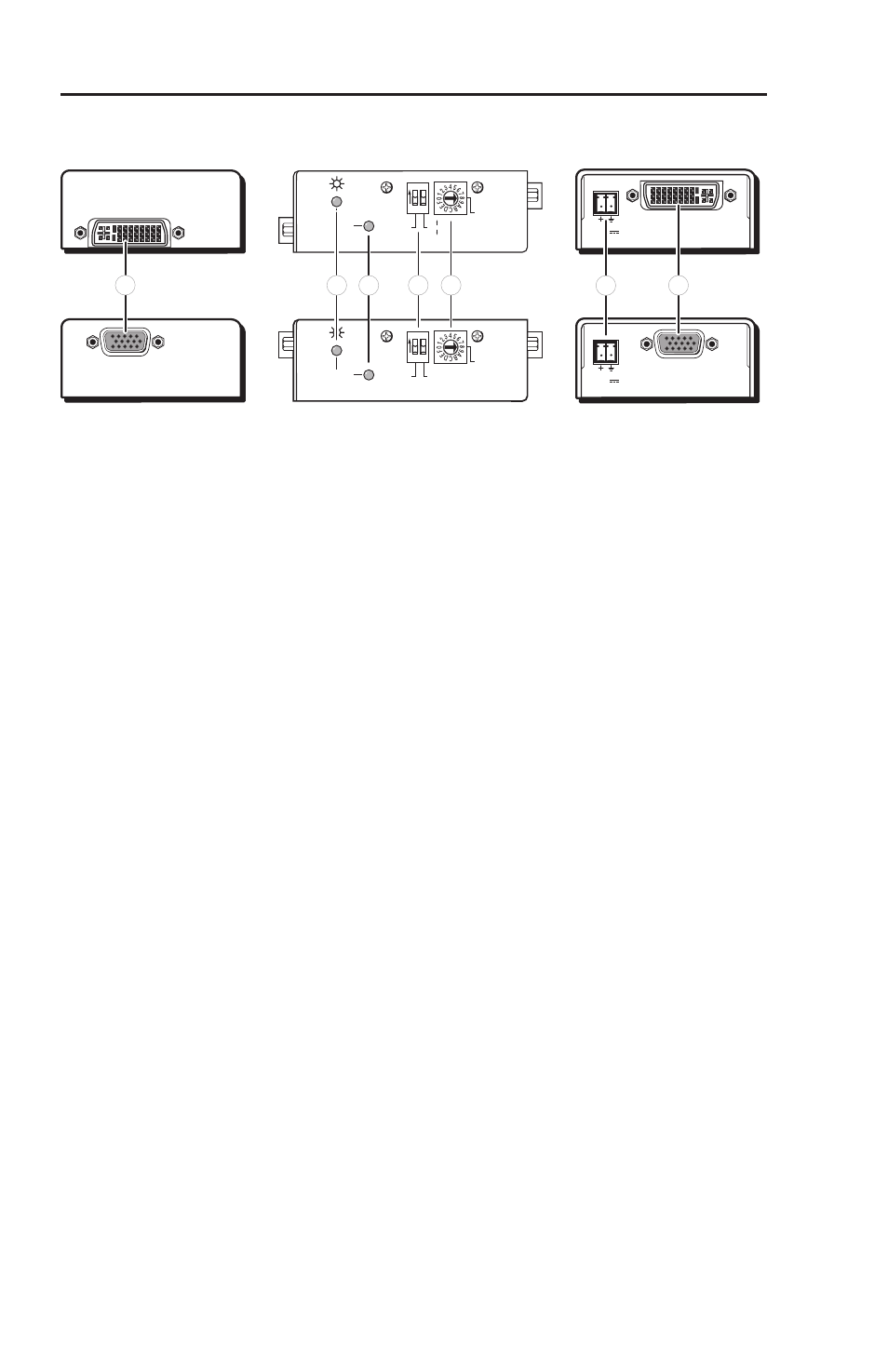

EDID 101 Panel views
Side panel
a
Power LED — Dual-color multi-purpose LED:
Green — Indicates power is connected from the 5 VDC pin
of a DVI/VGA video source or by the optional 12 VDC
power supply ( e ).
Flashing red — During the recording process, indicates a new
EDID being written to memory, returning to solid green
when the write completes.
b
Record button — This recessed button is used to
initiate recording of a connected display device EDID to
user-programmable memory (position 0 on the rotary switch).
c
DIP switch — Position 1 is used to select the vertical refresh
frequency for the pre-programmed EDID. When switched to
"Off", the EDID selected by rotary positions 1 through F are
based on 50 Hz. When switched to "On", they are based on
60 Hz (default position).
Position 2, (not used on EDID 101V; labeled "Spare"), selects the
signal format, digital or analog, for the pre-programmed EDID.
d
EDID Rotary Switch — Position 0 of this 16 position rotary
switch is used to record an EDID from a display.
Positions 1-F select pre-programmed EDID resolutions.
N Configuring the EDID 101 rotary and DIP switches
allow a user to select a pre-programmed EDID based on
the native rate of a display (i.e. 1280x1024 @ 60 Hz)
and a desired signal type (i.e. digital), but does not
necessarily force a video source to output that rate. Since
EDID is not limited to reporting a single video rate
(i.e. the native rate), each Extron EDID also lists other
common video rates for use by the video source.
