Furniture mounting
The EDID 101 can be mounted under furniture using optional
mounting kit MBU 125 (part #70-077-01) as follows:

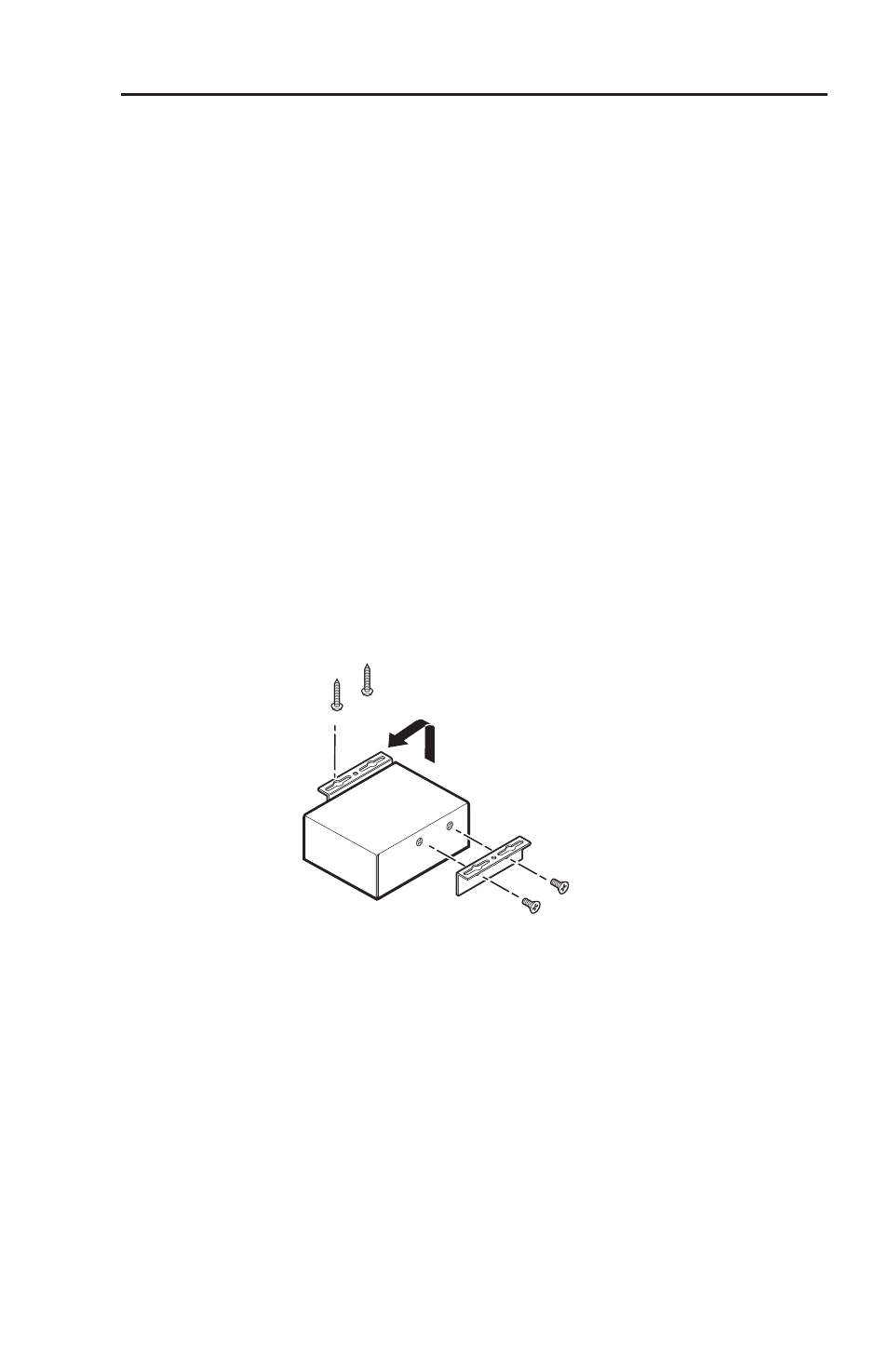

1. Attach the mounting brackets to the EDID 101 with the
provided machine screws as shown in the figure below.
2. Hold the EDID 101 with the attached brackets against the
underside of the table or other furniture. Mark the location
of the screw holes in the brackets on the mounting surface.
3. Drill 3/32" (2.4 mm) diameter pilot holes, 1/4" (6.3 mm)
deep in the mounting surface at the marked screw locations.
4. Insert #8 wood screws into the four pilot holes. Tighten each
screw into the mounting surface until just less than 1/4" of
the screw head protrudes.
5. Align the mounting screws with the slots in the brackets and
place the EDID 101 and brackets against the surface, with the
screws through the bracket slots.
6. Slide the EDID 101 slightly forward or back, then tighten all
four screws to secure the unit in place.
Mounting the EDID 101 under a desk
N When mounting the EDID 101 under a desk using an
MBU 125, the EDID configuration switches located
on the side of the product will no longer be accessible.
Ensure the EDID 101 is configured prior to mounting.
See page 10, "EDID 101D/EDID 101V Operation" for
programming details.
