EDID 101D/EDID 101V • Installation and Operation

Installation and Operation, cont’d

6

Rack mounting procedures

The unit can be mounted in the front or rear of any of these rack

systems:

RSF 123 rack shelf kit for 3.5" deep products

(part #60-190-20)
RSB 123 basic rack shelf kit for 3.5" deep products

(part #60-604-20)
RSU 126 universal rack shelf kit for 6" deep products

(part #60-190-10)
RSB 126 basic rack shelf kit for 6" deep products

(part #60-604-10)
RSU 129 universal rack shelf kit for 9.5" deep products

(part #60-190-01)
RSB 129 basic rack shelf kit for 9.5" deep products

(part #60-604-01)

To rack mount the EDID 101D/EDID 101V:
1.

If necessary, remove the rubber feet.

2.

Secure the EDID 101 to the shelf with two 4-40 x 3/16"

screws in opposite corners of the base (see below).

3.

Install false faceplate(s) or other unit(s) to the rack shelf.

4.

Attach the shelf to the rack with the four provided

10-32 x 3/4" bolts.

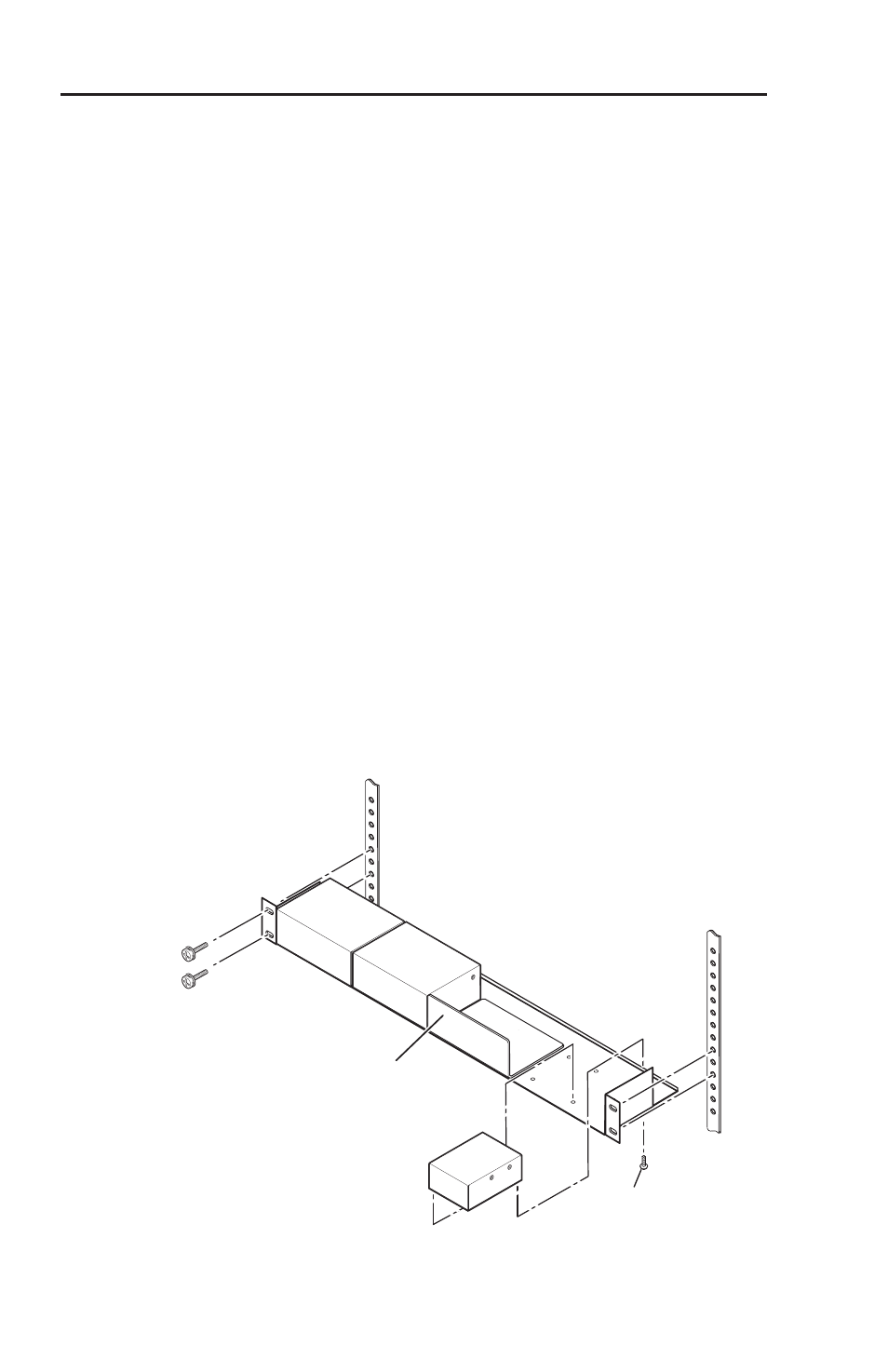

EighthRackVersaToolsShelf

(2) 4-40 x 3/16"
Screws

Use 2 mounting holes on
opposite corners.

1/4 Rack Width Front
False Faceplate

Rack mounting the EDID 101
