DTP HDMI 230 D Transmitter and Receiver • Installation and Operation

6

Final installation

After testing and making any adjustments, do the following:

1.

At the power outlet, unplug the power supply.

NOTE: One power supply can power both the transmitter and the receiver (see

Power Supply Wiring

on page 11 and

Ground Loops

on page 14).

2.

Mount the transmitter or receiver into the wall box or mud ring, and attach the supplied
Decora faceplate to the unit (see

figure 2

on page 4).

3.

At the power outlet, reconnect the power supply. This powers up both units.

Transmitter Connections

The DTP HDMI 230 D transmitter is in an enclosure that can be mounted in UL-listed
standard wall boxes with Decora-style face plates.

Transmitter Front Panel

INPUTS

AUDIO

Tx Rx G Tx Rx

RS-232

IR

OVER DTP

1

2

3

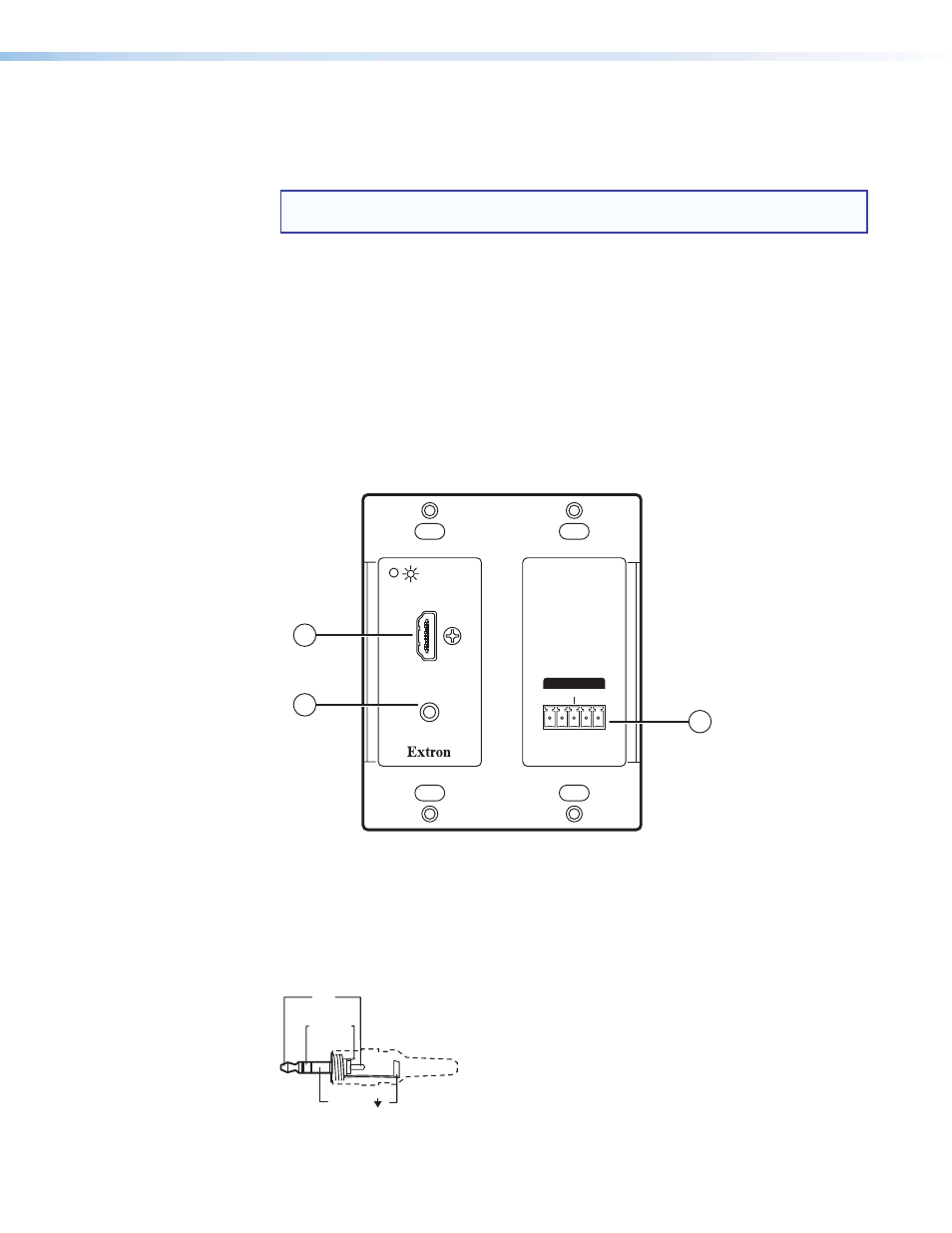

Figure 4.

DTP HDMI 230 D Transmitter Front Panel Connectors

a

HDMI input connector — Connect an HDMI cable between this port and the HDMI
output port of the digital video source.

b

Audio input — Connect an unbalanced stereo audio source to this 3.5 mm mini stereo
jack. Figure 5 shows how to wire the audio plug.

Sleeve ( )

Ring

Right (-)

Tip

Left (+)

Figure 5.

Audio Input Connector Wiring
