Extron Electronics DTP T USW 233 User Guide User Manual
Page 25
DTP T USW 233 • Reference Information
20
3.
Locate and
lift off jumpers JMP1 and JMP2 (see figure 12).
JMP1
JMP2

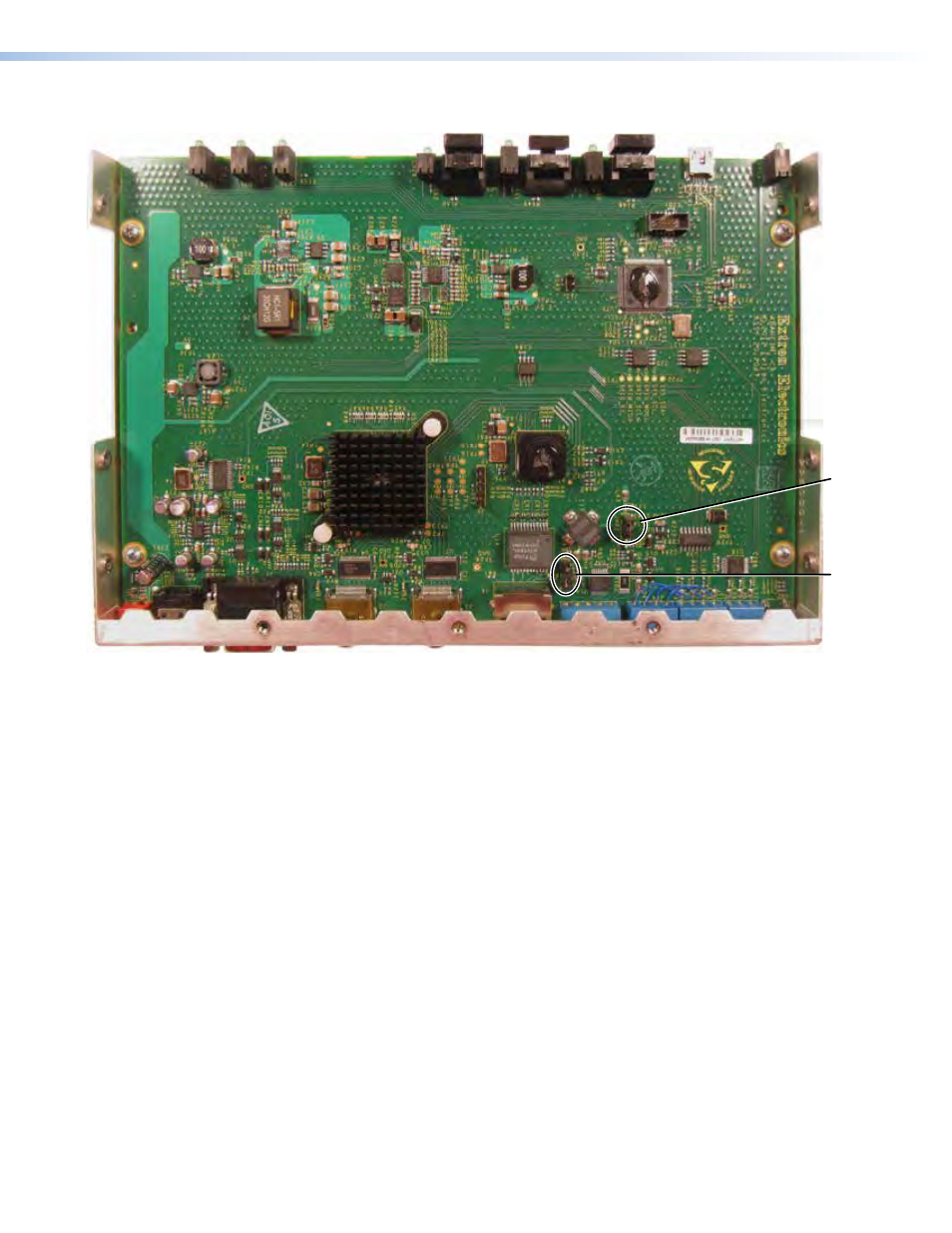

Figure 12.
Jumper Locations
4.
Reinstall the switcher cover, securing it in place with the screws removed in step 2.
5.
Reinstall the switcher in the rack or other installation option (see
on page 18).
6.
If you are using shielded cable, disconnect the cable shield from the connector at
either end of the cable.
7.
See the manual for the applicable receiver, DTP DVI 230 Rx or DTP HDMI 230 Rx,
available on the Extron website (
www.extron.com
), and remove the ground jumpers in
the receiver.
8.
Obtain a second 12 V power supply (one supply is provided with the switching
transmitter and normally powers both units), and locally power both units (see
on page 7).
