CC 200 Cable Retractor Adapter Kit

Planning

Before installing the adapter, be certain there is
adequate space under the table for the retractable system with the
attached bracket.
Determine the retractor mounting orientation: horizontal or vertical.
If only one retractor is mounted, use a filler module, part #70-678-08
in place of the second retractor.
If mounting horizontally, the horizontal
bracket kit, part #70-678-00, is required.

68-1894-50

Rev. B

06 11

The CC 200 Bracket Kit, part #70-678-10, allows one
or two Cable Retractors to be installed in the
Cable Cubby

®

200 enclosure. The bracket kit

adapts the AAP opening of the enclosure to
allow the installation of a Cable Retraction
System for Cable Cubby Enclosures.

CC 200 Cable

Retractor Bracket Kit

(x4)

CC 200

Bracket

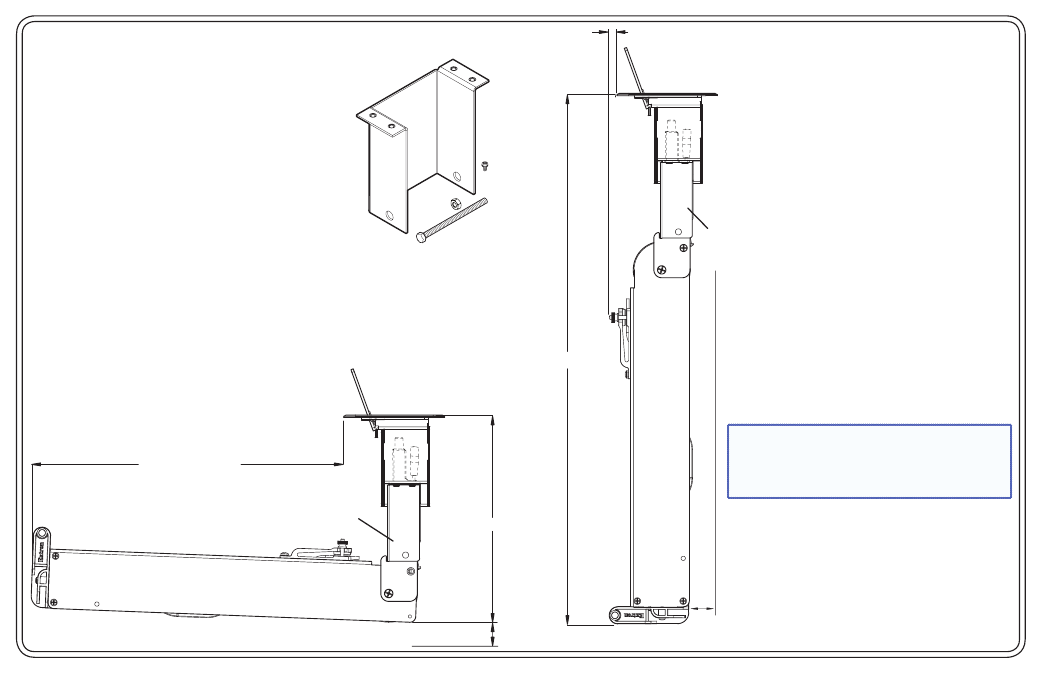

Horizontal Mounting Clearance

9.0" (228.6 mm)

3.0"

(76.2 mm)

13.6" (345.4 mm)

CC 200

Bracket

Vertical Mounting Clearance

3.0"

(76.2 mm)

23.3" (591.8 mm)

0.33" (8.4 mm)

NOTE: To prevent objects from impeding

cable retraction, ensure at least
3 inches of clearance from the
exposed cable side of the enclosure.
