Xylem SDI-12 RADAR User Manual
Page 17
Installation & Maintenance
15

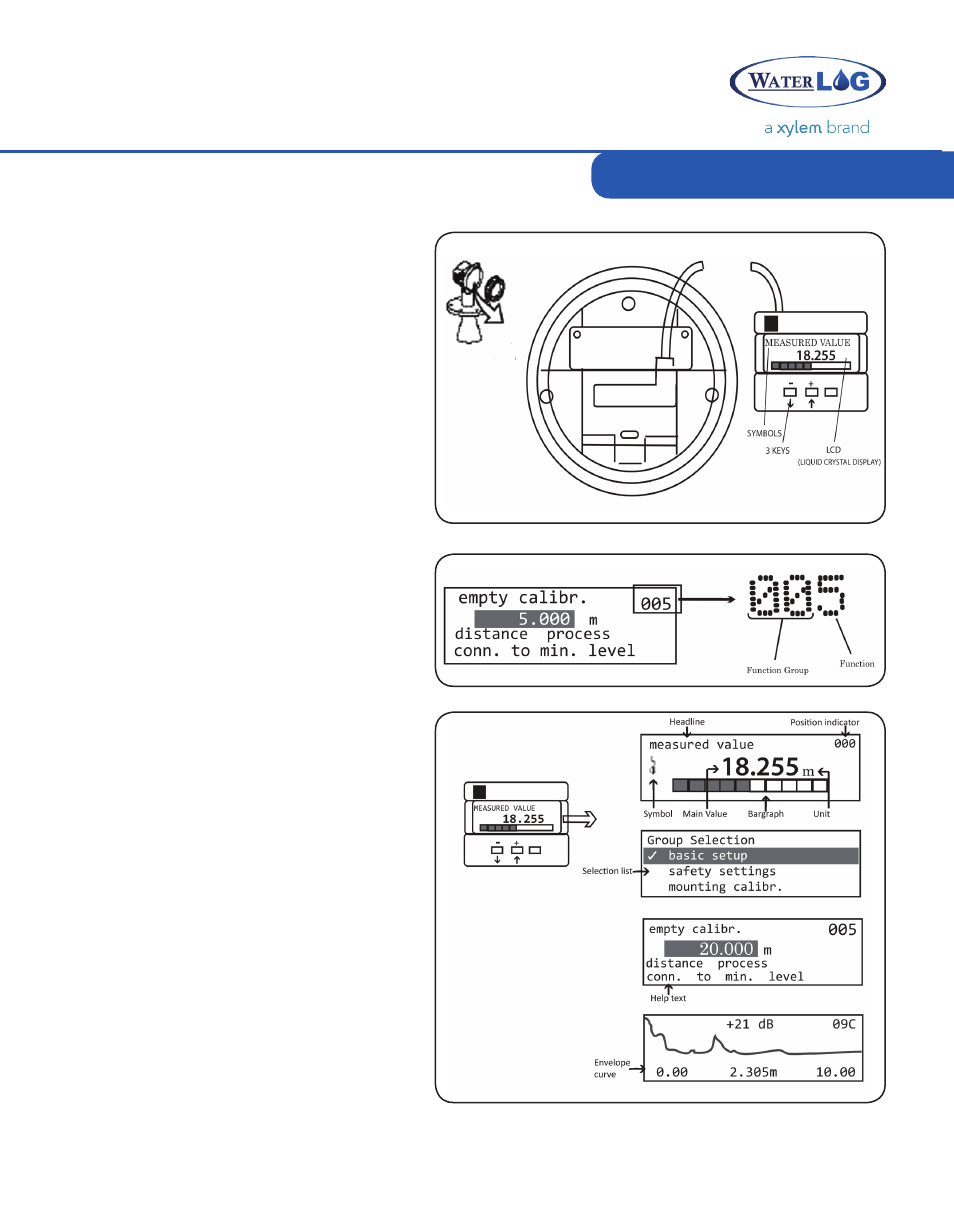

The built-in LCD display normally displays
Distance (distance from the radar unit to
the water). The display has three buttons
and can be used to monitor and edit the
radar unit configuration. To access the
display, unscrew the housing cover (the
round casting with the glass window).
Take precautions to not contaminate or
dislodge the o-ring seal in the cover. The
LCD display has a short cord and can be
detached from the radar for convenience.
Built-in LCD Display
each function menu has a Function Group
and Function number in the upper right
hand corner of the screen. Together they
provide orientation within the menu map.
