9. Physical Activation
The Chatter unit is activated physically by moving the jumper shown on page
and in the figures below from position ”OFF” to position ”ON”.

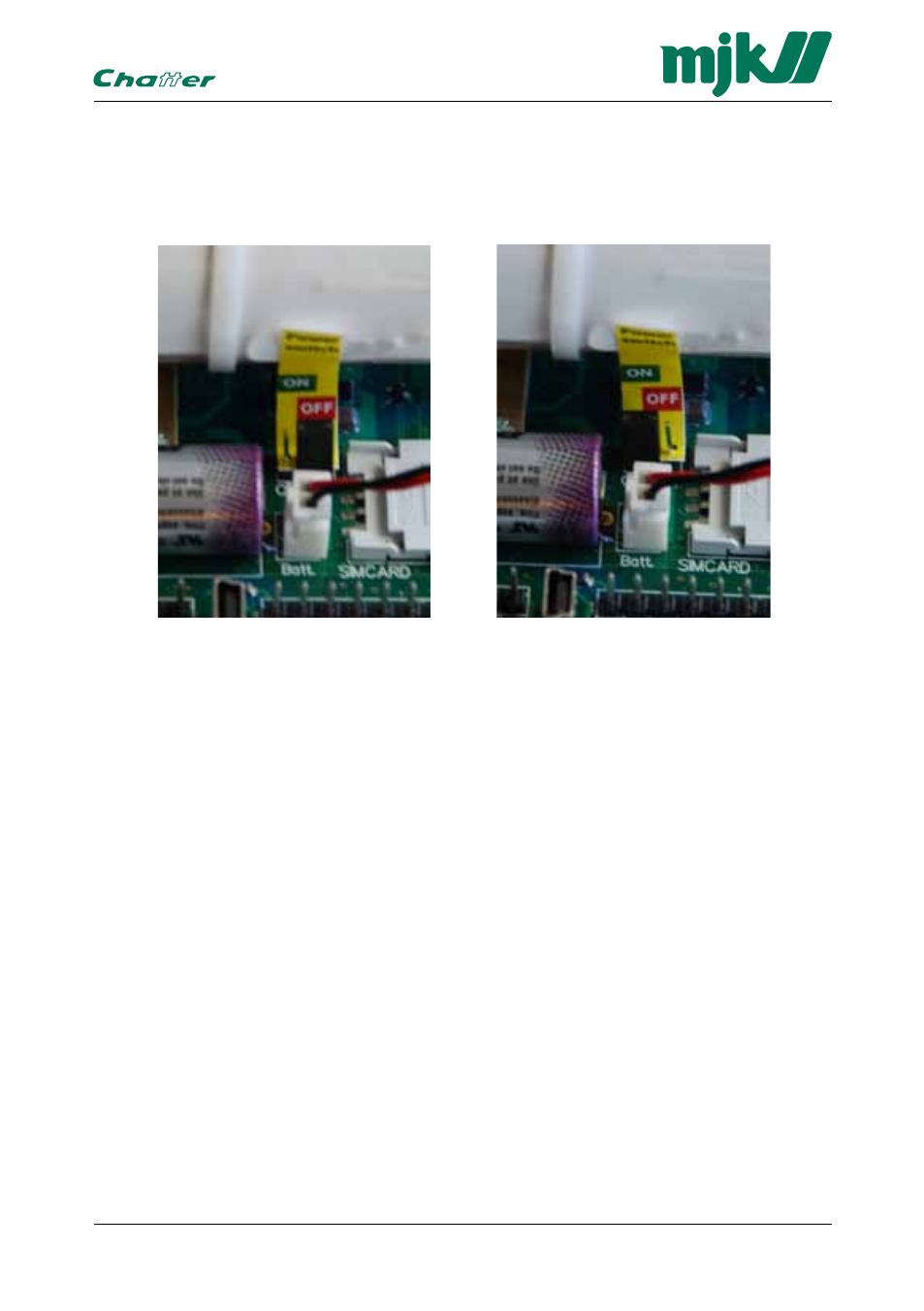

Figure 23. On-Off Jumper from ”OFF” to ”ON” position
9. Physical Activation
Data Logger
31
