6. Gain Access to SIM Card and Battery

To change SIM card or battery in a Chatter unit, you must gain access to the
unit’s circuit board.

6.1 Pipe Mounting

1. Open and remove the padlock that prevents unauthorized access to the

Chatter unit.

2. Turn the green top approx. 1 cm counterclockwise (but do not lift it off!)
3. Leave the top on for about two minutes and then lift it off.

This is to ensure a valid measurement and to allow time for sending an
alarm to the server.

4. Remove the pressure transmitter connector by turning the union counter-

clockwise.

5. Dismount the cover plate by removing the seven screws that secures it:

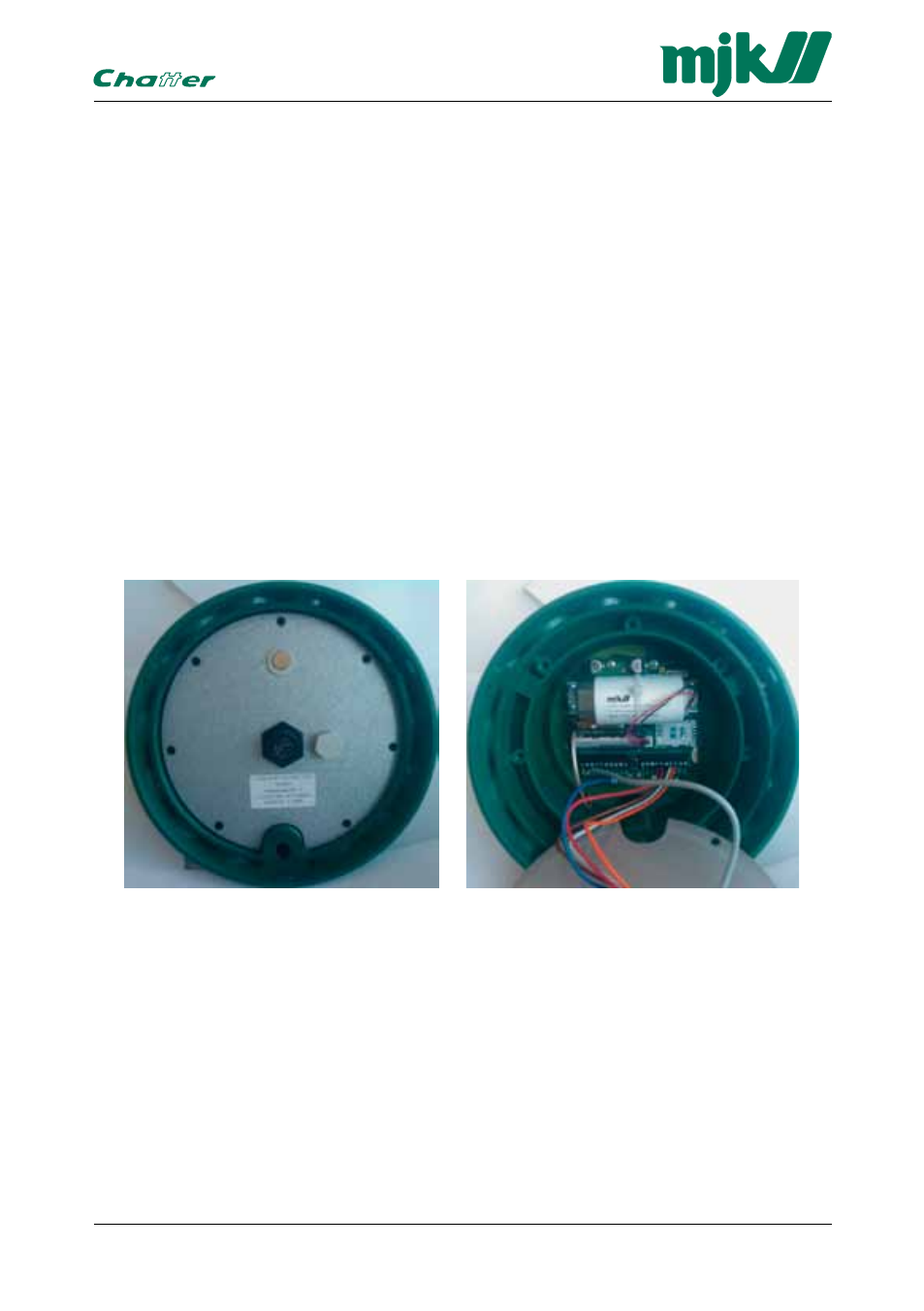

Figure 13. Pipe Mounted Chatter Unit

7. Re-assemble the Chatter unit.

IMPORTANT: Make sure that the leads do not get stuck or become
squeezed between the top, the rubber gasket and the cover plate.

8. Tighten the screws and make sure that the cover plate fits closely to the

rubbber gasket.
