11. Mount the Chatter top on the base by turning the top approx. 1 cm
counter-clockwise, until the holes for the security padlock align.
Expect a slight drag over the last few millimeters. This is due to the activa-
tion of the intruder alarm (a magnetic switch between top and base).
12. Mount the padlock (see figure below).
12.

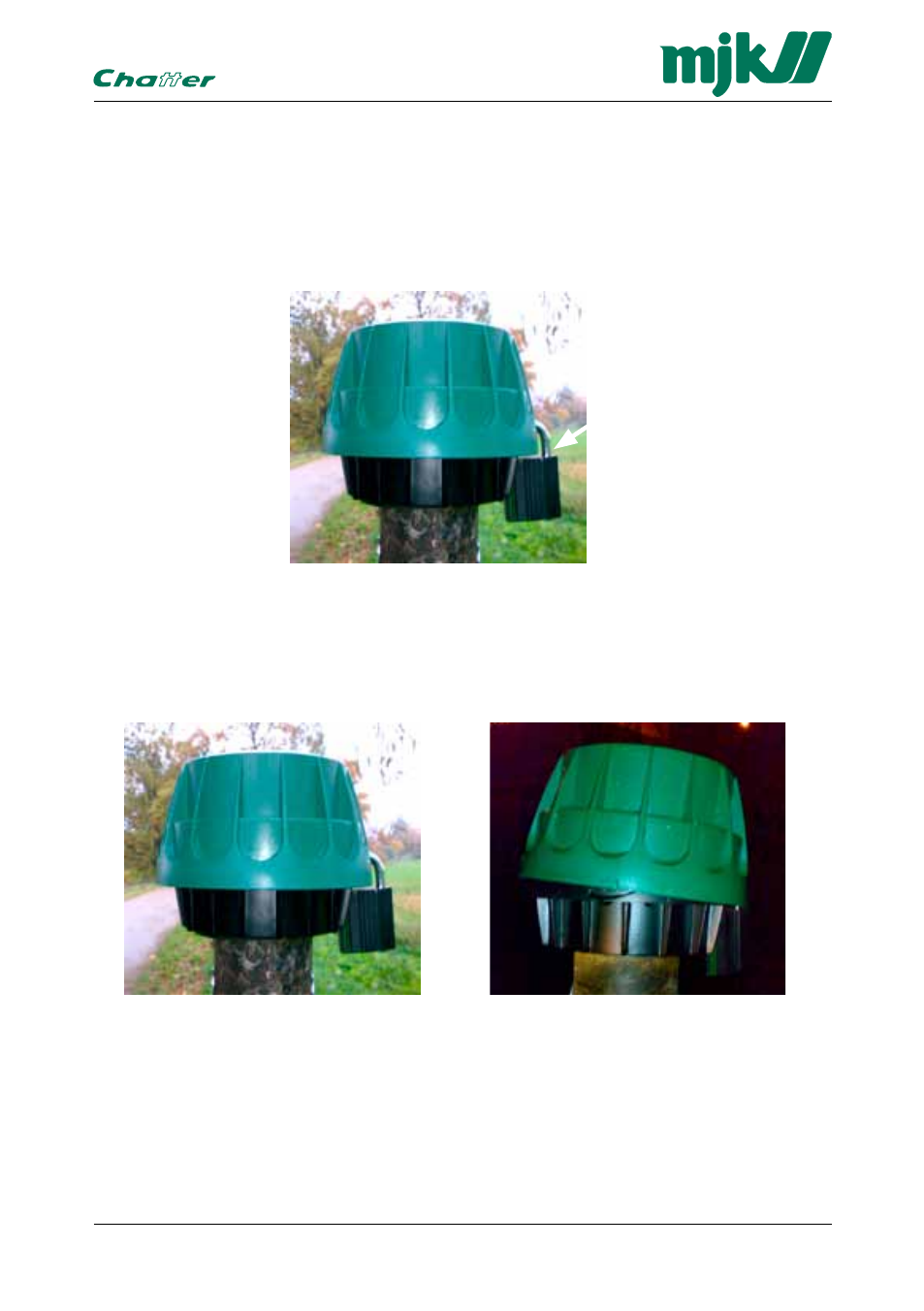

Figure 11. Mount the Padlock
13. Make sure that the green Chatter top is mounted and secured correctly:
Right
WRONG!
Figure 12. Top Mounted and Secured Right and Wrong
5. Mounting
Data Logger
19
