Data logger – Xylem CHATTER Hardware Manual User Manual
Page 17

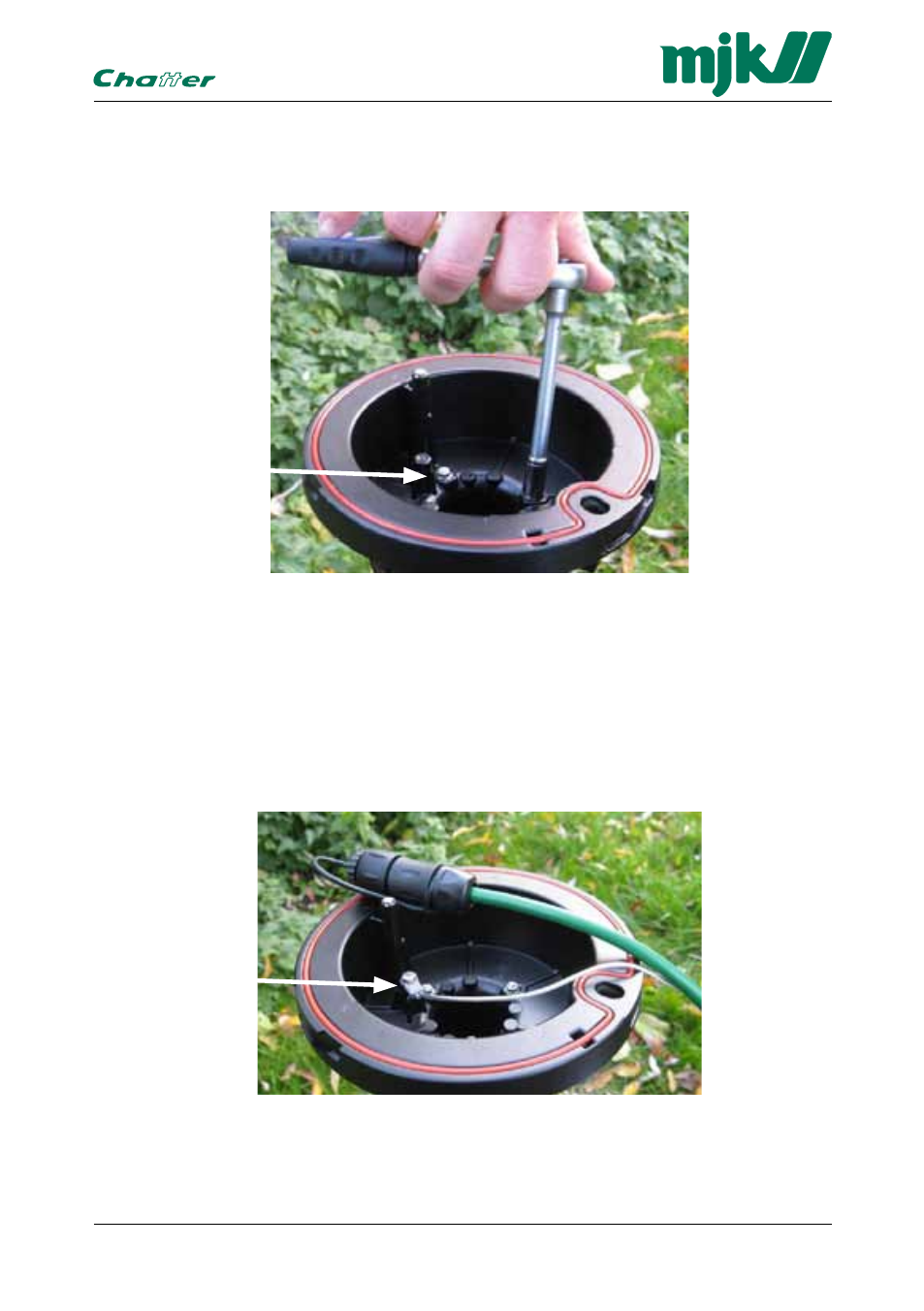

7. Tighten the screws with a 7 mm spanner until the base is bolted onto the
pipe:
7.
Figure 7. Tighten the Screws with a Spanner
From here on the base
may not be moved, rotated or lifted!
8. Fasten the security wire of the pressure transmitter into the base before
the pressure transmitter is placed inside the pipe.
IMPORTANT: Use a large washer between the wire and the screw, so
that the wire can not escape the base!
8.
Figure 8. Fasten the Security Wire
5. Mounting
Data Logger
17
