3. Carefully insert the SIM card into the grooves that hold the card, and finally
push it to the end stop.
IMPORTANT: The SIM card must align with the grooves all the way
down. Likewise the SIM card’s right, cut-off corner must point up-
wards and to the left (see arrow):

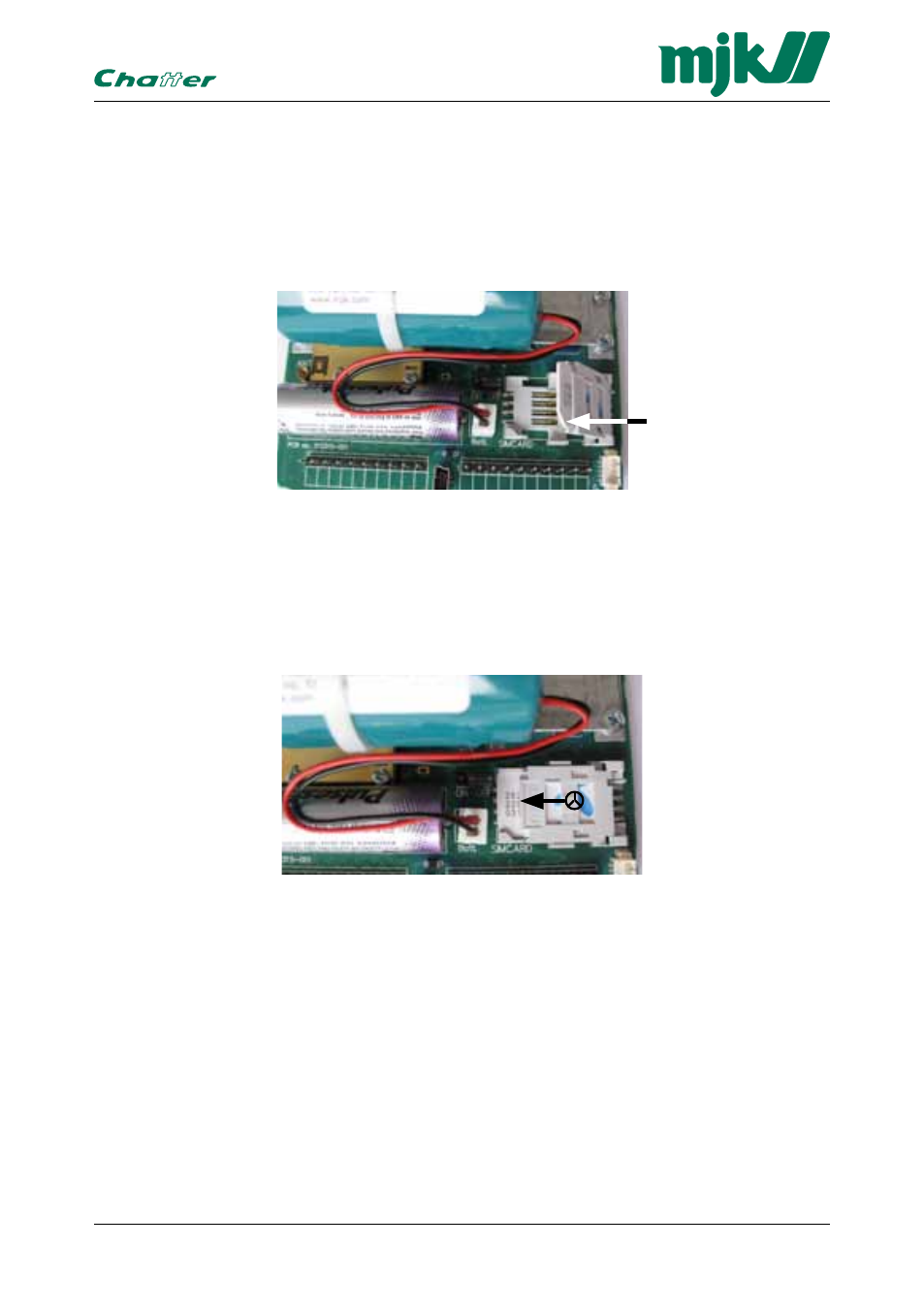

Figure 19. SIM Card Correctly Inserted into the Grooves
4. Secure the SIM card in the holder by applying light pressure on the upper
part (the lid) and at the same time dragging it towards the middle of the
circuit board (here: to the left as indicated by the arrow).
Figure 20. SIM Card Secured in the Card Holder
5. If there is a PIN code on the SIM card, the code must be added to the
Chatter configuration during setup.
This can be achieved with the MJK utilities for local configuration: ”Chatter
Setup Tool”.
6. You can also use ”Chatter Setup Tool” to change to another APN, or to
change other parameters related to the call settings.
7. Re-assemble and lock the Chatter unit as described in section
Access to SIM Card and Battery
