MANUAL
HMI display
24

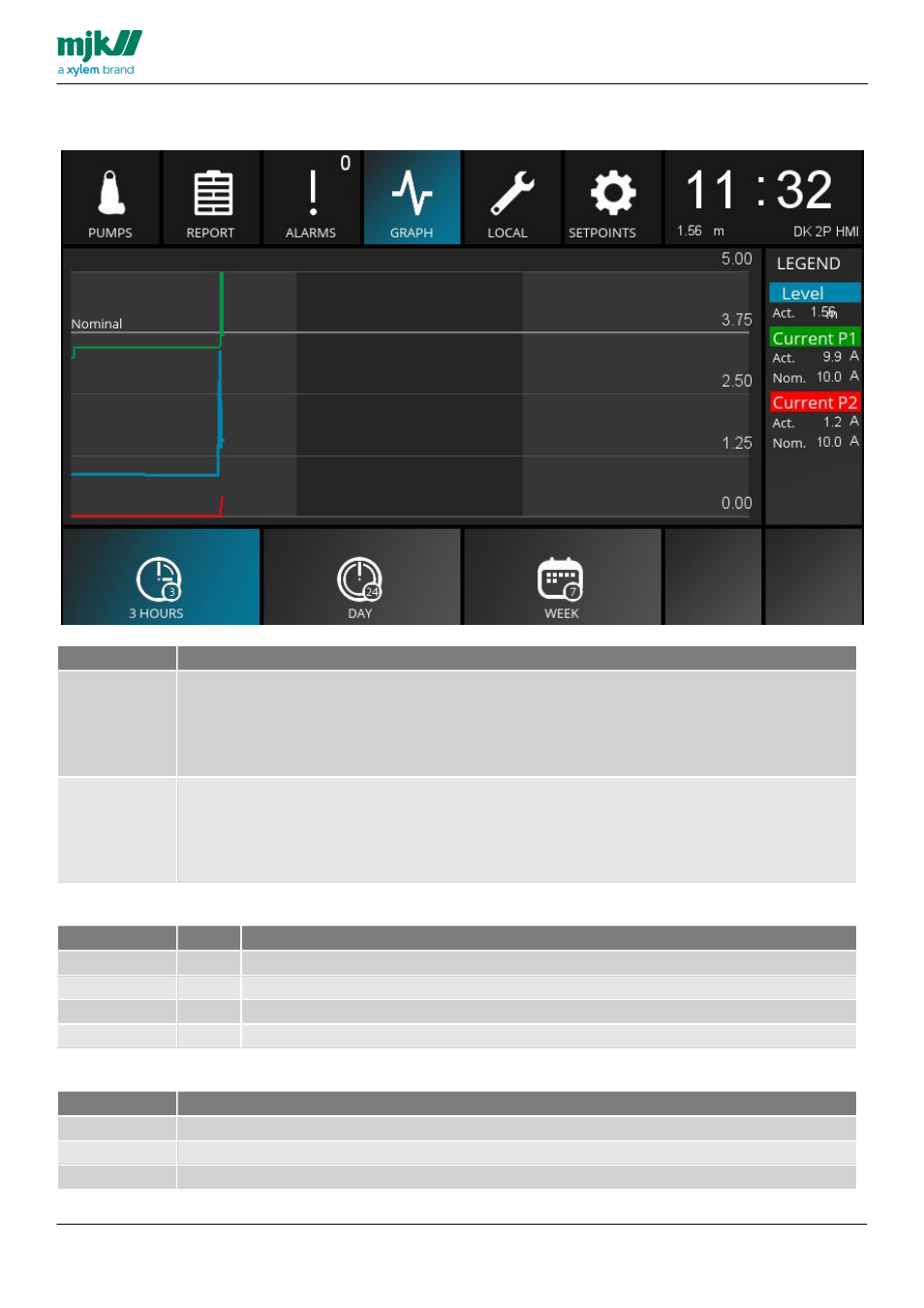

Graph
This screen provides a graphical illustration of the power consumption during selected periods.
Menu Item Description
Graphs Visual illustration of the level and power consumption per pump during a selected period.
The figures on the right side of the graph indicates a scaling of the level based on minimum and
maximum scaling of the level and current measurement.
The second graph (from the top), is the nominal value for the pumps. Hereby scaling their graphical
value.
Nominal graph The nominal Graph is grey.
When a pump reaches its nominal current the graph will be on this line.
Alle pumper skaleres op mod denne linje. Derfor vises der alligevel grafer for pumper som kører med
forskellige nominalstrømme. Hermed undgår man at pumper med stærk afvigende nominalstrømme
falder væk fra denne graf.
Legend
Menu Item Default Description
Numeric indication of the values shown in the graph window
Level Blue Level value; the actual level of the well.
Current P1 Green Current value Pump 1, actual value and nominal value.
Current P2 Red Current value Pump 2, actual value and nominal value.
Time span selection
Menu Item Description
3 Hours Time span of 3 hours
Day Time span of 24 hours
Week Time span of one week
