HMI display
19

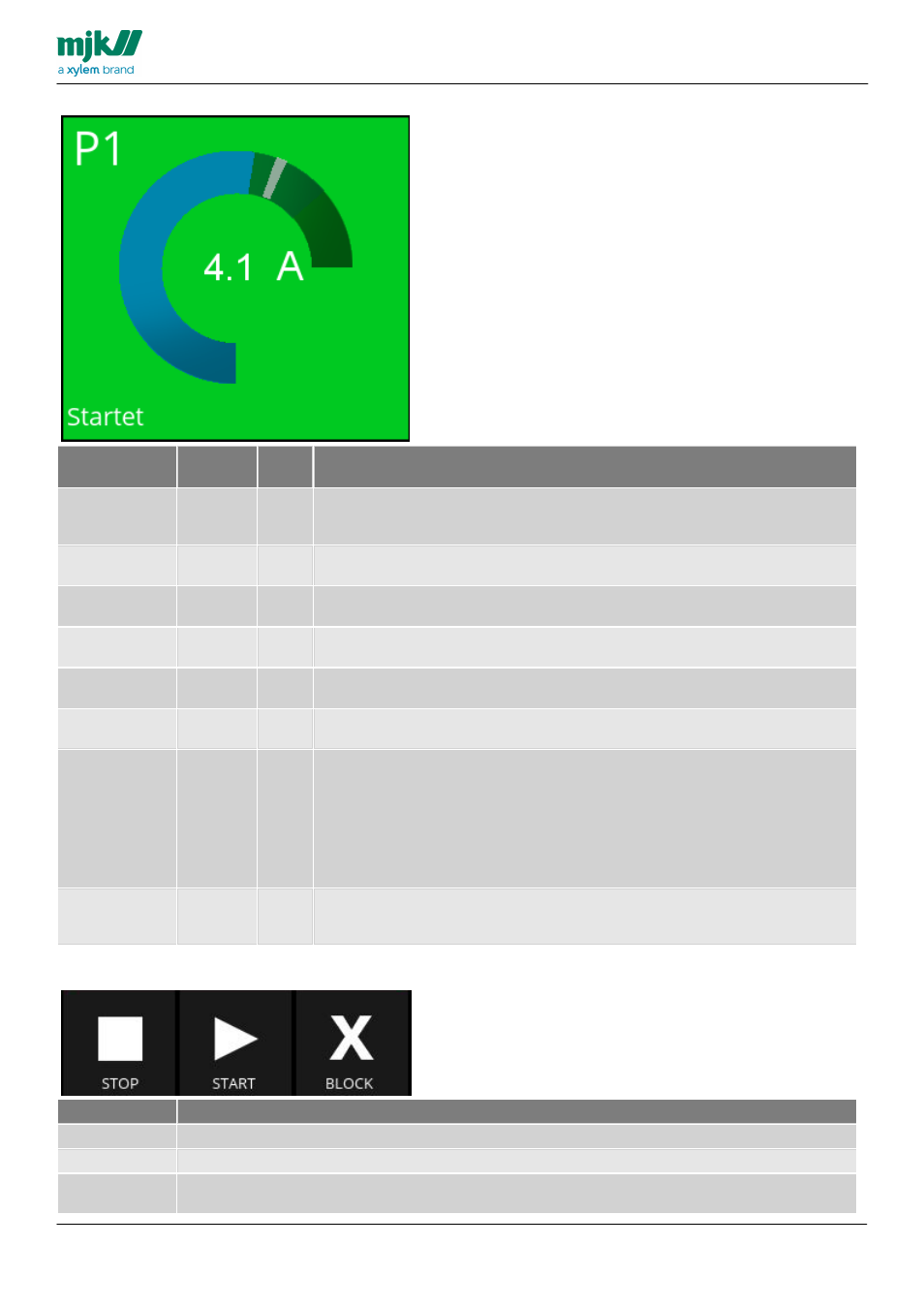

Pump element
Menu Item Text Defaul
t Description
Background
color The color of the background in this element will switch depending on the
operating condition of the pump.
The colors are similar to the colors used in most SCADA systems.
Pump operating
condition Stopped Grey The pump is stopped
Pump operating
condition Not
operating Black The pump is blocked
Pump operating
condition Operating green The pump active (operating),
Pump operating
condition Error red Error on the pump
Pump operating
condition Blocked Blue The pump is blocked
Ampere meter Blue
Orang
e The Ampere meter illustrates the actual power consumption of the pump.
the green area is illustrating the safe range of 10% -/+ of the nominal current. This is
creating a simple visualization of the power consumption being acceptable.
If the acceptable range is exeeded the color will change from green to orange.
The grey line illustrates the acceptable range of nominal current, this value is
entered in SETPOINTS>Current
This will make it easy to evaluate if the actual power consumption is proportional to
the nominal current of the individual pump.
Ampere
numerical
Illustration A Numerical Ampere value of the powerconsumption of the individual pump.
Betjeningsknapper
Menu Item Description
Stop Stop the pump.
Start Start the pump
Block Block the pump. Press start to restart the pump.
When the pump is blocked, no alarms will be activated from the device to the SCADA system
