IV) Model 6308DT Modes
a) Main Display Mode
Turning ON the unit will always start in main display mode. This instrument is
designed to provide 3 distinct measurements:
1. Temperature - current temperature of the solution that is always displayed.
2. Dissolved Oxygen % - a measurement of oxygen in percent saturation.
3. Dissolved Oxygen ppm - a measurement of oxygen in ppm.

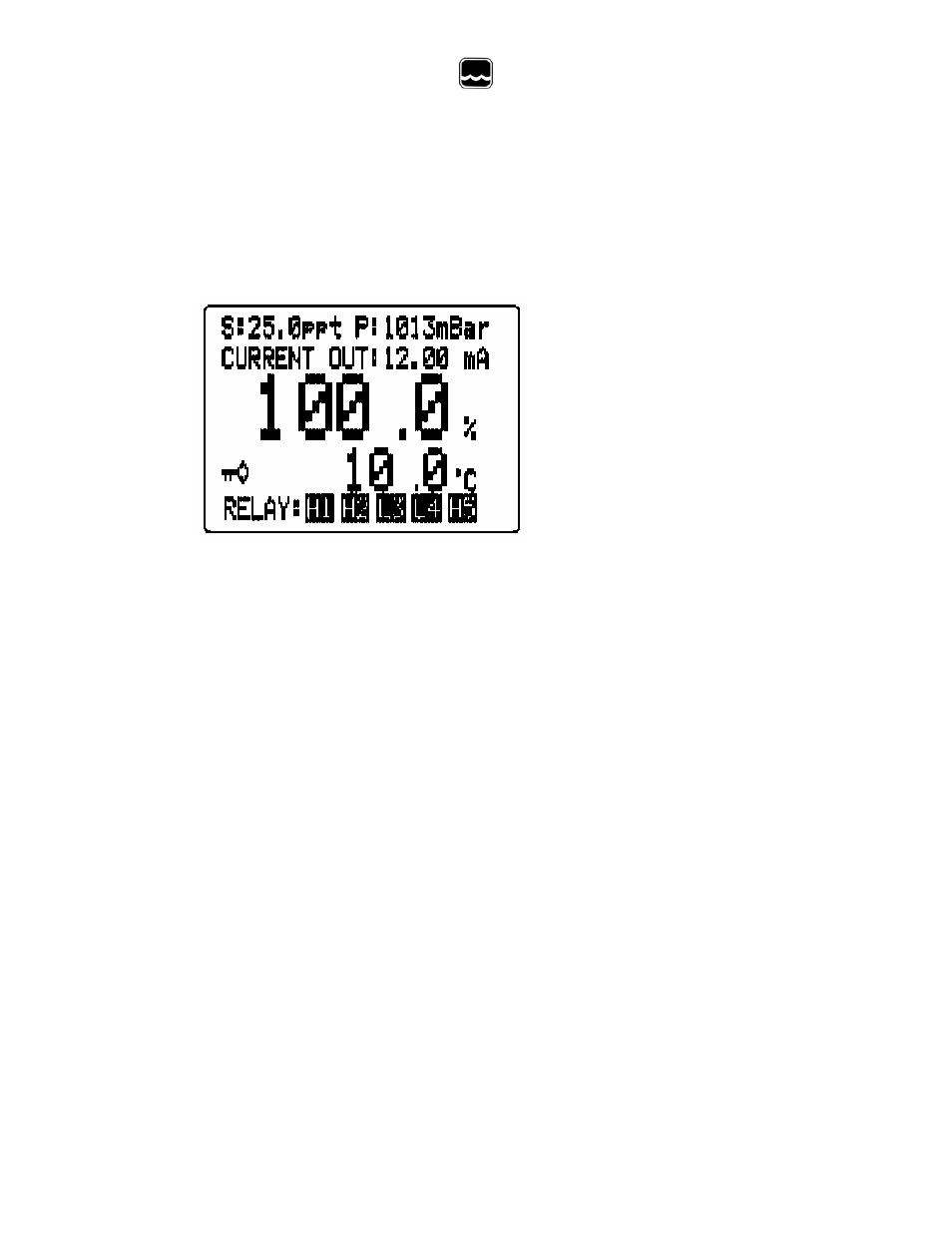

Temperature and DO (% or ppm) are always simultaneously displayed in the
graphic LCD screen in normal mode. You can select which DO unit to display by
pressing the [MODE/-] key.
b) Calibration/Setting Mode
Pressing the [CAL/VIEW] key for about 2 seconds during main display mode
will bring-up the first page of 6 pages of the Calibration/Setting mode. Pressing
[CAL/VIEW] key will switch to the next page until the last page, where pressing
[CAL/VIEW] again will return the user to main display mode.
Below is a simple flowchart showing the path of the [CAL/VIEW] key:
