3.2.2 Accessoires fournis
Æ
1 x HYDROVAR-Smart print
Æ
1 x Ecran unité
Æ
1 x Ecran-joint
Æ
1 x Couvercle
Æ
1 x Plastique couvercle
Æ
1 x Panneau avant (SCH 60.25)
Æ
1 x Panneau avant (SCH 60.35)
Æ
4 x Bague entretoise M4xM4x22 I/I
Æ
4 x Bague entretoise M4xM4x8 A/I
Æ
4 x Vis M3x10
Æ
4 x Vis M4x10
Æ
4 x Vis M4x6
Æ
8 x Rondelle de blocage M4

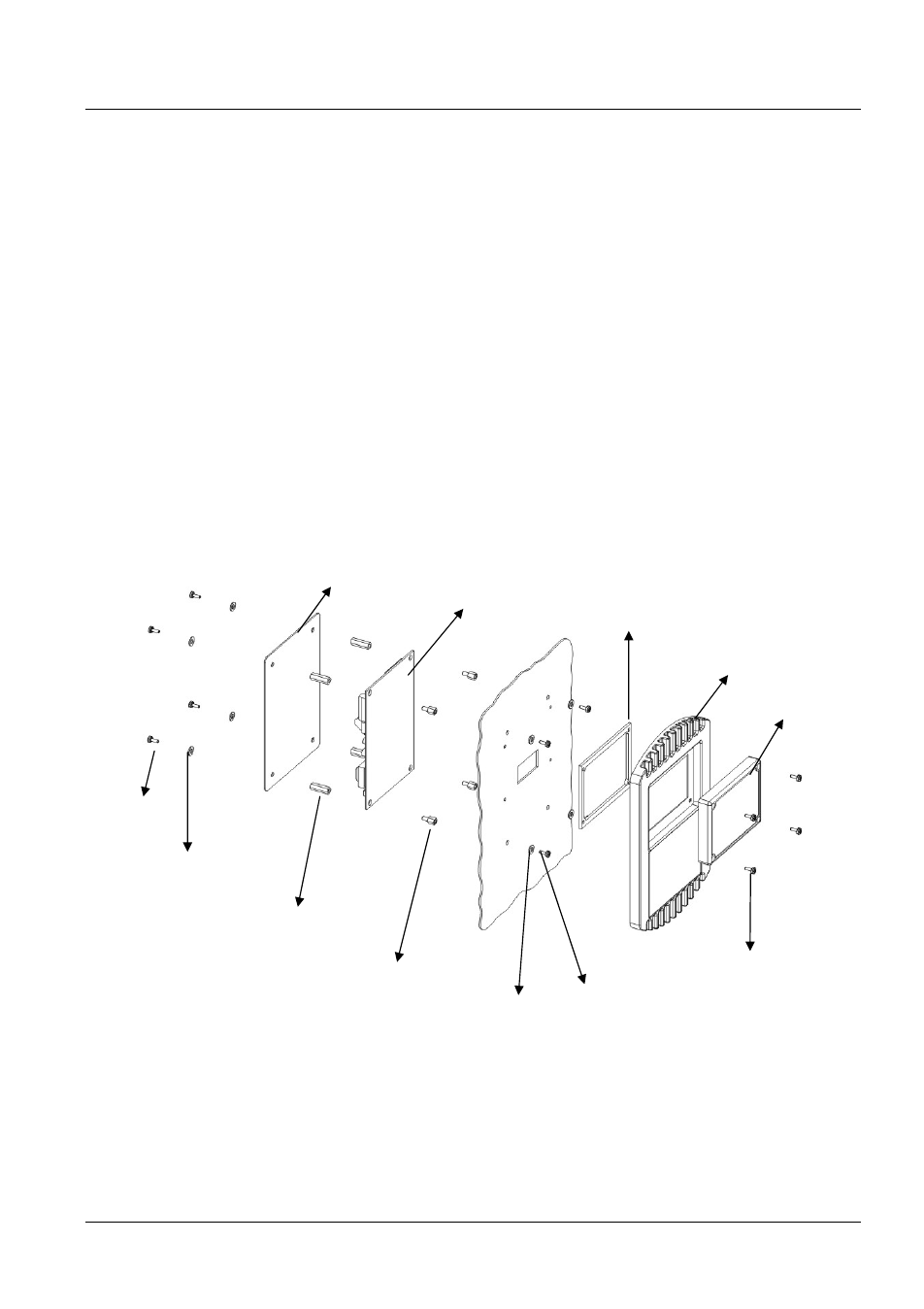

3.3 Vue éclatée
L'étiquette auto-adhésive SCH 60.25 (avec la partie découpée pour l'affichage) doit être
collée de manière à ce que les parties jaunes soient placées sur le haut des boutons-
poussoirs.
L'étiquette auto-adhésive SCH 60.35 doit être collée sous l'unité d'affichage.
Une illustration de l'emplacement correct de ces étiquettes est présentée sur la première
page de ce mode d'emploi !
M4x10
Rondelle de
blocage M4
Plastique couvercle
HYDROVAR-Smart
print
Ecran- joint
Couvercle
Ecran unité
M3x10
Bague entretoise M4xM4x22 I/I
Bague entretoise M4xM4x8
Rondelle de blocage M4
M4x6
