29
7.20.5 INTENSITÄT 2
INTENSITAET 2
+XX.X %
Die Intensität entspricht dem Maximalwert der
Verschiebung des 1. Sollwertes, wenn der
zusätzliche Analogeingang 20mA oder 10V beträgt.
Einstellbereich: -200% bis zu +200% der Normierung (= Sensorbereich)
Um das Untermenü zu verlassen, Ü länger als 3 Sek drücken und Sie wechseln zurück zu
S U B M E N U E
Offset

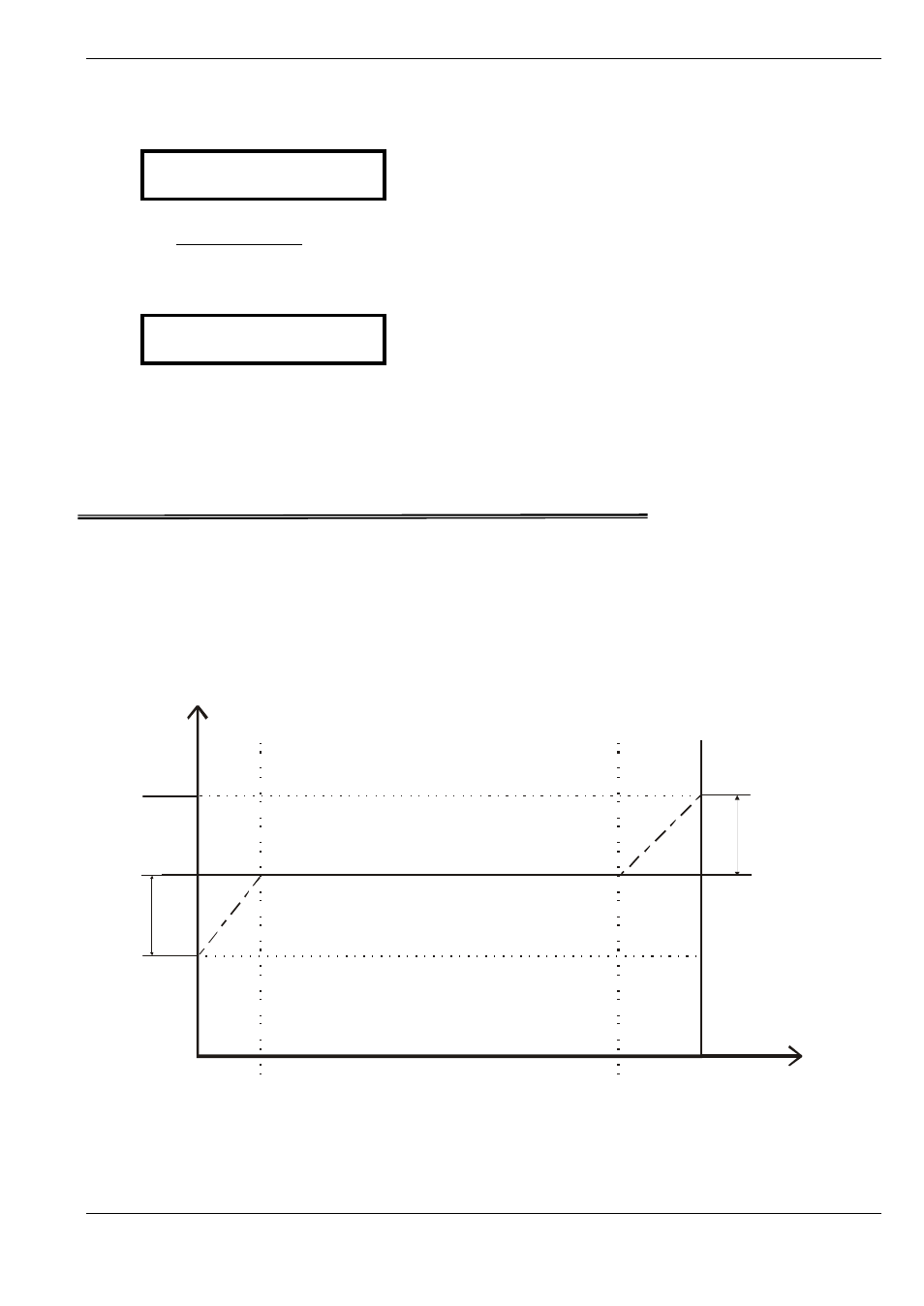

7.20.6 Beispiel für Offset-Berechnung des Sollwertes:
NORMIERUNG:
20mA
? 10 Bar
1. SOLLWERT:
5 Bar
SCHWELLE 1:
20% des zusätzlichen Analogeinganges
SCHWELLE 2:
80% des zusätzlichen Analogeinganges
INTENSITÄT 1:
-10%
? -1 bar (entsprechend der Normierung)
INTENSITÄT 2:
+30%
? +3 bar (entsprechend der Normierung)
-
+
+
-
Intensität 1
- 10%
Intensität 2
+30 %
Sollwert 1
5 bar
Zusätzlicher
Analogeingang
100%=20mA (10V)
0%=4mA (0V/2V)
Level 1
%
Level 2
%
Istwerteingang
4 bar
20 %
80 %
-
8 bar
An der Achse „Zusätzlicher Analogeingang“ müssen Sie den Wert des Parameters SCHWELLE 1
in % des Analogeinganges (=20%) eintragen.
Dieses für den Wert des Parameters SCHWELLE 2 (=80%) wiederholen.
