OPERATION

The circulators wired to the ZoneTrol pump controller are con-

trolled by a low voltage thermostat or any other low voltage

controller having a SPST switch. The relays provide intermedi-

ate switching to permit line voltage to the circulators. The

ZoneTrol will operate with most digital/programmable ther-

mostats. The isolated end switch relay (terminals XX) has a full

10 amp rating. The resetable fuse protects the ZoneTrol from

overloading conditions.
The following sequence occurs when the ZT-4 has a call for

heat:

1. Isolated switch relay closes.

2. XX switch is closed.

3. XX indicator light turns on.

4. Control relay closes. (ZC and ZR connection required either

by factory installed jumper or through aquastat)

OPERATION

5. ZC indicator light turns on.

6. Zone circulator starts.

7. Respective zone light indicator turns on.
If priority switch is in ON position:

1. Zone 1 becomes priority zone.

2. When priority zone 1 circulator is actuated, the other circu-

lators will not operate.

3. The ZoneTrol has a 30 minute timer on the priority zone.

After 30 minutes of continuous operation, the priority zone

will default to allow all other zone to operate in order to pre-

vent house freeze up. The timer is reset after the priority

zone is satisfied.

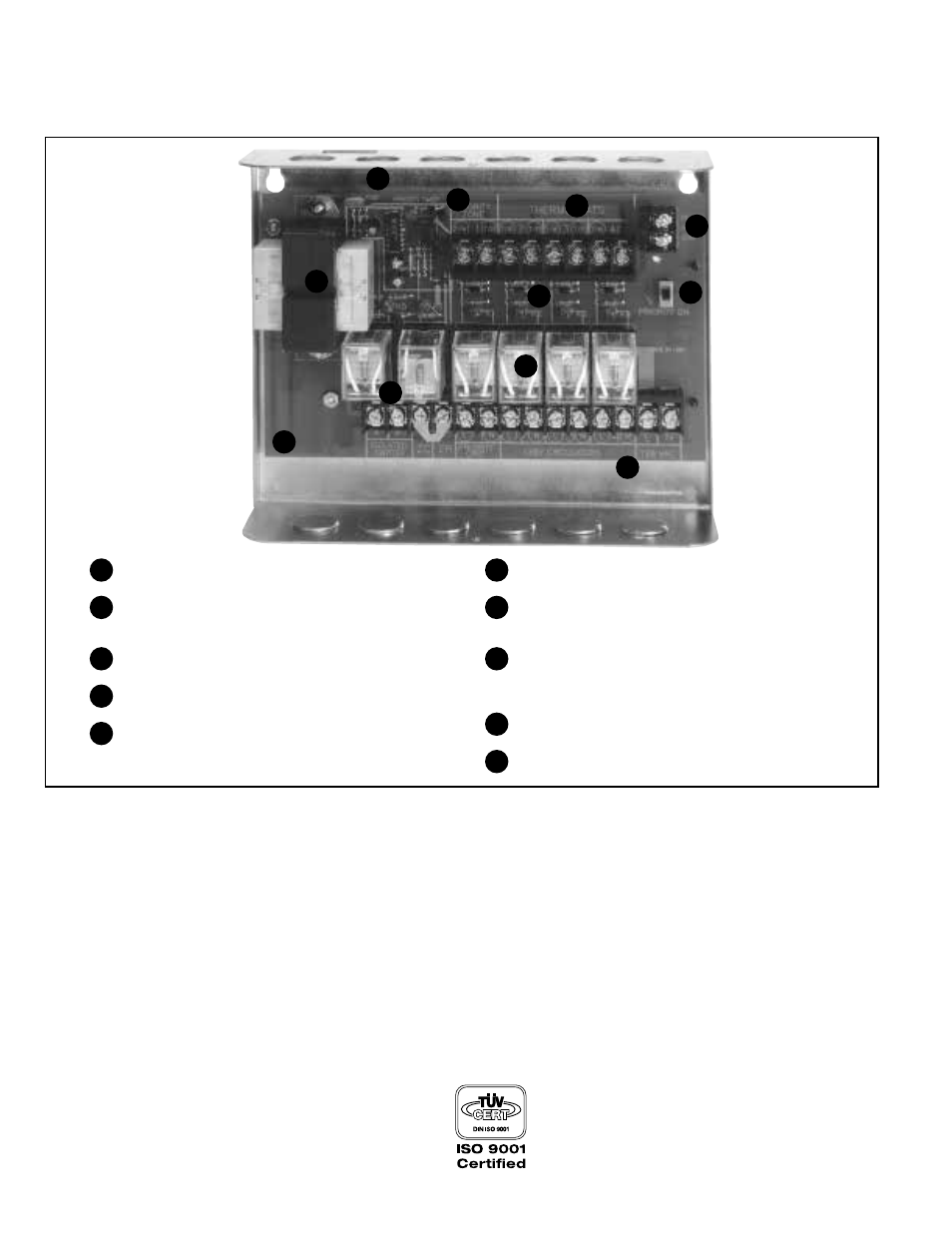

100% factory tested –

limited 5 year warranty.

Separate XX isolated end switch and ZC/ZR

relays protect boiler aquastat. Can be used with

“tankless coil” or “cold start” applications.

Replaceable, standard “ice cube” type relays allow

up to 10 amps,

1

/

3

HP per individual zone.

Powerful 30 VA transformer operates

up to 6 zones.

Switchable priority adds versatility and ease

of installation.

30 minute built-in safety priority timer helps prevent

house freeze up – no additional plug-in cards required.

Automatically resetable fuse protects controller

from overload – Eliminate “no heat” call backs due

to blown fuse.

LED dianostic lights for easy trouble shooting are

installed internally for heating professional’s use –

no more calls from curious homeowners inquiring

about flashing lights.

24 volt I/O terminal for connection of 3 wire thermostats

or field replacement of transformer.

Clearly marked terminals and plenty of clearance make

for easy, fast hook-up.

10

9

8

7

6

5

4

3

2

1

1

2

3

4

5

6

7

8

9

10

10
