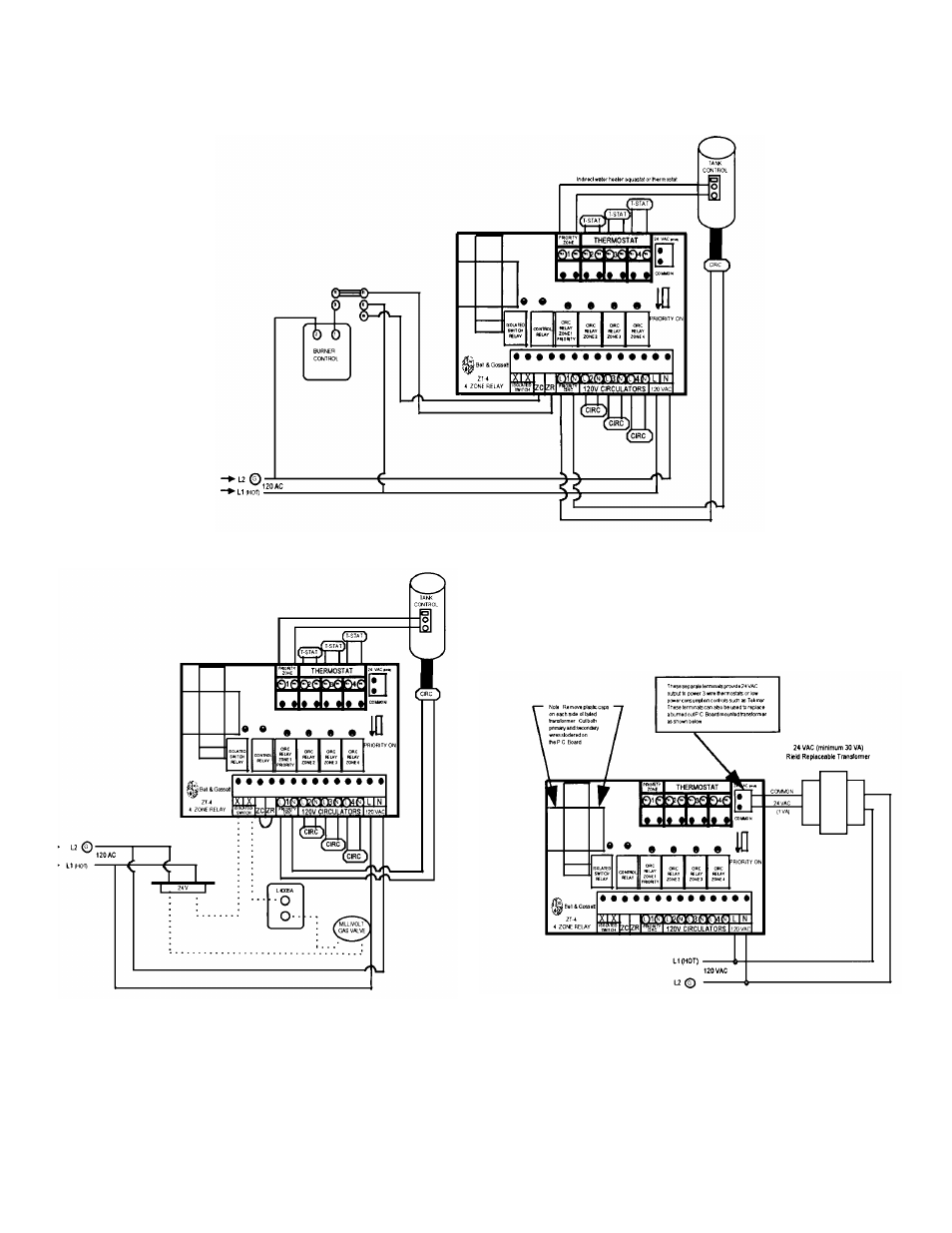

FIGURE 5
(Cold Start Boiler)
ZT-4 to MH L8148

5

FIGURE 4
(Tankless Coil Boiler)
ZT-4 to MH L60081A, L4006A, L6006A

FIGURE 6
ZT-4 to Field Replaceable Transformer
