MAINTENANCE
SCHEDULE:
• Replace Dura-Stat thermostatic module every 4 years.
B
H
A
B
B
F

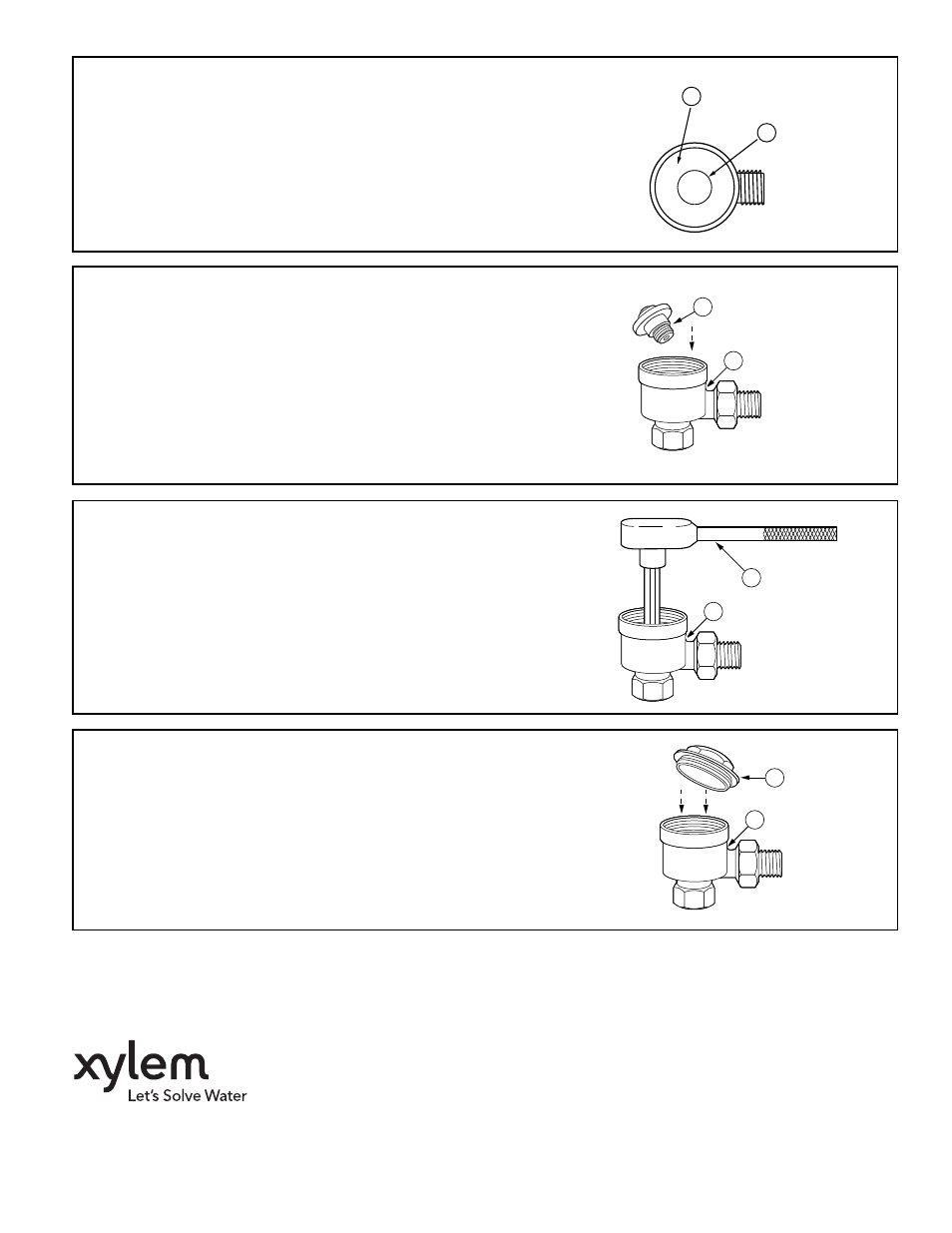

5. Using a 3/4” (19mm) socket wrench (H),
tighten the Dura-Stat module approximately
12 lbf•ft (16 N•m).
6a. Reinstall and tighten the trap cover (A)
on the body (B).
b. Slowly open the steam supply valve.
3. Using a scraper, remove any scale or
debris inside the trap body (B) especially
around the seat area (F). Do not scratch
gasket surface area.
G
B
4. Screw the new Dura-Stat ® thermostatic
module (G) into the threaded port
inside the trap body.
